SKU: EXPE211N-SNR

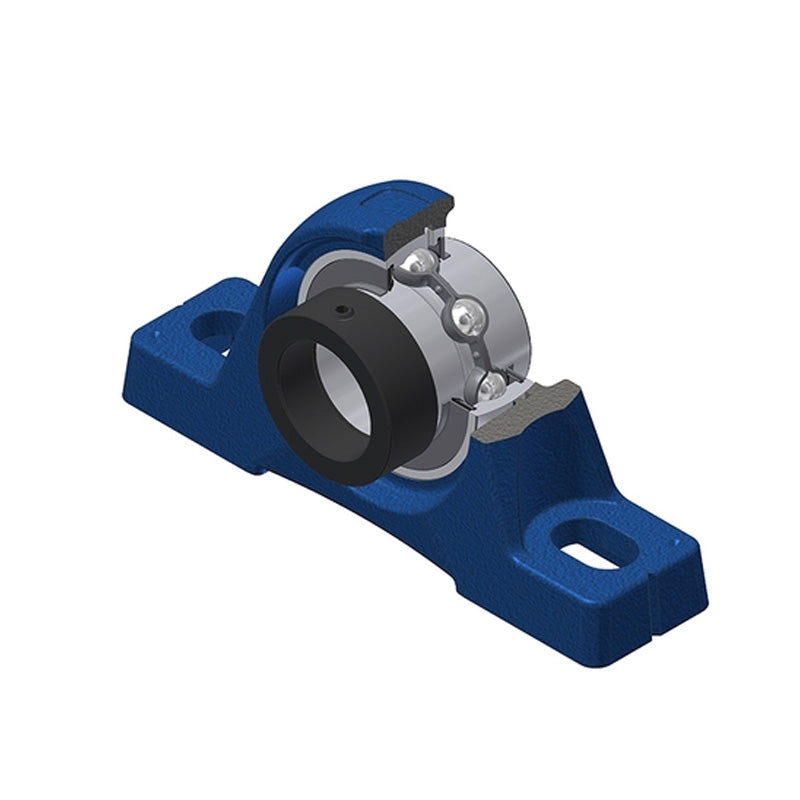

SNR EXPE211N Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 55mm Eccentric Collar Insert - Allow 2-3 Days

SNR EXPE211N Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 55mm Eccentric Collar Insert - Allow 2-3 Days
Regular price $132.48 ex VAT
Regular price Sale price $132.48 ex VAT
Sale Sold out

In stock

Price Break
3+ $98.69
4+ $94.71
9+ $92.71
19+ $89.72
49+ $87.73
99+ $82.74
499+ $69.78
999+ $0.00
1999+ $0.00
2999+ $0.00
4999+ $0.00
Quantity

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Dimensions
Shaft diameter 55mm
A 60mm
A1 35mm
B 55.4mm
d1 74.5mm
H 63.5mm
H1 22.5mm
H2 124.5mm
J 176mm
L 222mm
L1 68mm
N 18mm
N1 30mm
S 27.7mm
G R1/8
--- Load rating
Dynamic load C 43.55 kN
Static load C0 29.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 22 Nm
Mass 3.69 kg
