SKU: EXPE213N-SNR

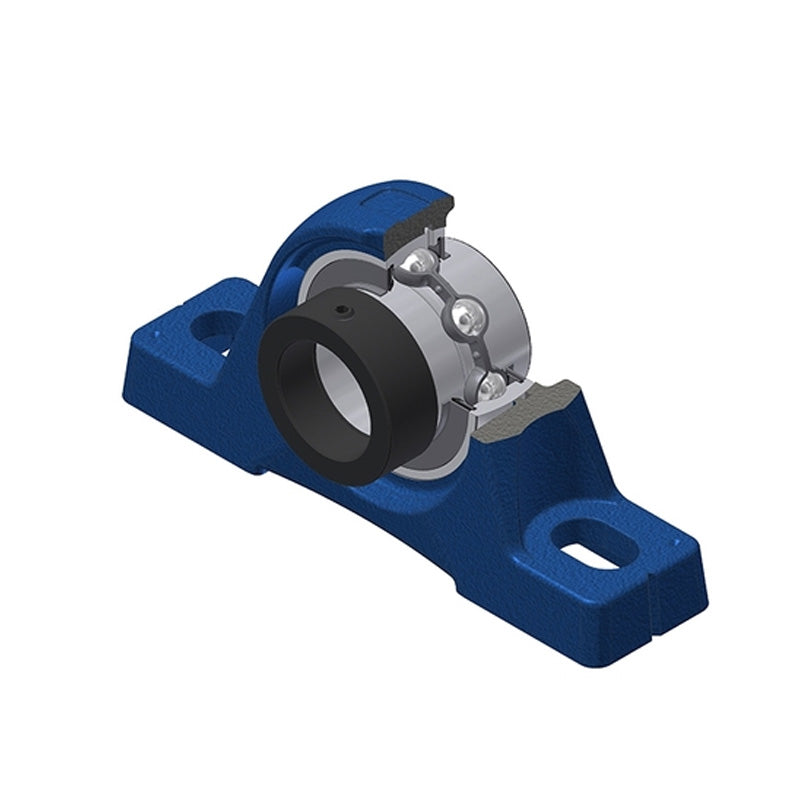

SNR EXPE213N Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 65mm Eccentric Collar Insert - Allow 2-3 Days

SNR EXPE213N Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 65mm Eccentric Collar Insert - Allow 2-3 Days
Regular price $206.18 ex VAT
Regular price Sale price $206.18 ex VAT
Sale Sold out

In stock

Price Break
3+ $153.60
4+ $147.39
9+ $144.29
19+ $139.64
49+ $136.53
99+ $128.77
499+ $108.61
999+ $0.00
1999+ $0.00
2999+ $0.00
4999+ $0.00
Quantity

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Dimensions
Shaft diameter 65mm
A 65mm
A1 44mm
B 68.2mm
d1 86mm
H 79.4mm
H1 27.5mm
H2 156mm
J 203mm
L 260mm
L1 77mm
N 22mm
N1 28mm
S 34.1mm
G R1/8
--- Load rating
Dynamic load C 57.2 kN
Static load C0 40 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 22 Nm
Mass 6.71 kg
