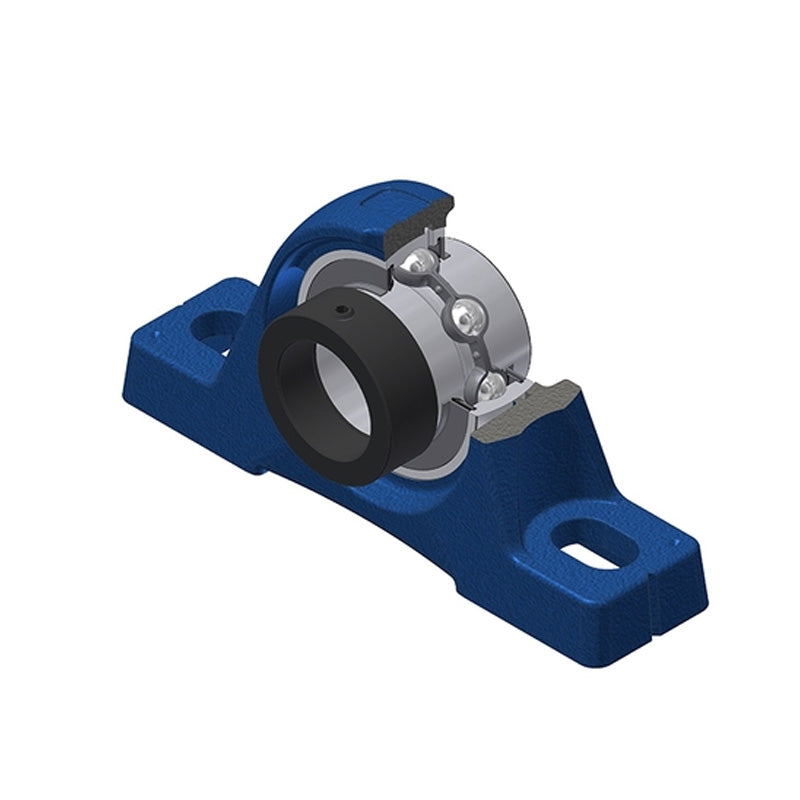

• SNR EXPE216 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 80mm Eccentric Collar Insert - Allow 2-3 Days
  • SNR
1 2

SKU: EXPE216-SNR

SNR EXPE216 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 80mm Eccentric Collar Insert - Allow 2-3 Days

SNR EXPE216 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 80mm Eccentric Collar Insert - Allow 2-3 Days
$204.91 ex VAT
$204.91 ex VAT
Sale Sold out

In stock

Price Break
3+ $137.26
4+ $129.55
9+ $128.01
19+ $126.46
49+ $124.92
99+ $123.38
499+ $115.67
999+ $114.13
1999+ $112.58
2999+ $111.04
4999+ $107.96

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
SNR - High Quality
Inside Diameter:
80mm
Style:
EXPE
Bolt Hole Centres:
232mm
Technical
--- Dimensions
Shaft diameter 80mm
A 78mm
A1 55mm
B 74.6mm
d1 110mm
H 89mm
H1 30mm
H2 175mm
J 232mm
L 290mm
L1 90mm
N 26mm
N1 34mm
S 37.3mm
G R1/8
--- Load rating
Dynamic load C 72.5 kN
Static load C0 54.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 33 Nm
Mass 9.42 kg
