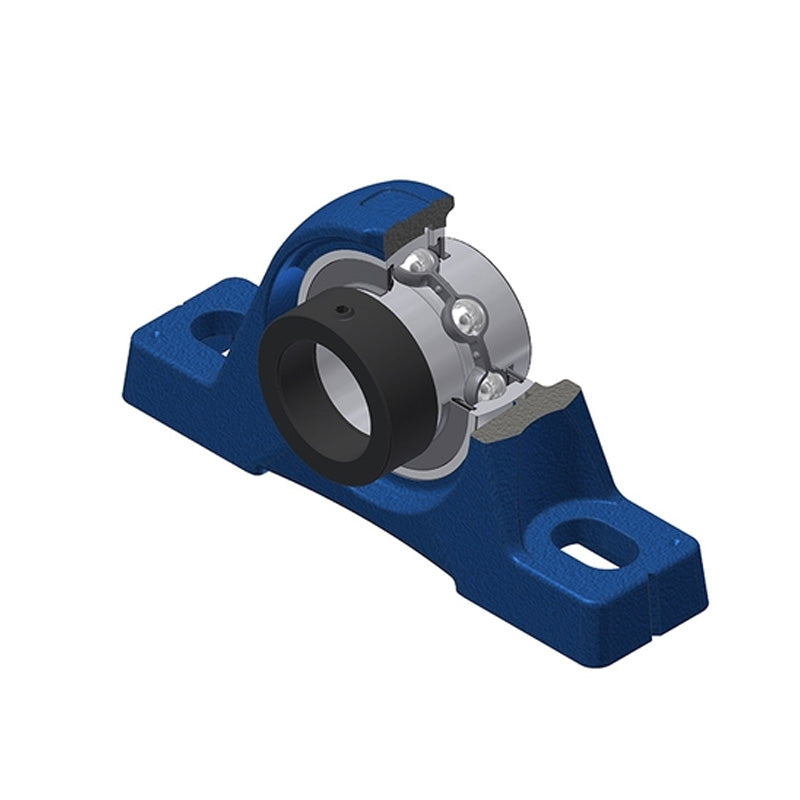

• SNR EXPG209 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with Eccentric Collar Insert 45mm Bore - Allow 2-3 Days
1 1

SKU: EXPG209-SNR

SNR EXPG209 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with Eccentric Collar Insert 45mm Bore - Allow 2-3 Days

SNR EXPG209 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with Eccentric Collar Insert 45mm Bore - Allow 2-3 Days
$88.31 ex VAT
$88.31 ex VAT
Sale Sold out

In stock

Price Break
3+ $65.79
4+ $63.13
9+ $61.80
19+ $59.81
49+ $58.48
99+ $55.15
499+ $46.52
999+ $0.00
1999+ $0.00
2999+ $0.00
4999+ $0.00

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
EXPG200 Series Cast Iron Small Footprint Pillow Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the threaded base housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required.
Benefits: Cost-effective bearing/housing assembly, re-lubricatable, replaceable insert, grub screw fixing, small footprint
Brand / Quality:
SNR - High Quality
Inside Diameter:
45mm
Style:
EXPG
Bolt Hole Centres:
85mm
Technical
--- Dimensions
Shaft diameter 45mm
A 54mm
A1 33mm
B 42.8mm
d1 62mm
E 22mm
H 53.9mm
H1 20mm
H2 106mm
J 85mm
L 120mm
L1 40mm
N M12
S 21.4mm
G M6x1
--- Load rating
Dynamic load C 31.85 kN
Static load C0 20.8 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 11.5 Nm
Mass 2.37 kg
