SKU: EXPLE208-SNR

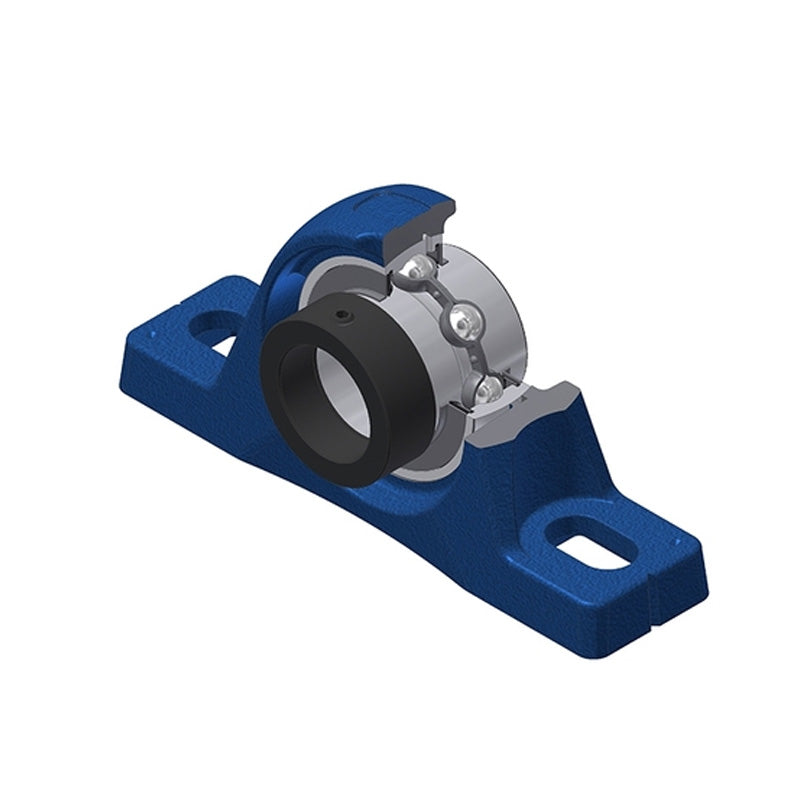

SNR EXPLE208 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 40mm Eccentric Collar Insert - Allow 2-3 Days

SNR EXPLE208 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 40mm Eccentric Collar Insert - Allow 2-3 Days
Regular price $73.51 ex VAT
Regular price Sale price $73.51 ex VAT
Sale Sold out

In stock

Price Break
3+ $54.77
4+ $52.55
9+ $51.45
19+ $49.79
49+ $48.68
99+ $45.92
499+ $38.72
999+ $0.00
1999+ $0.00
2999+ $0.00
4999+ $0.00
Quantity

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Dimensions
Shaft diameter d 40mm
A 51mm
A1 34.5mm
B 42.8mm
d1 58mm
H 49.2mm
H1 18.5mm
H2 98.5mm
J 137.5mm
L 180.5mm
N 14mm
N1 24.5mm
S 21.4mm
G M6x1
--- Load rating
Dynamic load C 29.6 kN
Static load C0 18.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 11.5 Nm
Mass 2.08 kg
