SKU: EXPLE212-SNR

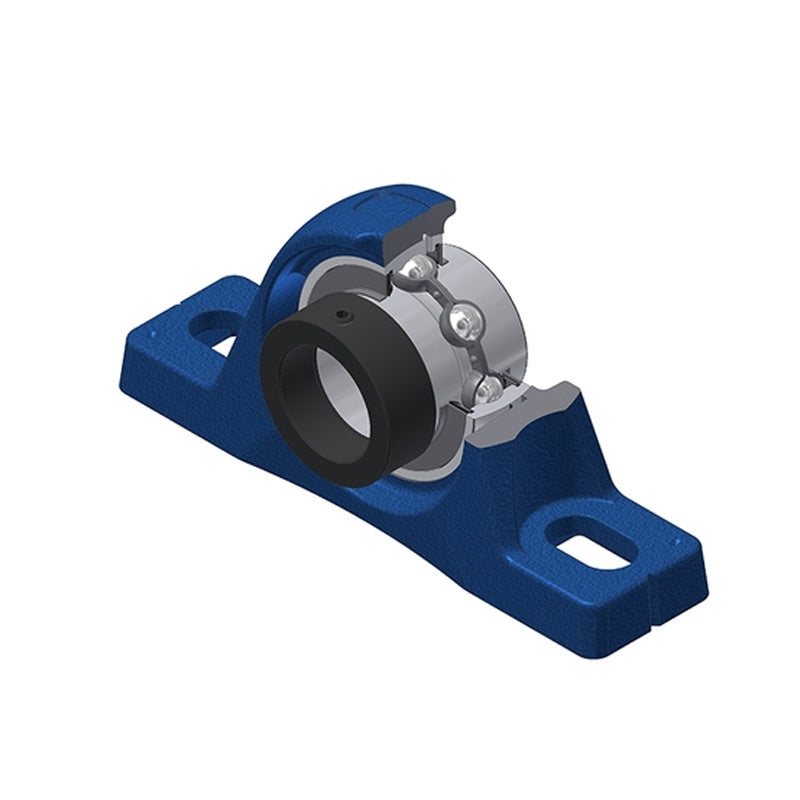

SNR EXPLE212 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 60mm Eccentric Collar Insert - Allow 2-3 Days
SNR EXPLE212 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 60mm Eccentric Collar Insert - Allow 2-3 Days
Regular price
$147.22
ex VAT
Regular price
Sale price
$147.22
ex VAT
In stock
Price Break
3+
$109.67
4+
$105.24
9+
$103.03
19+
$99.70
49+
$97.49
99+
$91.95
499+
$77.55
999+
$0.00
1999+
$0.00
2999+
$0.00
4999+
$0.00
Quantity
Couldn't load pickup availability
Share this product
Description
Description
EXPLE200 Series 2 Bolt Cast Iron Pillow Block Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 60mm
- Style:
- EXPLE
- Bolt Hole Centres:
- 193.7mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 60mm |
| A | 79.4mm |
| A1 | 50.8mm |
| B | 61.8mm |
| d1 | 82mm |
| H | 68.3mm |
| H1 | 28.6mm |
| H2 | 138.1mm |
| J | 193.7mm |
| L | 245mm |
| N | 18mm |
| N1 | 29.1mm |
| S | 30.9mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 52.5 kN |
| Static load C0 | 32.8 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 22 Nm |
| Mass | 6.17 kg |
