• SNR EXSP204 Metric Cast Iron Tensioner Unit with 20mm Bore Eccentric Collar Insert - Allow 2-3 Days
  • SNR
1 2

SKU: EXSP204-SNR

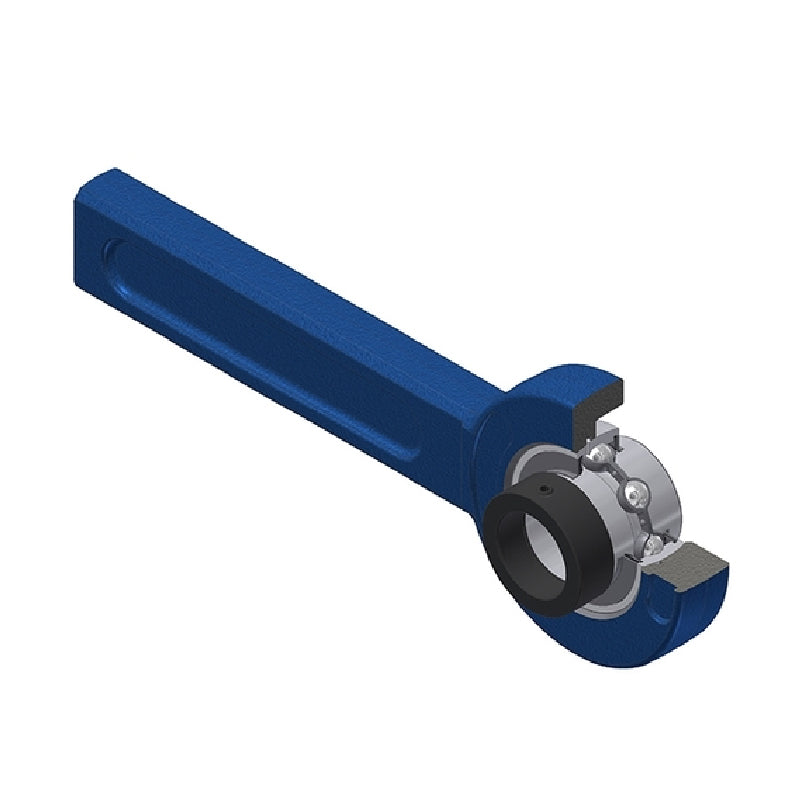

SNR EXSP204 Metric Cast Iron Tensioner Unit with 20mm Bore Eccentric Collar Insert - Allow 2-3 Days

SNR EXSP204 Metric Cast Iron Tensioner Unit with 20mm Bore Eccentric Collar Insert - Allow 2-3 Days
$51.23 ex VAT
$51.23 ex VAT
Sale Sold out

In stock

Price Break
3+ $34.31
4+ $32.39
9+ $32.00
19+ $31.62
49+ $31.23
99+ $30.84
499+ $28.92
999+ $28.53
1999+ $28.15
2999+ $27.76
4999+ $26.99

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
SNR - High Quality
Inside Diameter:
20mm
Style:
EXSP
Technical

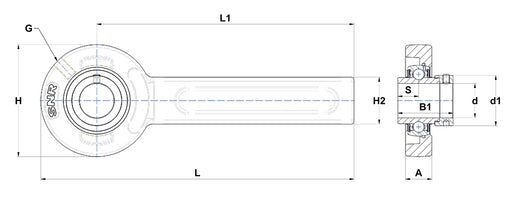

--- Dimensions
Shaft diameter 20mm
A 21mm
B1 43.5mm
d1 32.4mm
H 78mm
H2 41mm
L 264mm
L1 225mm
S 17mm
G R1/8″
--- Load rating
Dynamic load C 12.8 kN
Static load C0 6.65 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Stretcher frame 2 SPR11
Stretcher frame 3 SPR12
Stretcher frame 4 SPR14
Mass 1.62 kg
