SKU: EXSP207-SNR

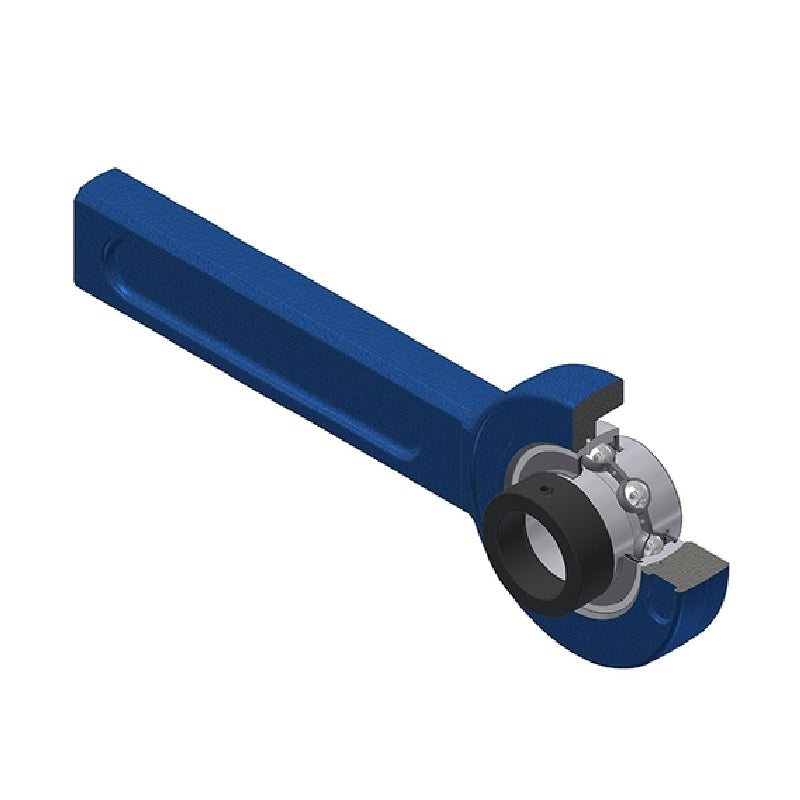

SNR EXSP207 Metric Cast Iron Tensioner Unit with 35mm Bore Eccentric Collar Insert - Allow 2-3 Days

SNR EXSP207 Metric Cast Iron Tensioner Unit with 35mm Bore Eccentric Collar Insert - Allow 2-3 Days
Regular price $103.02 ex VAT
Regular price Sale price $103.02 ex VAT
Sale Sold out

In stock

Price Break
3+ $76.74
4+ $73.64
9+ $72.09
19+ $69.77
49+ $68.22
99+ $64.34
499+ $54.26
999+ $0.00
1999+ $0.00
2999+ $0.00
4999+ $0.00
Quantity

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Dimensions
Shaft diameter 35mm
A 21mm
B1 51.1mm
d1 51.1mm
H 98mm
H2 41mm
L 274mm
L1 225mm
S 18.8mm
G R1/8″
--- Load rating
Dynamic load C 25.7 kN
Static load C0 15.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Stretcher frame 2 SPR11
Stretcher frame 3 SPR12
Stretcher frame 4 SPR14
Mass 2.06 kg
