SKU: EXT204N-SNR

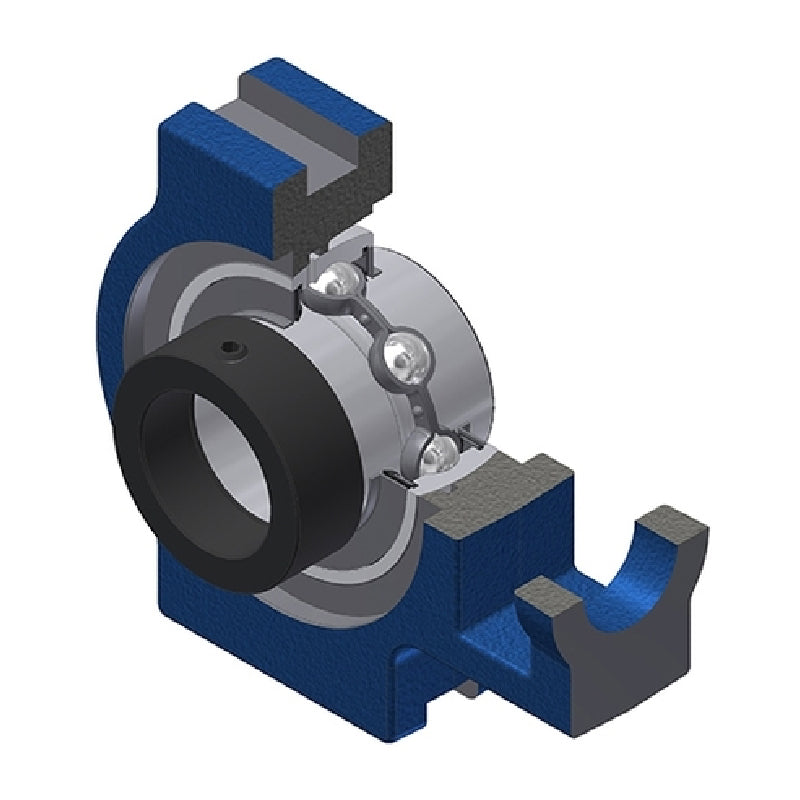

SNR EXT204N Metric Cast Iron Take Up Unit with Eccentric Collar Insert 20mm Bore - Allow 2-3 Days

SNR EXT204N Metric Cast Iron Take Up Unit with Eccentric Collar Insert 20mm Bore - Allow 2-3 Days
Regular price $147.31 ex VAT
Regular price Sale price $147.31 ex VAT
Sale Sold out

In stock

Price Break
3+ $109.74
4+ $105.31
9+ $103.09
19+ $99.77
49+ $97.55
99+ $92.01
499+ $77.60
999+ $0.00
1999+ $0.00
2999+ $0.00
4999+ $0.00
Quantity

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Dimensions
Shaft diameter d 20mm
A 32mm
A1 12mm
A2 21mm
B1 43.5mm
d1 32.4mm
H 89mm
H1 76mm
H2 51mm
L 94mm
L1 61mm
L2 10mm
L3 51mm
N 19mm
N1 16mm
N2 32mm
S 17mm
G M6x1
--- Load rating
Dynamic load C 12.8 kN
Static load C0 6.65 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Mass 0.82 kg
