SKU: EXT206N-SNR

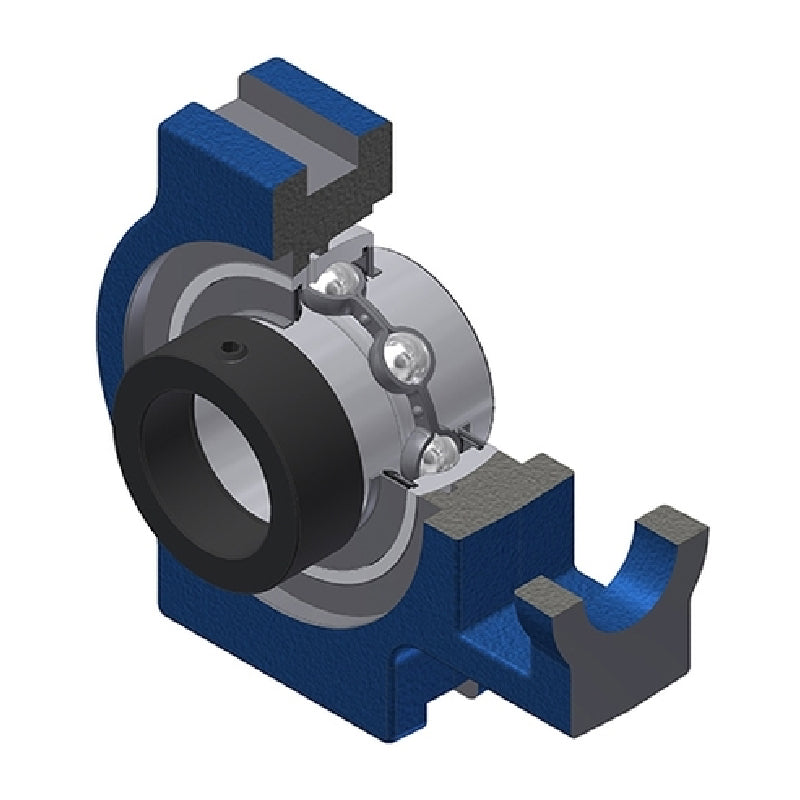

SNR EXT206N Metric Cast Iron Take Up Unit with Eccentric Collar Insert 30mm Bore - Allow 2-3 Days

SNR EXT206N Metric Cast Iron Take Up Unit with Eccentric Collar Insert 30mm Bore - Allow 2-3 Days
Regular price $73.55 ex VAT
Regular price Sale price $73.55 ex VAT
Sale Sold out

In stock

Price Break
3+ $54.80
4+ $52.58
9+ $51.48
19+ $49.82
49+ $48.71
99+ $45.94
499+ $38.75
999+ $0.00
1999+ $0.00
2999+ $0.00
4999+ $0.00
Quantity

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Dimensions
Shaft diameter d 30mm
A 37mm
A1 12mm
A2 28mm
B1 48.3mm
d1 44.1mm
H 102mm
H1 89mm
H2 56mm
L 113mm
L1 70mm
L2 10mm
L3 57mm
N 22mm
N1 16mm
N2 37mm
S 18.2mm
G M6x1
--- Load rating
Dynamic load C 19.5 kN
Static load C0 11.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Mass 1.31 kg
