SKU: EXT208N-SNR

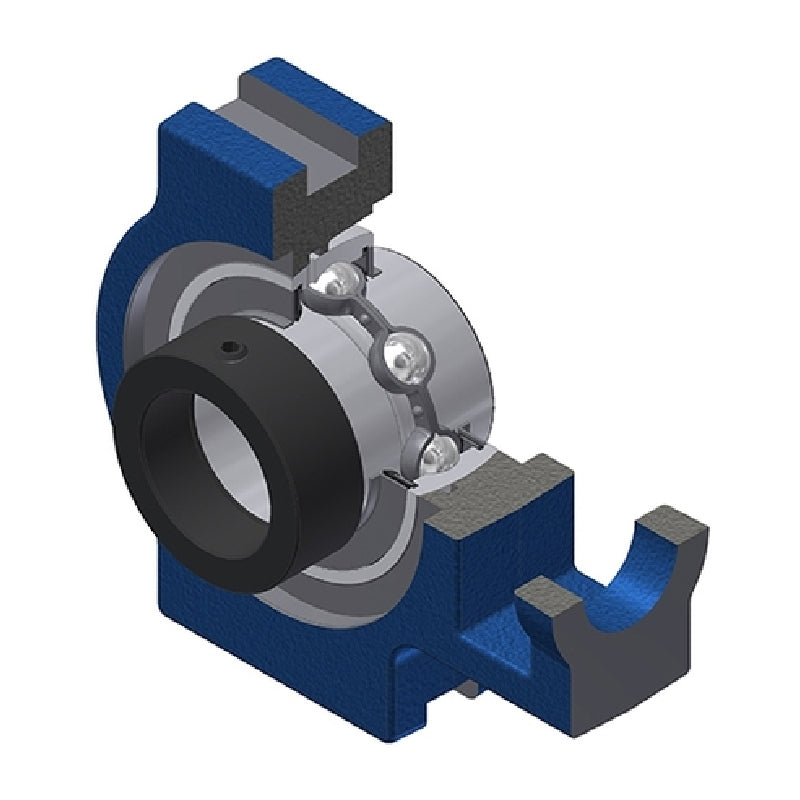

SNR EXT208N Metric Cast Iron Take Up Unit with Eccentric Collar Insert 40mm Bore - Allow 2-3 Days

SNR EXT208N Metric Cast Iron Take Up Unit with Eccentric Collar Insert 40mm Bore - Allow 2-3 Days
Regular price $88.29 ex VAT
Regular price Sale price $88.29 ex VAT
Sale Sold out

In stock

Price Break
3+ $65.78
4+ $63.12
9+ $61.79
19+ $59.80
49+ $58.47
99+ $55.15
499+ $46.51
999+ $0.00
1999+ $0.00
2999+ $0.00
4999+ $0.00
Quantity

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Dimensions
Shaft diameter d 40mm
A 49mm
A1 16mm
A2 33mm
B1 56.3mm
d1 58mm
H 114mm
H1 102mm
H2 83mm
L 144mm
L1 88mm
L2 16mm
L3 83mm
N 29mm
N1 19mm
N2 49mm
S 21.4mm
G M6x1
--- Load rating
Dynamic load C 29.6 kN
Static load C0 18.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Mass 2.48 kg
