SKU: EXT209N-SNR

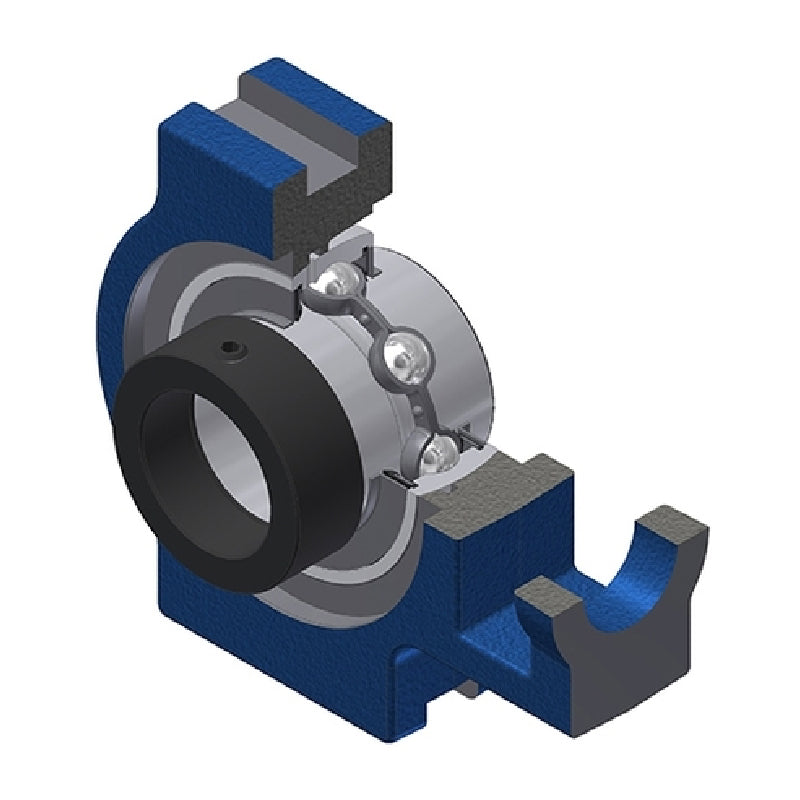

SNR EXT209N Metric Cast Iron Take Up Unit with Eccentric Collar Insert 45mm Bore - Allow 2-3 Days
SNR EXT209N Metric Cast Iron Take Up Unit with Eccentric Collar Insert 45mm Bore - Allow 2-3 Days
Regular price
$103.02
ex VAT
Regular price
Sale price
$103.02
ex VAT
In stock
Price Break
3+
$76.74
4+
$73.64
9+
$72.09
19+
$69.77
49+
$68.22
99+
$64.34
499+
$54.26
999+
$0.00
1999+
$0.00
2999+
$0.00
4999+
$0.00
Quantity
Couldn't load pickup availability
Share this product
Description
Description
EXT200 Series Cast Iron Take Up Units: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 45mm
- Style:
- EXT
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 45mm |
| A | 49mm |
| A1 | 16mm |
| A2 | 35mm |
| B1 | 56.3mm |
| d1 | 62mm |
| H | 117mm |
| H1 | 102mm |
| H2 | 83mm |
| L | 144mm |
| L1 | 87mm |
| L2 | 16mm |
| L3 | 83mm |
| N | 29mm |
| N1 | 19mm |
| N2 | 49mm |
| S | 21.4mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 31.85 kN |
| Static load C0 | 20.8 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Mass | 2.47 kg |
