SKU: EXT210L3-SNR

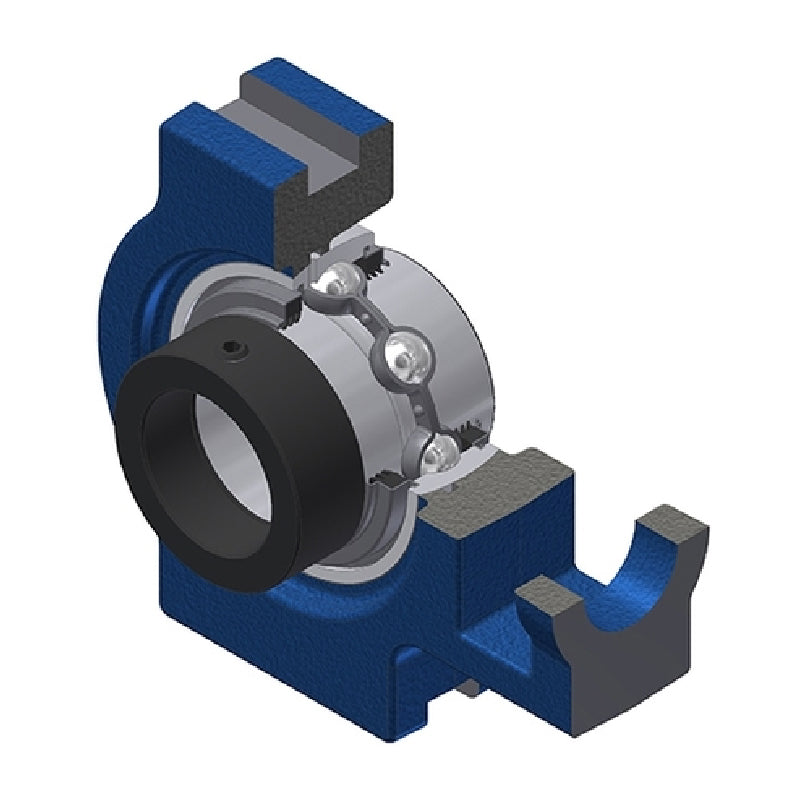

SNR EXT210L3 Metric Cast Iron Take Up Unit with Eccentric Collar Insert 50mm Bore with Triple Lip Seal - Allow 2-3 Days

SNR EXT210L3 Metric Cast Iron Take Up Unit with Eccentric Collar Insert 50mm Bore with Triple Lip Seal - Allow 2-3 Days
Regular price $132.48 ex VAT
Regular price Sale price $132.48 ex VAT
Sale Sold out

In stock

Price Break
3+ $98.69
4+ $94.71
9+ $92.71
19+ $89.72
49+ $87.73
99+ $82.74
499+ $69.78
999+ $0.00
1999+ $0.00
2999+ $0.00
4999+ $0.00
Quantity

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical

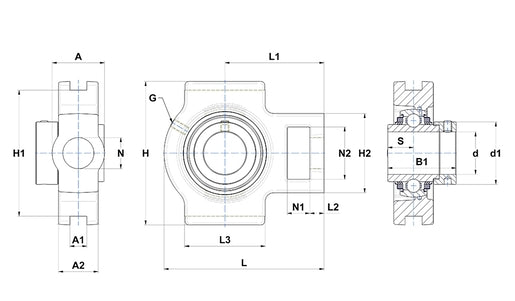

--- Dimensions
Shaft diameter d 50mm
A 49mm
A1 16mm
A2 37mm
B1 62.7mm
d1 67.2mm
H 117mm
H1 102mm
H2 83mm
L 149mm
L1 90mm
L2 16mm
L3 86mm
N 29mm
N1 19mm
N2 49mm
S 24.6mm
G M6x1
--- Load rating
Dynamic load C 35.1 kN
Static load C0 23.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Mass 2.71 kg
