SKU: EXT212N-SNR

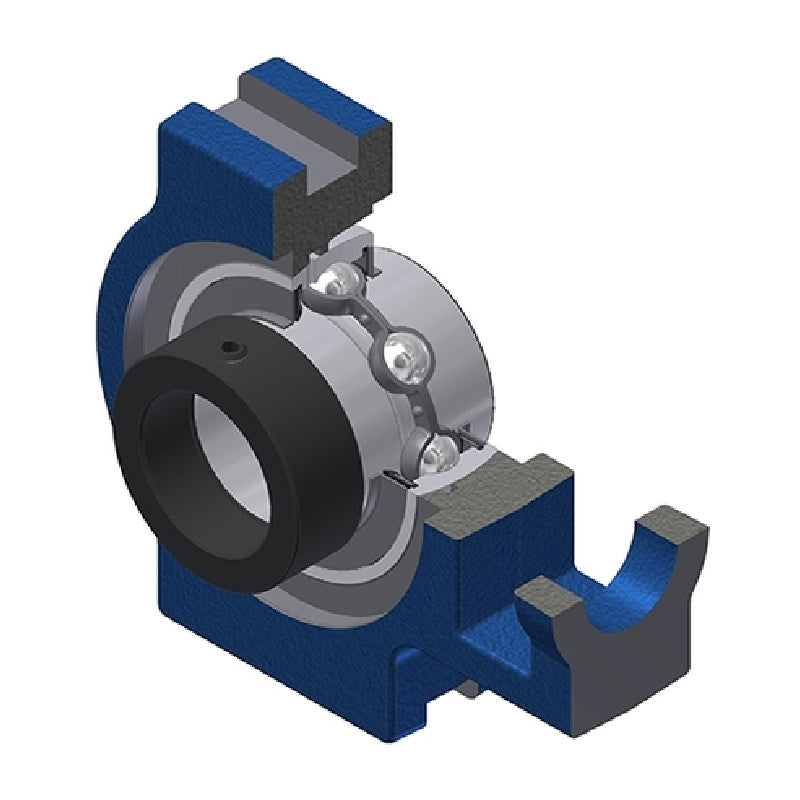

SNR EXT212N Metric Cast Iron Take Up Unit with Eccentric Collar Insert 60mm Bore - Allow 2-3 Days

SNR EXT212N Metric Cast Iron Take Up Unit with Eccentric Collar Insert 60mm Bore - Allow 2-3 Days
Regular price $176.65 ex VAT
Regular price Sale price $176.65 ex VAT
Sale Sold out

In stock

Price Break
3+ $131.60
4+ $126.28
9+ $123.62
19+ $119.64
49+ $116.98
99+ $110.33
499+ $93.05
999+ $0.00
1999+ $0.00
2999+ $0.00
4999+ $0.00
Quantity

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Dimensions
Shaft diameter d 60mm
A 64mm
A1 22mm
A2 42mm
B1 77.7mm
d1 82mm
H 146mm
H1 130mm
H2 102mm
L 194mm
L1 119mm
L2 19mm
L3 102mm
N 35mm
N1 32mm
N2 64mm
S 30.9mm
G M6x1
--- Load rating
Dynamic load C 52.5 kN
Static load C0 32.8 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Mass 4.97 kg
