SKU: EXT213N-SNR

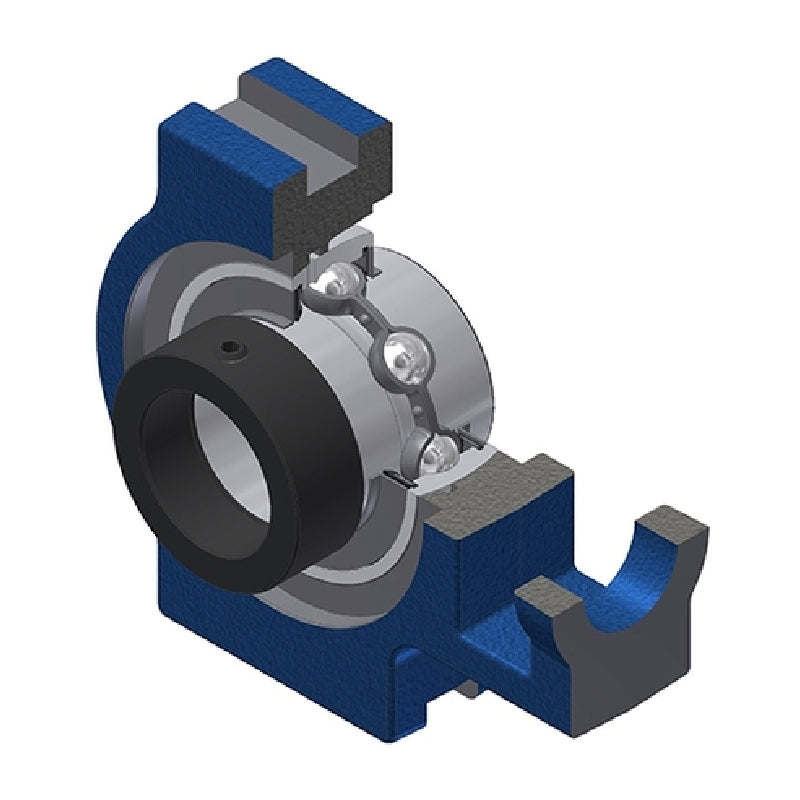

SNR EXT213N Metric Cast Iron Take Up Unit with Eccentric Collar Insert 65mm Bore - Allow 2-3 Days

SNR EXT213N Metric Cast Iron Take Up Unit with Eccentric Collar Insert 65mm Bore - Allow 2-3 Days
Regular price $235.55 ex VAT
Regular price Sale price $235.55 ex VAT
Sale Sold out

In stock

Price Break
3+ $175.48
4+ $168.39
9+ $164.84
19+ $159.53
49+ $155.98
99+ $147.12
499+ $124.08
999+ $0.00
1999+ $0.00
2999+ $0.00
4999+ $0.00
Quantity

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Dimensions
Shaft diameter d 65mm
A 70mm
A1 26mm
A2 44mm
B1 85.7mm
d1 86mm
H 167mm
H1 151mm
H2 111mm
L 224mm
L1 137mm
L2 21mm
L3 121mm
N 41mm
N1 32mm
N2 70mm
S 34.1mm
G M6x1
--- Load rating
Dynamic load C 57.2 kN
Static load C0 40 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Mass 7.21 kg
