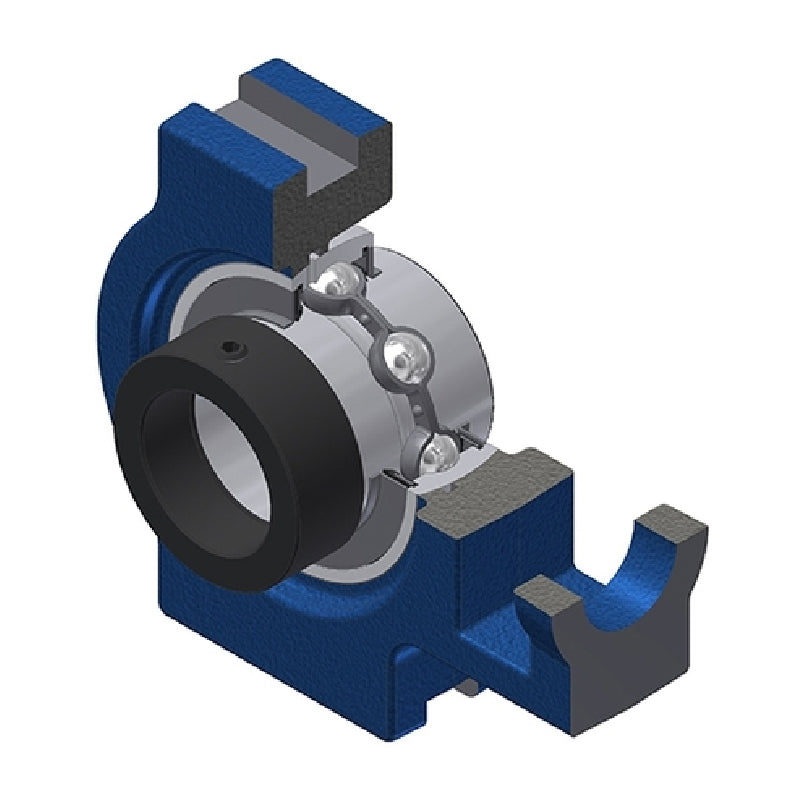

• SNR EXT214 Metric Cast Iron Take Up Unit with Eccentric Collar Insert 70mm Bore - Allow 2-3 Days
  • SNR
1 2

SKU: EXT214-SNR

SNR EXT214 Metric Cast Iron Take Up Unit with Eccentric Collar Insert 70mm Bore - Allow 2-3 Days

SNR EXT214 Metric Cast Iron Take Up Unit with Eccentric Collar Insert 70mm Bore - Allow 2-3 Days
$160.09 ex VAT
$160.09 ex VAT
Sale Sold out

In stock

Price Break
3+ $107.24
4+ $101.21
9+ $100.01
19+ $98.80
49+ $97.60
99+ $96.39
499+ $90.37
999+ $89.16
1999+ $87.96
2999+ $86.75
4999+ $84.34

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
SNR - High Quality
Inside Diameter:
70mm
Style:
EXT
Technical

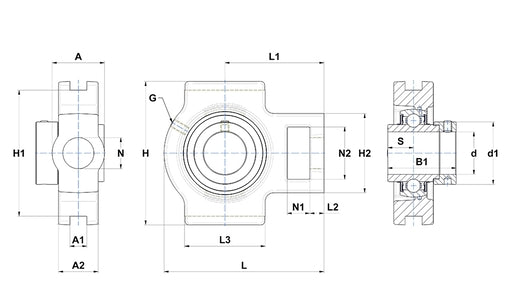

--- Dimensions
Shaft diameter d 70mm
A 70mm
A1 26mm
A2 46mm
B1 85.7mm
d1 96.8mm
H 167mm
H1 151mm
H2 111mm
L 224mm
L1 137mm
L2 21mm
L3 121mm
N 41mm
N1 32mm
N2 70mm
S 34.1mm
G M10x1
--- Load rating
Dynamic load C 62 kN
Static load C0 45 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Mass 7.37 kg
