• SNR EXT216 Metric Cast Iron Take Up Unit with Eccentric Collar Insert 80mm Bore - Allow 2-3 Days
  • SNR
1 2

SKU: EXT216-SNR

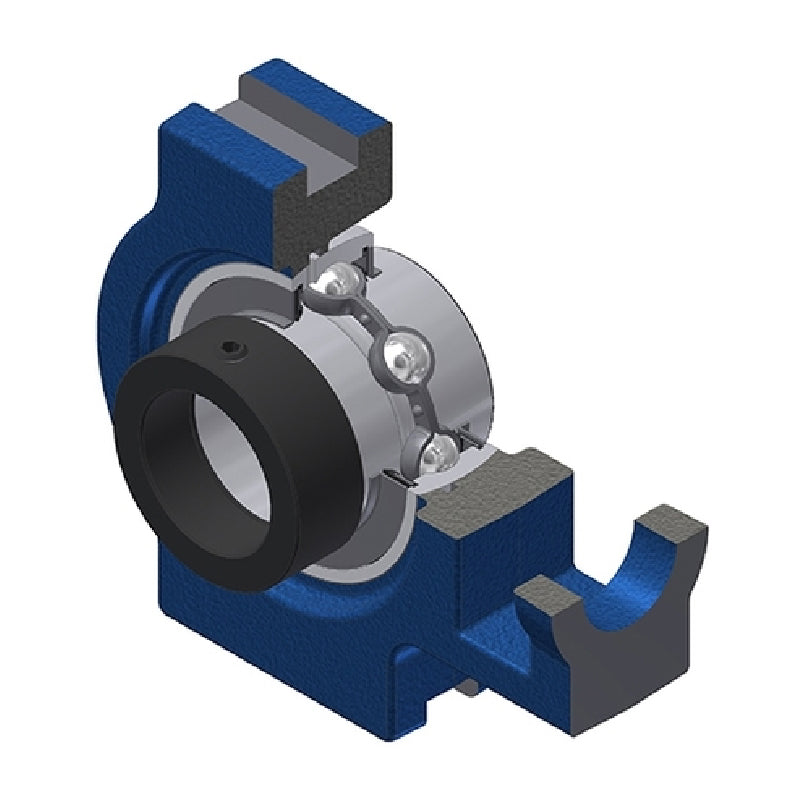

SNR EXT216 Metric Cast Iron Take Up Unit with Eccentric Collar Insert 80mm Bore - Allow 2-3 Days

SNR EXT216 Metric Cast Iron Take Up Unit with Eccentric Collar Insert 80mm Bore - Allow 2-3 Days
$216.66 ex VAT
$216.66 ex VAT
Sale Sold out

In stock

Price Break
3+ $145.12
4+ $136.97
9+ $135.34
19+ $133.71
49+ $132.08
99+ $130.45
499+ $122.29
999+ $120.66
1999+ $119.03
2999+ $117.40
4999+ $114.14

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
SNR - High Quality
Inside Diameter:
80mm
Style:
EXT
Technical
--- Dimensions
Shaft diameter d 80mm
A 70mm
A1 26mm
A2 51mm
B1 95.2mm
d1 110mm
H 184mm
H1 165mm
H2 111mm
L 235mm
L1 140mm
L2 21mm
L3 121mm
N 41mm
N1 32mm
N2 70mm
S 37.3mm
G M10x1
--- Load rating
Dynamic load C 72.5 kN
Static load C0 54.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Mass 8.52 kg
