SKU: EXT314-SNR

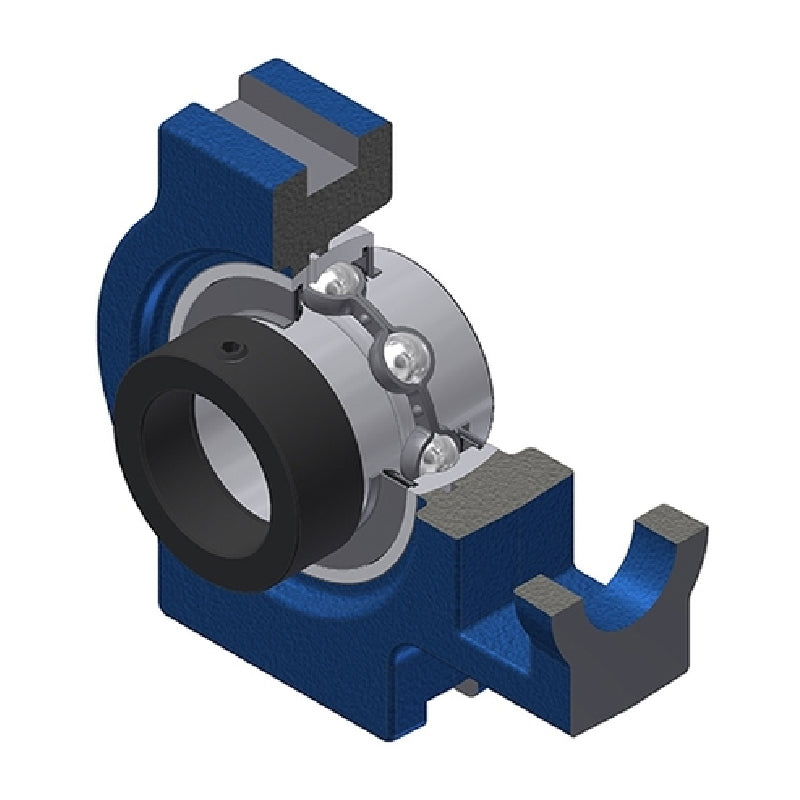

SNR EXT314 Metric Cast Iron Take Up Unit with Eccentric Collar Insert 70mm Bore - Allow 2-3 Days
SNR EXT314 Metric Cast Iron Take Up Unit with Eccentric Collar Insert 70mm Bore - Allow 2-3 Days
Regular price
$382.89
ex VAT
Regular price
Sale price
$382.89
ex VAT
In stock
Price Break
3+
$285.25
4+
$273.72
9+
$267.96
19+
$259.32
49+
$253.55
99+
$239.15
499+
$201.69
999+
$0.00
1999+
$0.00
2999+
$0.00
4999+
$0.00
Quantity
Couldn't load pickup availability
Share this product
Description
Description
EXT300 Series Cast Iron Take Up Units: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 70mm
- Style:
- EXT
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 70mm |
| A | 90mm |
| A1 | 26mm |
| A2 | 52mm |
| B1 | 92.1mm |
| d1 | 102mm |
| H | 202mm |
| H1 | 180mm |
| H2 | 130mm |
| L | 252mm |
| L1 | 155mm |
| L2 | 27mm |
| L3 | 140mm |
| N | 46mm |
| N1 | 36mm |
| N2 | 85mm |
| S | 34.15mm |
| G | M10x1 |
| --- | Load rating |
| Dynamic load C | 104.26 kN |
| Static load C0 | 68 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Mass | 11.7 kg |
