SKU: EXT316-SNR

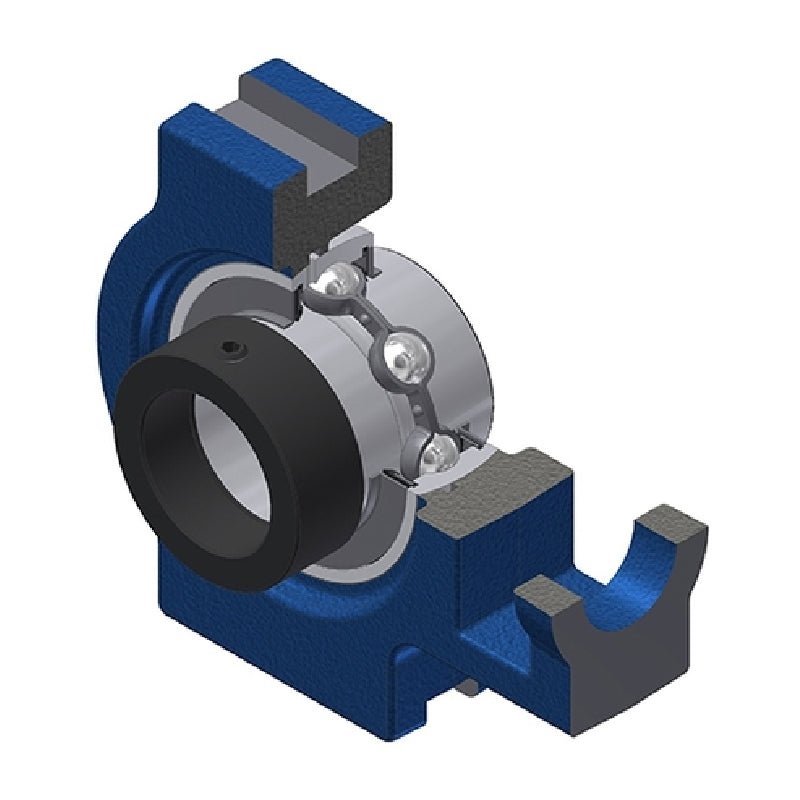

SNR EXT316 Metric Cast Iron Take Up Unit with Eccentric Collar Insert 80mm Bore - Allow 2-3 Days
SNR EXT316 Metric Cast Iron Take Up Unit with Eccentric Collar Insert 80mm Bore - Allow 2-3 Days
Regular price
$588.75
ex VAT
Regular price
Sale price
$588.75
ex VAT
In stock
Price Break
3+
$438.61
4+
$420.89
9+
$412.03
19+
$398.74
49+
$389.88
99+
$367.72
499+
$310.13
999+
$0.00
1999+
$0.00
2999+
$0.00
4999+
$0.00
Quantity
Couldn't load pickup availability
Share this product
Description
Description
EXT300 Series Cast Iron Take Up Units: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 80mm
- Style:
- EXT
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 80mm |
| A | 102mm |
| A1 | 30mm |
| A2 | 60mm |
| B1 | 106.4mm |
| d1 | 119mm |
| H | 230mm |
| H1 | 204mm |
| H2 | 150mm |
| L | 282mm |
| L1 | 174mm |
| L2 | 30mm |
| L3 | 160mm |
| N | 53mm |
| N1 | 42mm |
| N2 | 98mm |
| S | 40.5mm |
| G | M10x1 |
| --- | Load rating |
| Dynamic load C | 122.85 kN |
| Static load C0 | 86.5 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Mass | 17.1 kg |
