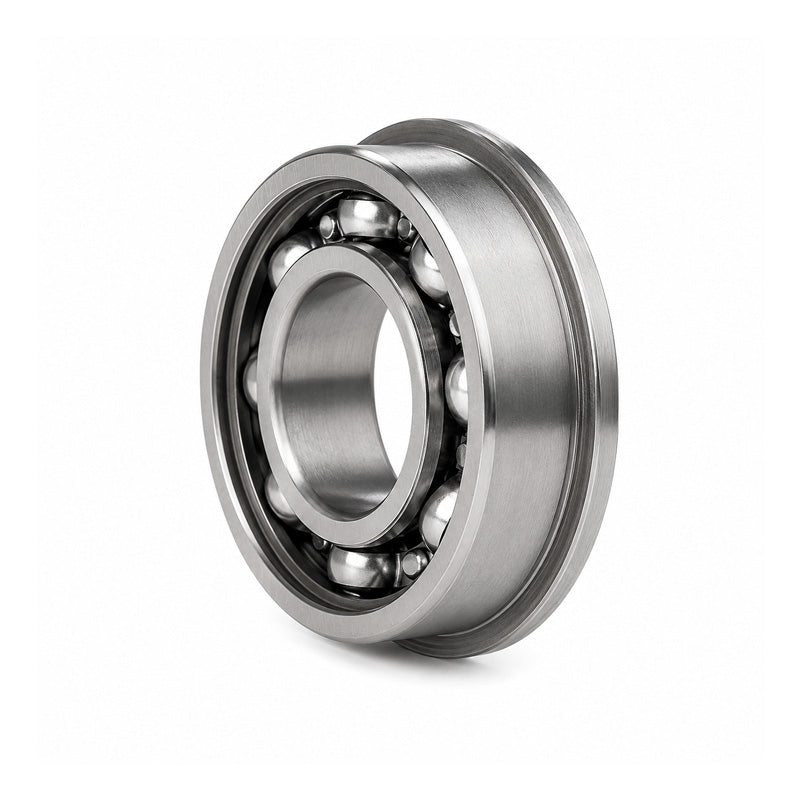

• F681 Budget Open Flanged Deep Groove Ball Bearing 1x3x1mm
1 1

SKU: F.681

F681 Budget Open Flanged Deep Groove Ball Bearing 1x3x1mm

F681 Budget Open Flanged Deep Groove Ball Bearing 1x3x1mm
$12.70 ex VAT
$12.70 ex VAT
Sale Sold out

In stock

Price Break
5+ $8.51
9+ $8.03
19+ $7.94
24+ $7.84
49+ $7.75
74+ $7.65
99+ $7.17
199+ $7.08
249+ $6.98
499+ $6.89
999+ $6.69

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Flanged Deep Groove Ball Bearings: Manufactured to the same principal sizes as standard bearings these have an additional flange to allow fitting into housings flush against the shoulder of the flange. They are often used on steel tracks as guides and supports
Benefits: Cost effective replacement bearing, Flanged design
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
1mm
Outside Diameter:
3mm
Width:
1mm
Seals / Shields:
None
Clearance:
* Standard
Technical
Inside diameter d 1mm
Outside diameter D 3mm
Bearing width B 1mm
Flange diameter P 3.8mm
Flange width w 0.3mm
