• F689 Budget Open Flanged Deep Groove Ball Bearing 9x17x4mm
1 1

SKU: F.689

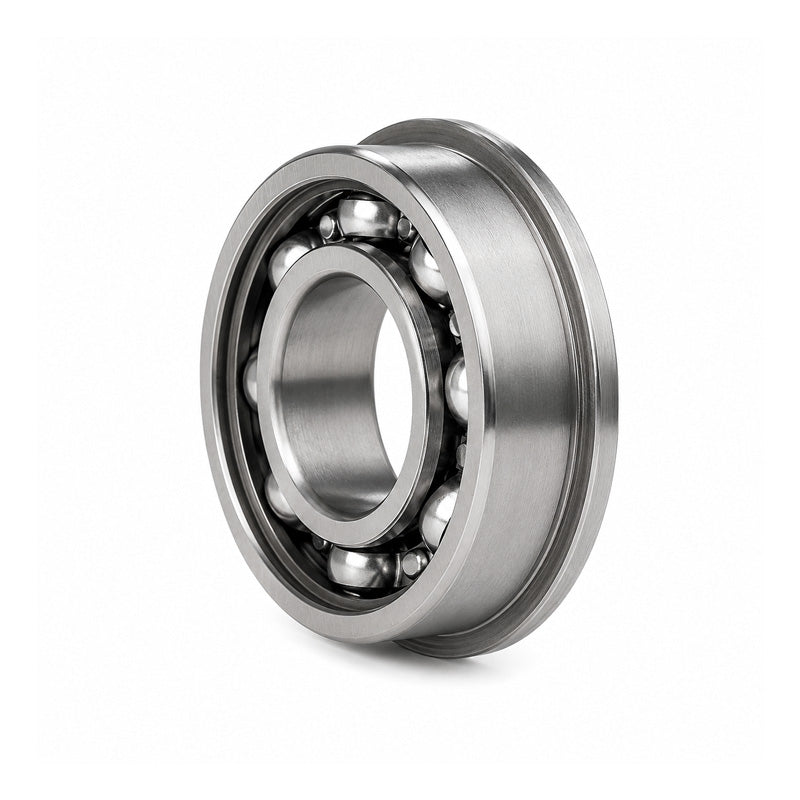

F689 Budget Open Flanged Deep Groove Ball Bearing 9x17x4mm

F689 Budget Open Flanged Deep Groove Ball Bearing 9x17x4mm
$4.45 ex VAT
$4.45 ex VAT
Sale Sold out

In stock

Price Break
5+ $2.98
9+ $2.82
19+ $2.78
24+ $2.75
49+ $2.72
74+ $2.68
99+ $2.51
199+ $2.48
249+ $2.45
499+ $2.41
999+ $2.35

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Flanged Deep Groove Ball Bearings: Manufactured to the same principal sizes as standard bearings these have an additional flange to allow fitting into housings flush against the shoulder of the flange. They are often used on steel tracks as guides and supports
Benefits: Cost effective replacement bearing, Flanged design
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
9mm
Outside Diameter:
17mm
Width:
4mm
Seals / Shields:
None
Clearance:
* Standard
Technical
Inside diameter d 9mm
Outside diameter D 17mm
Bearing width B 4mm
Flange diameter P 19mm
Flange width w 1mm
