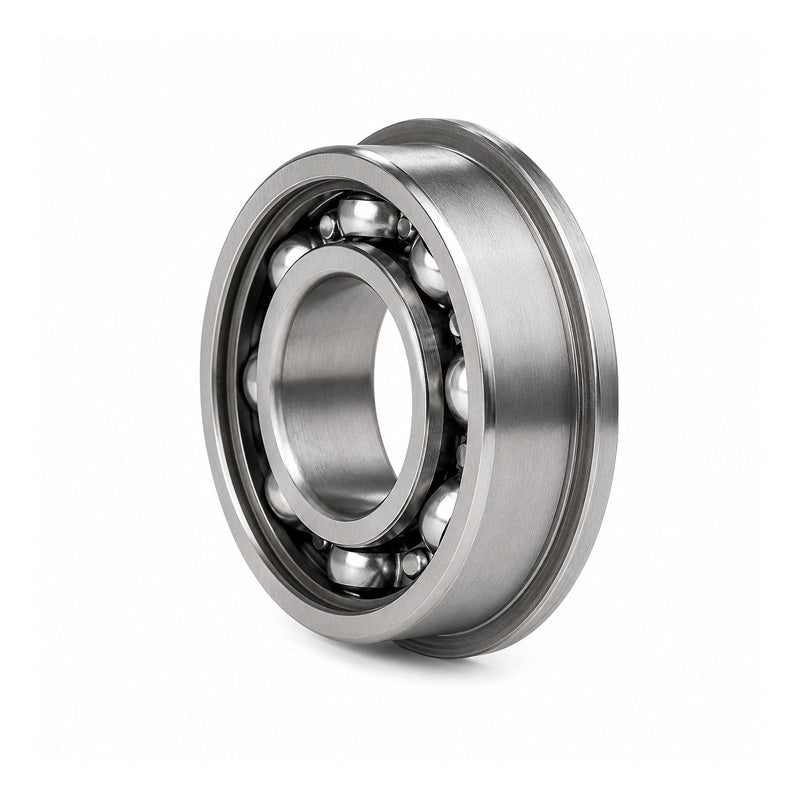

• F6903 Budget Open Flanged Thin Section Deep Groove Ball Bearing 17x30x7mm
1 1

SKU: F.6903

F6903 Budget Open Flanged Thin Section Deep Groove Ball Bearing 17x30x7mm

F6903 Budget Open Flanged Thin Section Deep Groove Ball Bearing 17x30x7mm
$18.88 ex VAT
$18.88 ex VAT
Sale Sold out

In stock

Price Break
5+ $12.65
9+ $11.94
19+ $11.80
24+ $11.65
49+ $11.51
74+ $11.37
99+ $10.66
199+ $10.52
249+ $10.37
499+ $10.23
999+ $9.95

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Flanged Deep Groove Ball Bearings: Manufactured to the same principal sizes as standard bearings these have an additional flange to allow fitting into housings flush against the shoulder of the flange. They are often used on steel tracks as guides and supports
Benefits: Cost effective replacement bearing, Flanged design
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
17mm
Outside Diameter:
30mm
Width:
7mm
Seals / Shields:
None
Clearance:
* Standard
Technical
Inside diameter d 17mm
Outside diameter D 30mm
Bearing width B 7mm
Flange diameter P 32.5mm
Flange width w 1.5mm
Radius min 0.3mm
