SKU: F10-18-MB

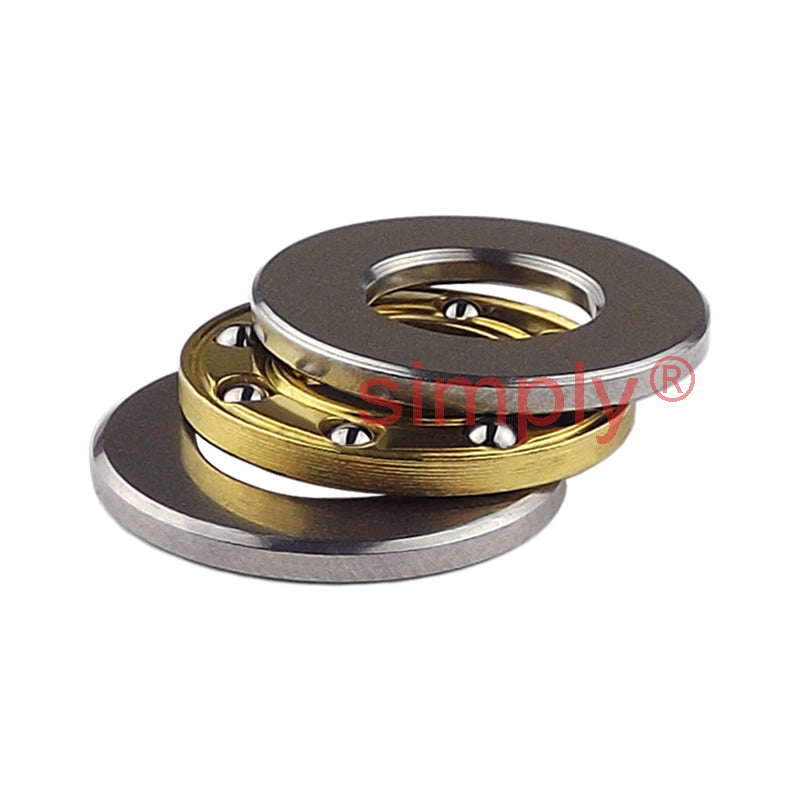

F10-18 Major Brand Single Thrust Ball Bearing 10x18x5.5mm
F10-18 Major Brand Single Thrust Ball Bearing 10x18x5.5mm
Regular price
$8.97
ex VAT
Regular price
Sale price
$8.97
ex VAT
In stock
Price Break
10+
$6.01
19+
$5.67
29+
$5.60
39+
$5.53
49+
$5.47
74+
$5.40
99+
$5.06
199+
$4.99
249+
$4.93
499+
$4.86
999+
$4.72
Quantity
Couldn't load pickup availability
Share this product
Description
Description
Thrust Ball Thrust Bearings: These bearings consist of three parts, a shaft and a housing washer and a caged ball bearing assembly that is sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in one direction. Clearance is provided in the bore of one of the raceways to allow for alignment.
Benefits: Axial loading, ease of mounting and assembly
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 10mm
- Outside Diameter:
- 18mm
- Width:
- 5.5mm
Technical
Technical
| d | 10mm |
|---|---|
| D | 18mm |
| H | 5.5mm |
| Dynamic load C | 0.78 kN |
| Static load Co | 0.7 kN |
| Limiting speed | 14000 rpm |
| Weight | 0.006 kg |
| r1r2 min | 0.3mm |
