SKU: F100B+F100B+F100T-MB

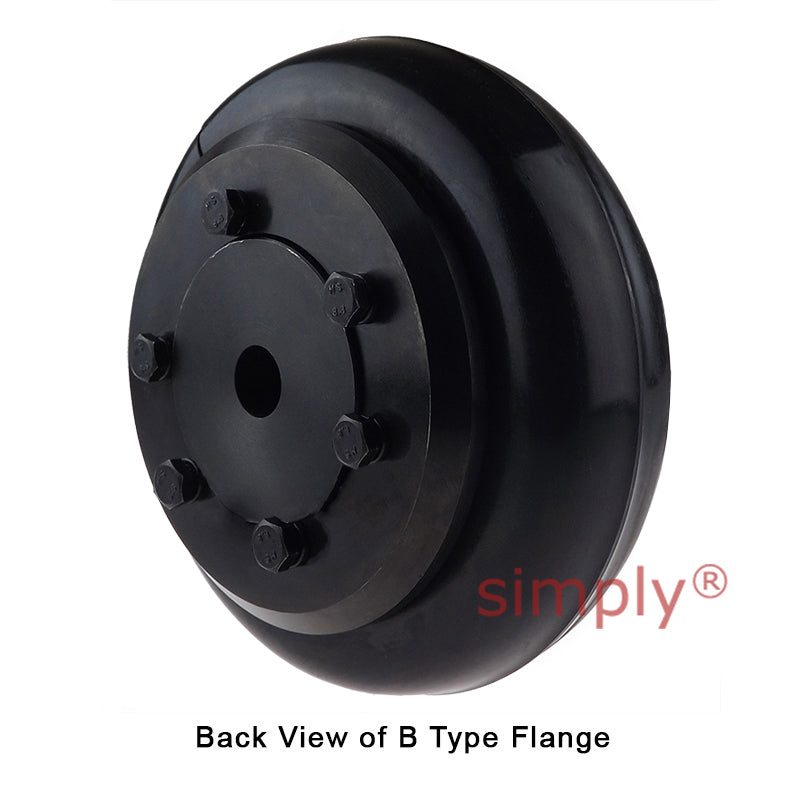

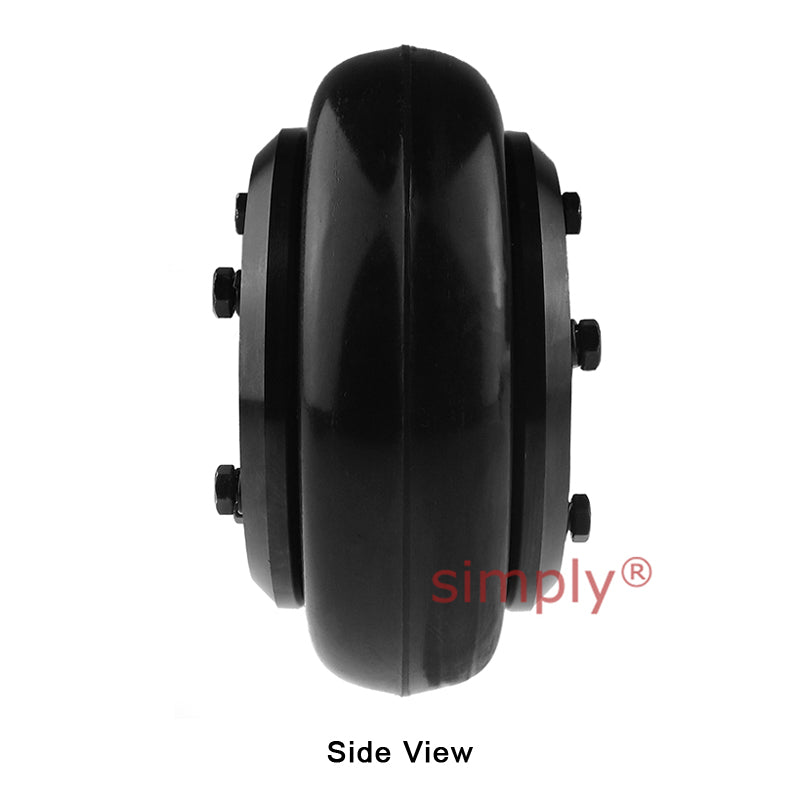

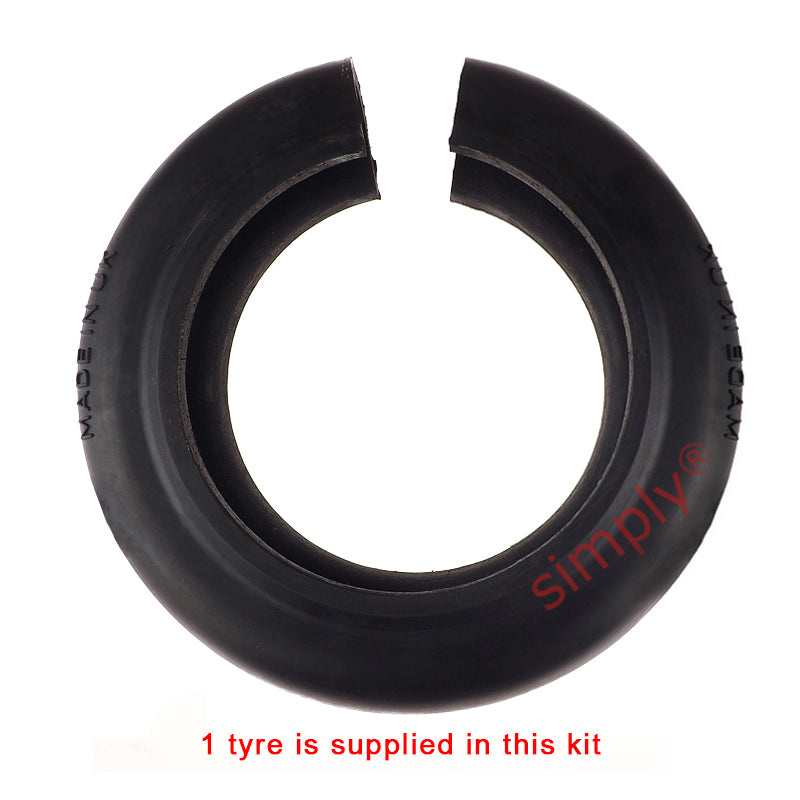

Major Branded F100B/F100B Pilot Bored Tyre Drive Coupling Assembly with Natural Rubber Tyre

Major Branded F100B/F100B Pilot Bored Tyre Drive Coupling Assembly with Natural Rubber Tyre
$242.65 ex VAT
$242.65 ex VAT
Sale Sold out

Equivalent to: F100B F100B F100T

In stock

Price Break
10+ $162.53
19+ $153.40
29+ $151.58
39+ $149.75
49+ $147.92
74+ $146.10
99+ $136.97
199+ $135.14
249+ $133.31
499+ $131.49
999+ $127.83

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Max Bore:
80mm
Technical

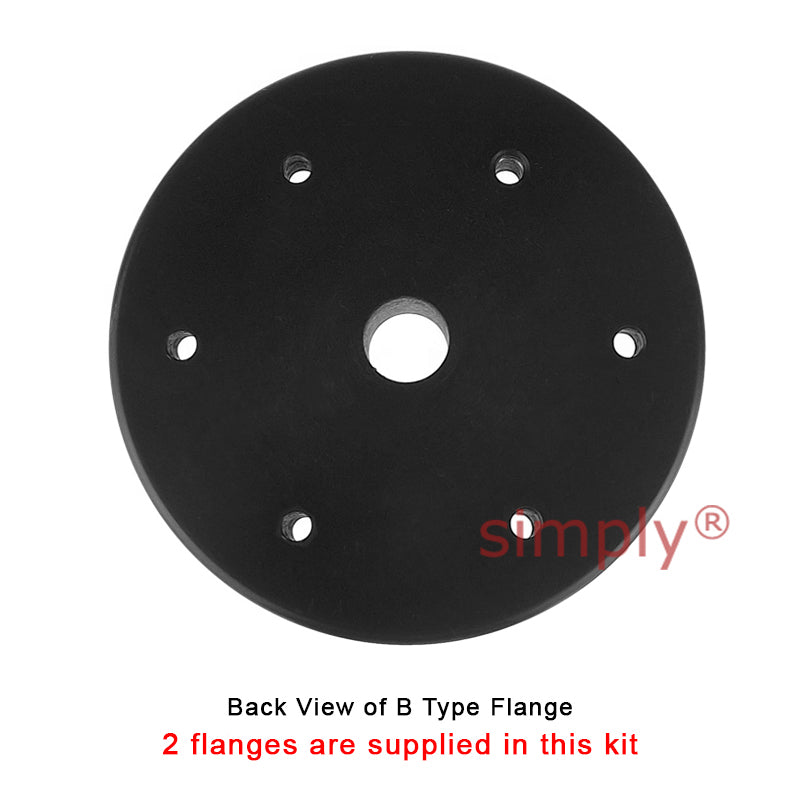

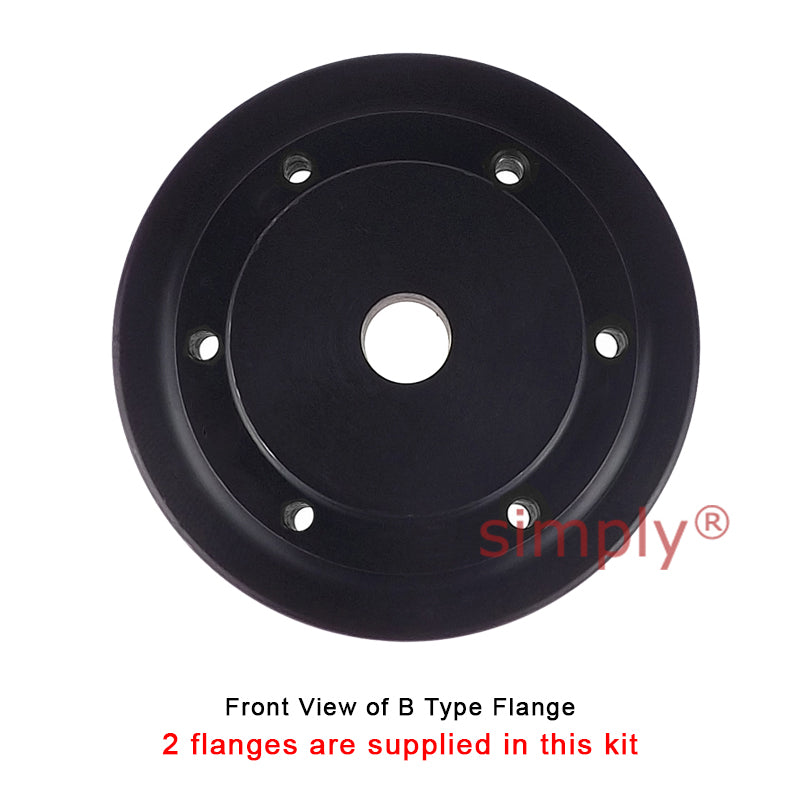

B Type - Max Bore 80mm
B Type - Flange A 254mm
B Type - Flange B 125mm
B Type - Flange C 216mm
B Type - Flange E 13.5mm
B Type - Flange F 70.5mm
B Type - Flange D 56mm
B Type - Clamping Screws M12
B Type - Flange Weight 11.1kg
B Type - Inertia 0.055kgm2
B Type - Flange Face Spacing 27mm
B Type - Gap Between Tyre Ends 3mm
B Type - Nominal Torque 675 Nm
B Type - Max Speed 2600 rev/min
B Type - Max Par Mis 2.6mm
B Type - Max End Float 3.3mm

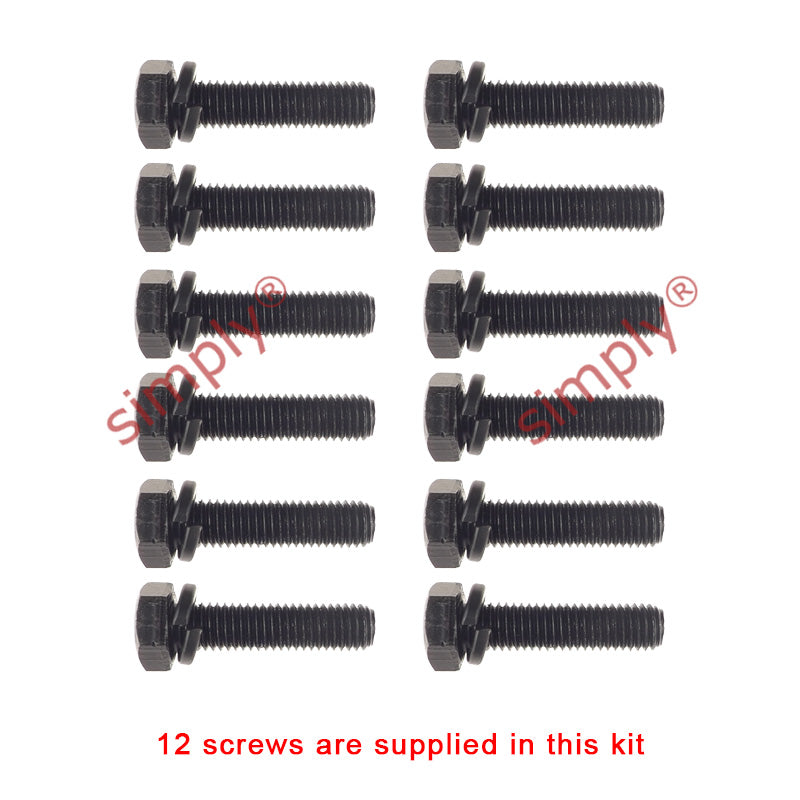

B Type - Screw Size M10
B Type - Tigtening Torque 40 Nm
Max Power at 100 rpm 7.07 kW
Max Power at 200 rpm 14.1 kW
Max Power at 300 rpm 21.2 kW
Max Power at 400 rpm 28.3 kW
Max Power at 500 rpm 35.3 kW
Max Power at 600 rpm 42.4 kW
Max Power at 700 rpm 49.5 kW
Max Power at 720 rpm 50.9 kW
Max Power at 800 rpm 56.5 kW
Max Power at 900 rpm 63.6 kW
Max Power at 960 rpm 67.9 kW
Max Power at 1000 rpm 70.7 kW
Max Power at 1200 rpm 84.8 kW
Max Power at 1400 rpm 99 kW
Max Power at 1440 rpm 102 kW
Max Power at 1600 rpm 113 kW
Max Power at 1800 rpm 127 kW
Max Power at 2000 rpm 141 kW
Max Power at 2200 rpm 155 kW
Max Power at 2400 rpm 170 kW
Max Power at 2600 rpm 184 kW
Maximum Speed 2600 rev/min
Nominal Torque 675 Nm TKN
Maximum Torque 1517 Nm TK MAX
Torsional Stiffness 126 Nm/°
Max. Parallel Misalignment 2.6mm
Maximum End Float 3.3mm ±
Approximate Mass 1.1kg
Alternating Torque 252 ± Nm @ 10Hz TKW
Resonance Factor V B 7
Damping Coefficient Ø 0.9
