SKU: F110B-MB

Major Branded F110B-MB Drive Coupling Pilot Bore Max Bore 90mm

Major Branded F110B-MB Drive Coupling Pilot Bore Max Bore 90mm
$132.31 ex VAT
$132.31 ex VAT
Sale Sold out

Equivalent to: F110B

In stock

Price Break
10+ $88.63
19+ $83.65
29+ $82.65
39+ $81.66
49+ $80.66
74+ $79.67
99+ $74.69
199+ $73.69
249+ $72.70
499+ $71.70
999+ $69.71

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Max Bore:
90mm
Technical

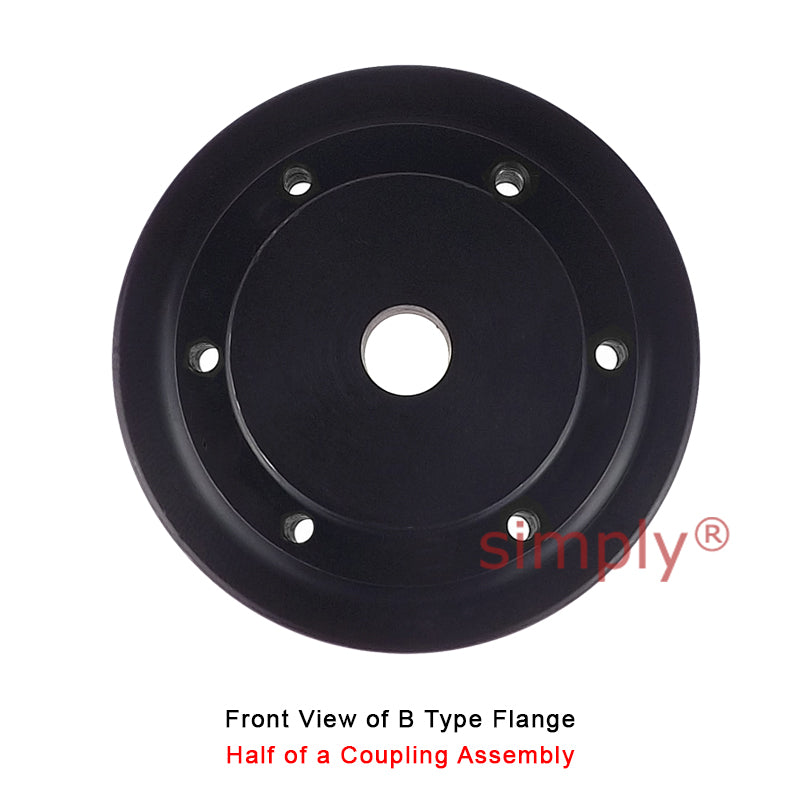

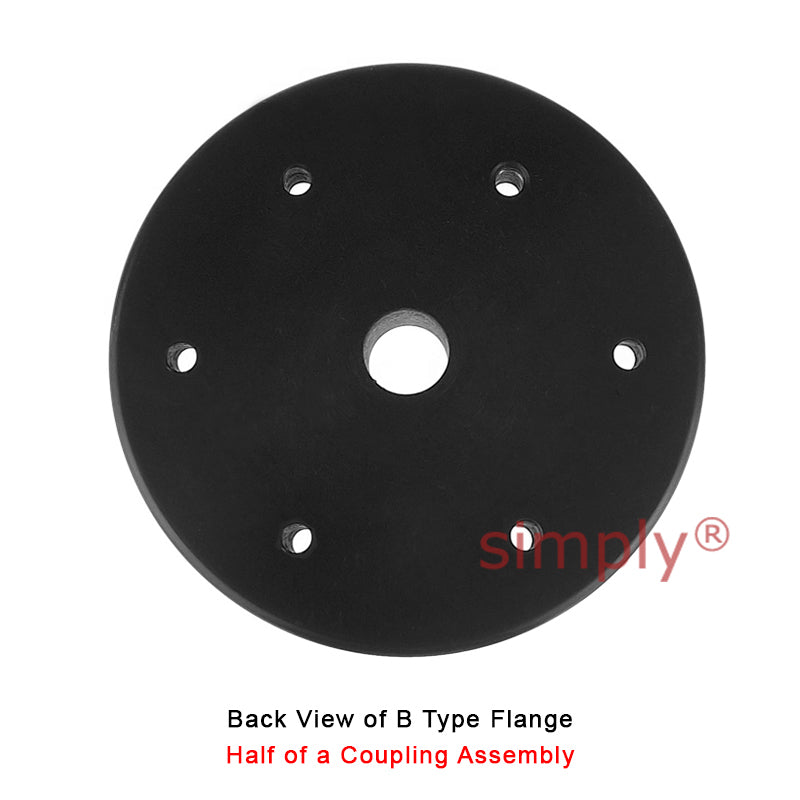

B Type - Max Bore 90mm
B Type - Flange A 279mm
B Type - Flange B 63mm
B Type - Flange C 233mm
B Type - Flange E 12.5mm
B Type - Flange F 75.5mm
B Type - Flange D 128mm
B Type - Clamping Screws M12
B Type - Flange Weight 13.7kg
B Type - Inertia 0.081kgm2
B Type - Flange Face Spacing 25mm
B Type - Gap Between Tyre Ends 3mm
B Type - Nominal Torque 875 Nm
B Type - Max Speed 2300 rev/min
B Type - Max Par Mis 2.9mm
B Type - Max End Float 3.7mm

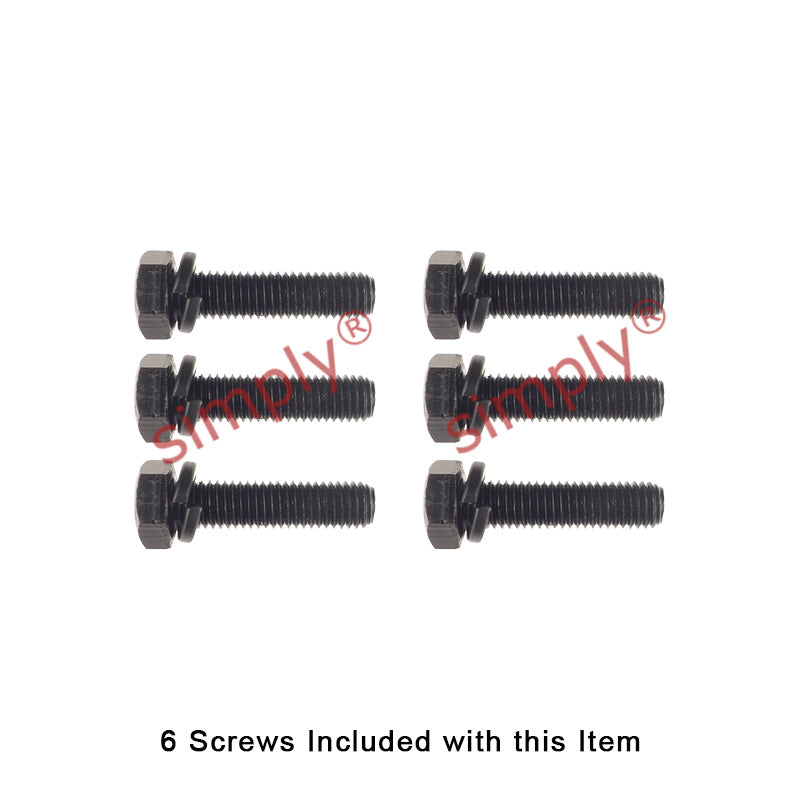

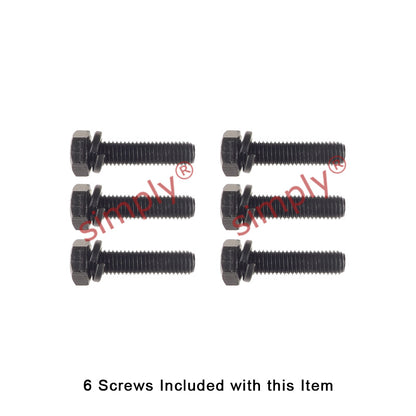

B Type - Screw Size M10
B Type - Tigtening Torque 40 Nm
Max Power at 100 rpm 9.16 kW
Max Power at 200 rpm 18.3 kW
Max Power at 300 rpm 27.5 kW
Max Power at 400 rpm 36.6 kW
Max Power at 500 rpm 45.8 kW
Max Power at 600 rpm 55 kW
Max Power at 700 rpm 64.1 kW
Max Power at 720 rpm 66 kW
Max Power at 800 rpm 73.3 kW
Max Power at 900 rpm 82.5 kW
Max Power at 960 rpm 88 kW
Max Power at 1000 rpm 91.6 kW
Max Power at 1200 rpm 110 kW
Max Power at 1400 rpm 128 kW
Max Power at 1440 rpm 132 kW
Max Power at 1600 rpm 147 kW
Max Power at 1800 rpm 165 kW
Max Power at 2000 rpm 183 kW
Max Power at 2200 rpm 202 kW
Maximum Speed 2300 rev/min
Nominal Torque 875 Nm TKN
Maximum Torque 2137 Nm TK MAX
Torsional Stiffness 178 Nm/°
Max. Parallel Misalignment 2.9mm
Maximum End Float 3.7mm ±
Approximate Mass 1.4kg
Alternating Torque 356 ± Nm @ 10Hz TKW
Resonance Factor V B 7
Damping Coefficient Ø 0.9
