SKU: F120B+F120B+F120T-FRAS-MB
Major Branded F120B/F120B Pilot Bored Tyre Drive Coupling Assembly with Fire Resistant Antistatic (F.R.A.S) Tyre
Equivalent to: F120B F120B F120T-FRAS
In stock
Price Break
Couldn't load pickup availability
Share this product
Description

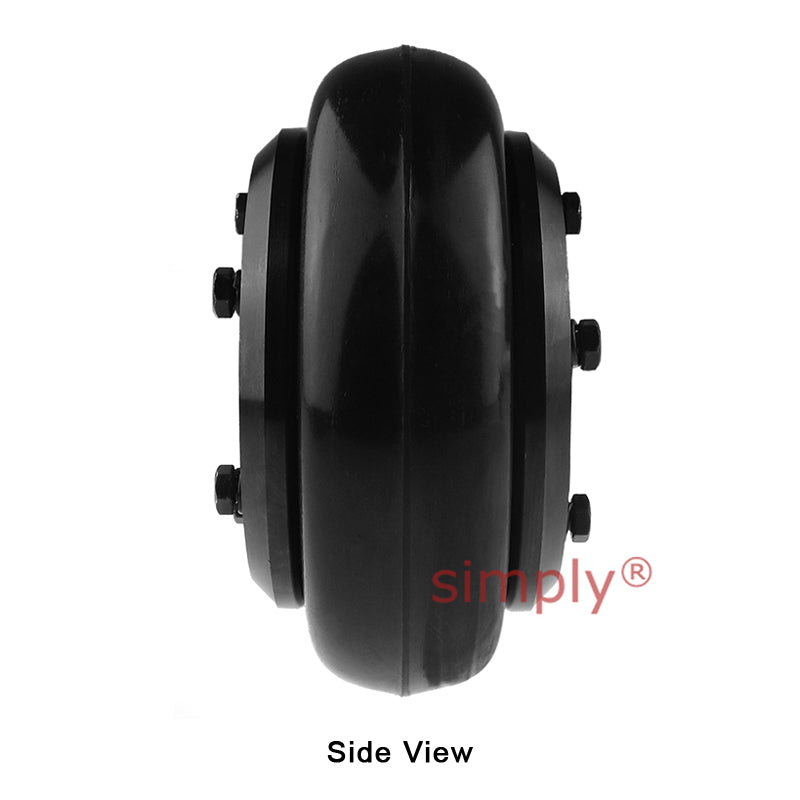

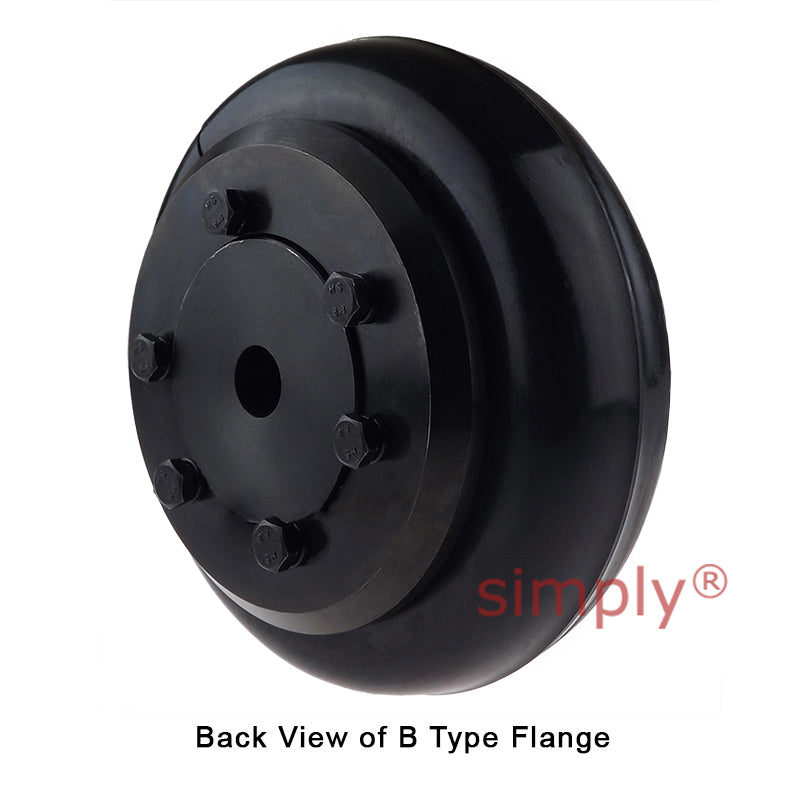

Branded Pilot Bore Tyre Drive Coupling Assembly with Fire Resistant Antistatic (F.R.A.S) Tyre: This type of coupling can accommodate simultaneous maximum misalignment in all planes without imposing undue loads on adjacent bearings.

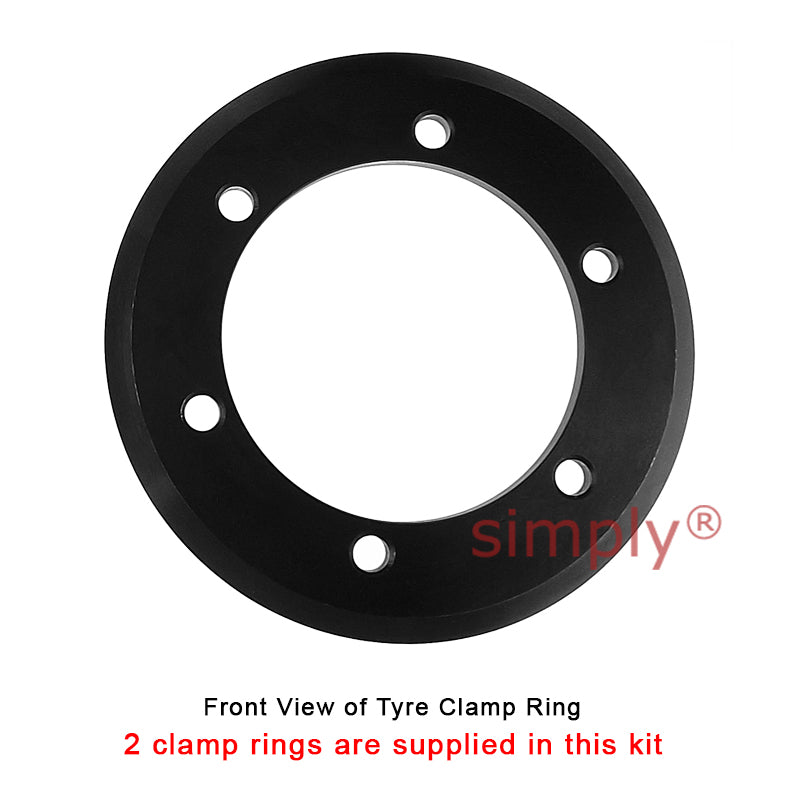

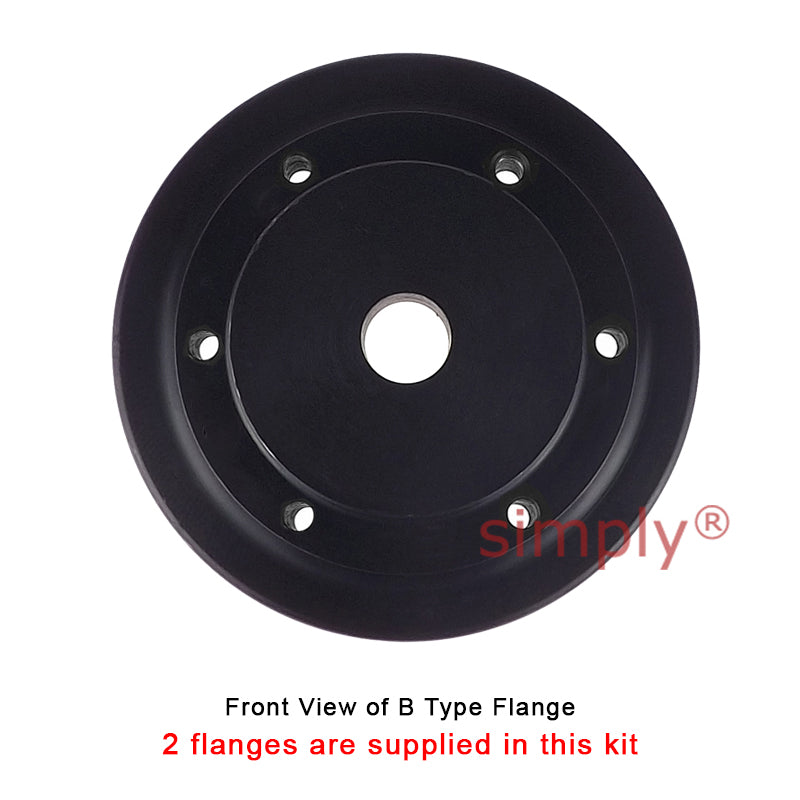

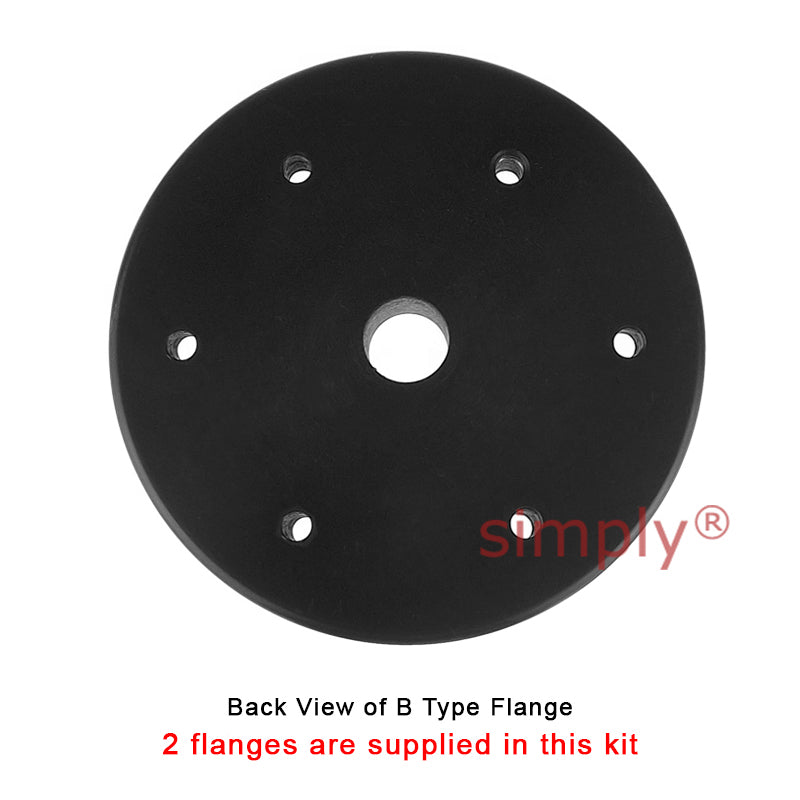

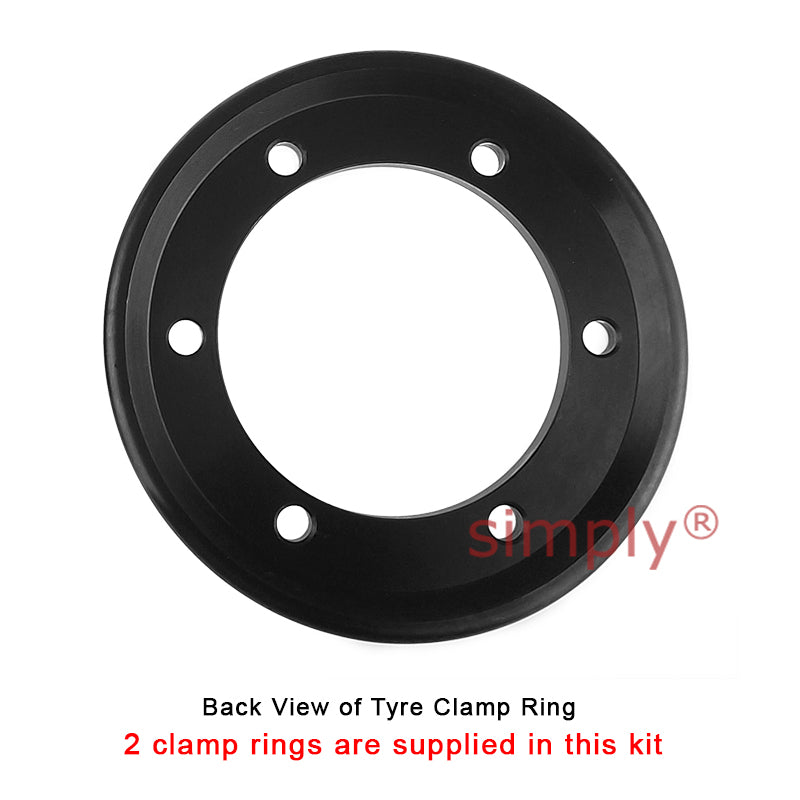

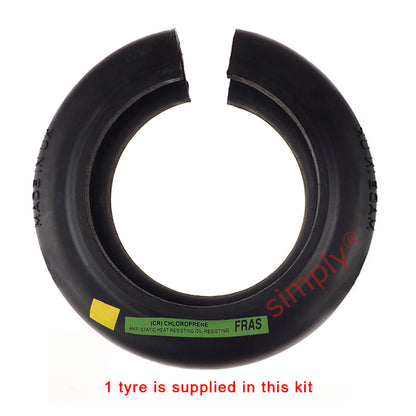

Supplied as a complete coupling assembly, machining the bores to suit your application will be required. The assembly comprises of 2 steel flanges and a matching chloroprene rubber fire resistance and anti-static properties (F.R.A.S) tyre element. This coupling is the B type is supplied with a nominally sized pilot bore flange.

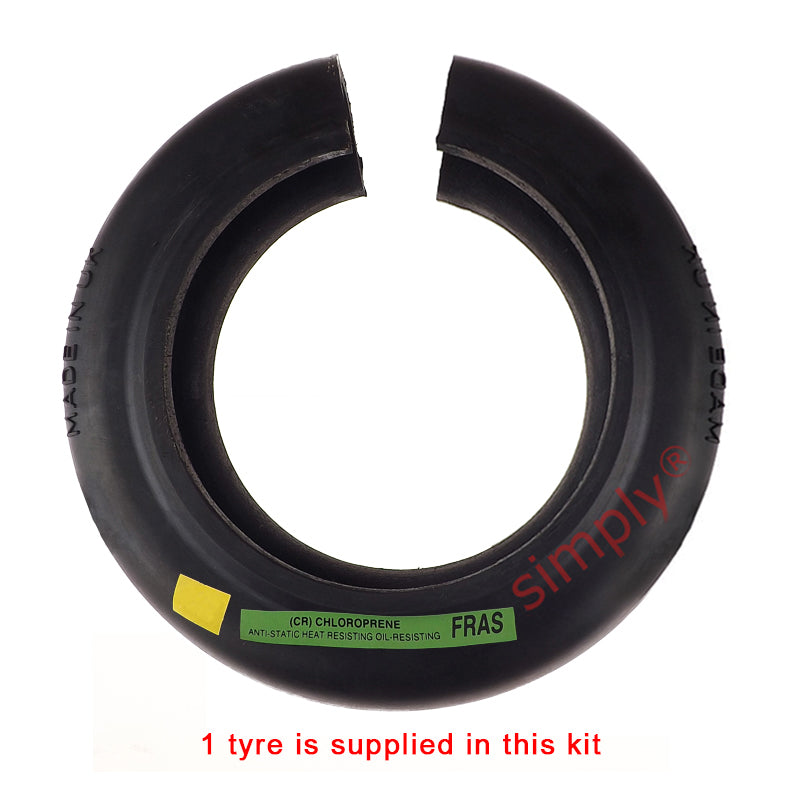

The chloroprene rubber compound is suitable for use in temperatures of -15 deg C to +70 deg C and has fire resistance and anti-static properties (F.R.A.S). If it doesn't say F.R.A.S it's not Fire Resistant Antistatic. The inserts has excellent shock absorbing properties of the insert reduces vibration and torsional oscillations.
- Brand / Quality:
- Major Brand - High Quality
Technical
| B Type - Max Bore | 100mm |
|---|---|
| B Type - Flange A | 314mm |
| B Type - Flange B | 143mm |
| B Type - Flange C | 264mm |
| B Type - Flange E | 14.5mm |
| B Type - Flange F | 94.5mm |
| B Type - Flange D | 70mm |

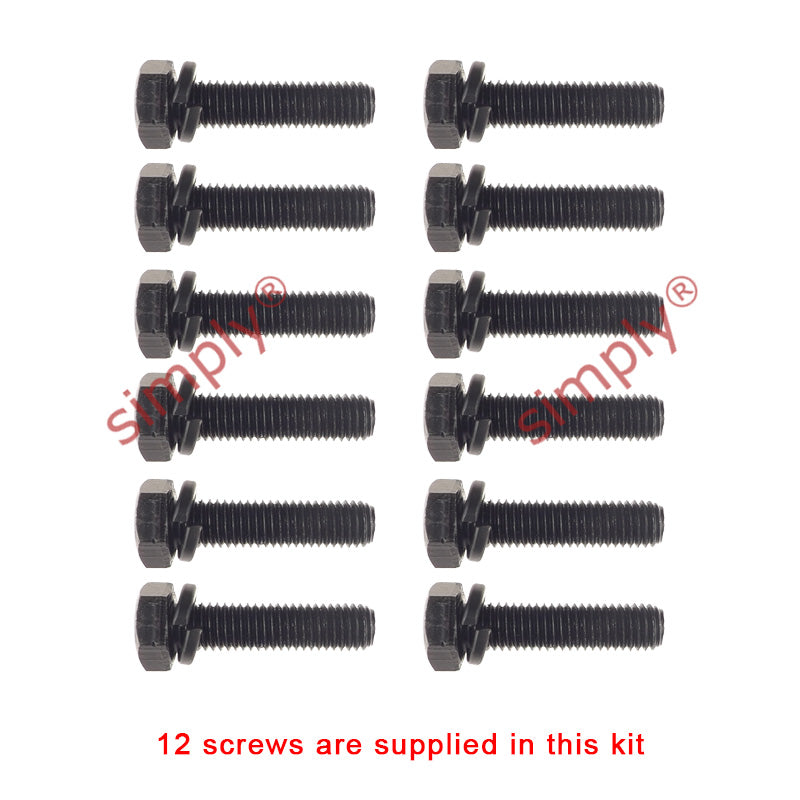

| B Type - Clamping Screws | M16 |
| B Type - Flange Weight | 19kg |
| B Type - Inertia | 0.137kgm2 |
| B Type - Flange Face Spacing | 29mm |
| B Type - Gap Between Tyre Ends | 3mm |
| B Type - Nominal Torque | 1330 Nm |
| B Type - Max Speed | 2050 rev/min |
| B Type - Max Par Mis | 3.2mm |
| B Type - Max End Float | 4mm |
| B Type - Screw Size | M12 |
| B Type - Tigtening Torque | 50 Nm |
| Max Power at 100 rpm | 13.9 kW |
| Max Power at 200 rpm | 27.9 kW |
| Max Power at 300 rpm | 41.8 kW |
| Max Power at 400 rpm | 55.7 kW |
| Max Power at 500 rpm | 69.6 kW |
| Max Power at 600 rpm | 93.6 kW |
| Max Power at 700 rpm | 97.5 kW |
| Max Power at 720 rpm | 100 kW |
| Max Power at 800 rpm | 111 kW |
| Max Power at 900 rpm | 125 kW |
| Max Power at 960 rpm | 134 kW |
| Max Power at 1000 rpm | 139 kW |
| Max Power at 1200 rpm | 167 kW |
| Max Power at 1400 rpm | 195 kW |
| Max Power at 1440 rpm | 201 kW |
| Max Power at 1600 rpm | 223 kW |
| Max Power at 1800 rpm | 251 kW |
| Max Power at 2000 rpm | 279 kW |
| Maximum Speed | 2050 rev/min |
| Nominal Torque | 1330 Nm TKN |
| Maximum Torque | 3547 Nm TK MAX |
| Torsional Stiffness | 296 Nm/° |
| Max. Parallel Misalignment | 3.2mm |
| Maximum End Float | 4mm ± |
| Approximate Mass | 2.3kg |
| Alternating Torque | 591 ± Nm @ 10Hz TKW |
| Resonance Factor V B | 7 |
| Damping Coefficient Ø | 0.9 |
