SKU: F120B-MB

Major Branded F120B-MB Drive Coupling Pilot Bore Max Bore 100mm

Major Branded F120B-MB Drive Coupling Pilot Bore Max Bore 100mm
$146.37 ex VAT
$146.37 ex VAT
Sale Sold out

Equivalent to: F120B

In stock

Price Break
10+ $98.04
19+ $92.53
29+ $91.43
39+ $90.33
49+ $89.23
74+ $88.13
99+ $82.62
199+ $81.52
249+ $80.42
499+ $79.32
999+ $77.11

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Max Bore:
100mm
Technical
B Type - Max Bore 100mm
B Type - Flange A 314mm
B Type - Flange B 70mm
B Type - Flange C 264mm
B Type - Flange E 14.5mm
B Type - Flange F 94.5mm
B Type - Flange D 143mm

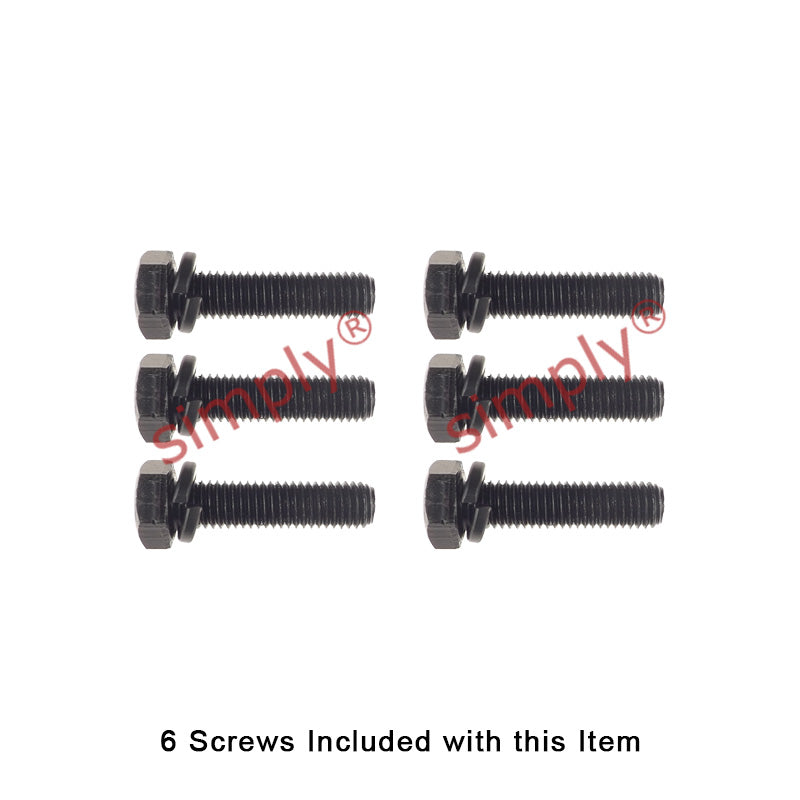

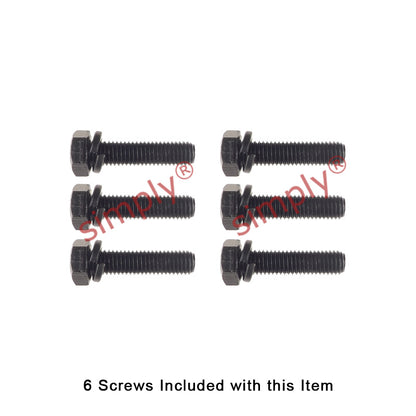

B Type - Clamping Screws M16
B Type - Flange Weight 19kg
B Type - Inertia 0.137kgm2
B Type - Flange Face Spacing 29mm
B Type - Gap Between Tyre Ends 3mm
B Type - Nominal Torque 1330 Nm
B Type - Max Speed 2050 rev/min
B Type - Max Par Mis 3.2mm
B Type - Max End Float 4mm
B Type - Screw Size M12
B Type - Tigtening Torque 50 Nm
Max Power at 100 rpm 13.9 kW
Max Power at 200 rpm 27.9 kW
Max Power at 300 rpm 41.8 kW
Max Power at 400 rpm 55.7 kW
Max Power at 500 rpm 69.6 kW
Max Power at 600 rpm 93.6 kW
Max Power at 700 rpm 97.5 kW
Max Power at 720 rpm 100 kW
Max Power at 800 rpm 111 kW
Max Power at 900 rpm 125 kW
Max Power at 960 rpm 134 kW
Max Power at 1000 rpm 139 kW
Max Power at 1200 rpm 167 kW
Max Power at 1400 rpm 195 kW
Max Power at 1440 rpm 201 kW
Max Power at 1600 rpm 223 kW
Max Power at 1800 rpm 251 kW
Max Power at 2000 rpm 279 kW
Maximum Speed 2050 rev/min
Nominal Torque 1330 Nm TKN
Maximum Torque 3547 Nm TK MAX
Torsional Stiffness 296 Nm/°
Max. Parallel Misalignment 3.2mm
Maximum End Float 4mm ±
Approximate Mass 2.3kg
Alternating Torque 591 ± Nm @ 10Hz TKW
Resonance Factor V B 7
Damping Coefficient Ø 0.9
