SKU: F120H-MB

Major Branded F120H-MB Drive Coupling Outer Tapered Locking Bush Type Max Bush Bore 75mm / 3 inch

Major Branded F120H-MB Drive Coupling Outer Tapered Locking Bush Type Max Bush Bore 75mm / 3 inch
$131.73 ex VAT
$131.73 ex VAT
Sale Sold out

Equivalent to: F120H-3020

In stock

Price Break
10+ $88.24
19+ $83.28
29+ $82.29
39+ $81.30
49+ $80.31
74+ $79.32
99+ $74.36
199+ $73.37
249+ $72.38
499+ $71.38
999+ $69.40

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

Branded Drive Coupling Outer Tapered Locking Bush Type: This type of coupling can accommodate simultaneous maximum misalignment in all planes without imposing undue loads on adjacent bearings.

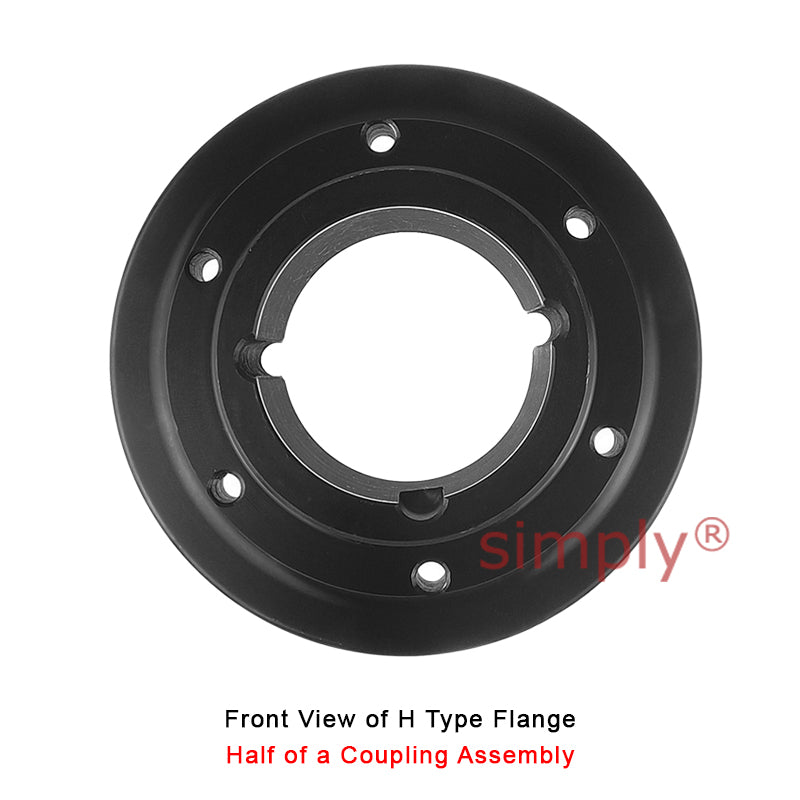

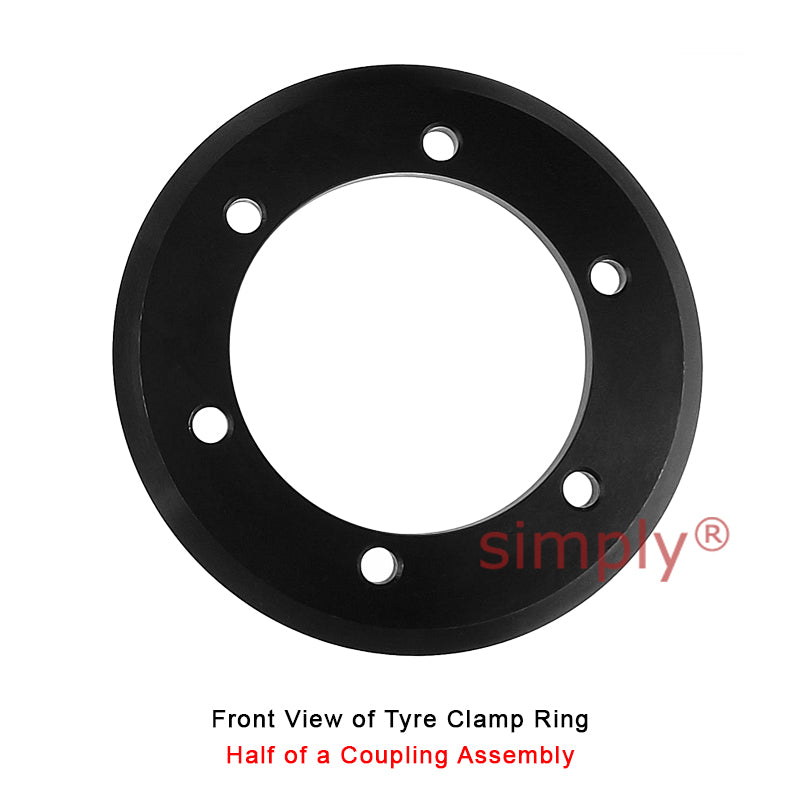

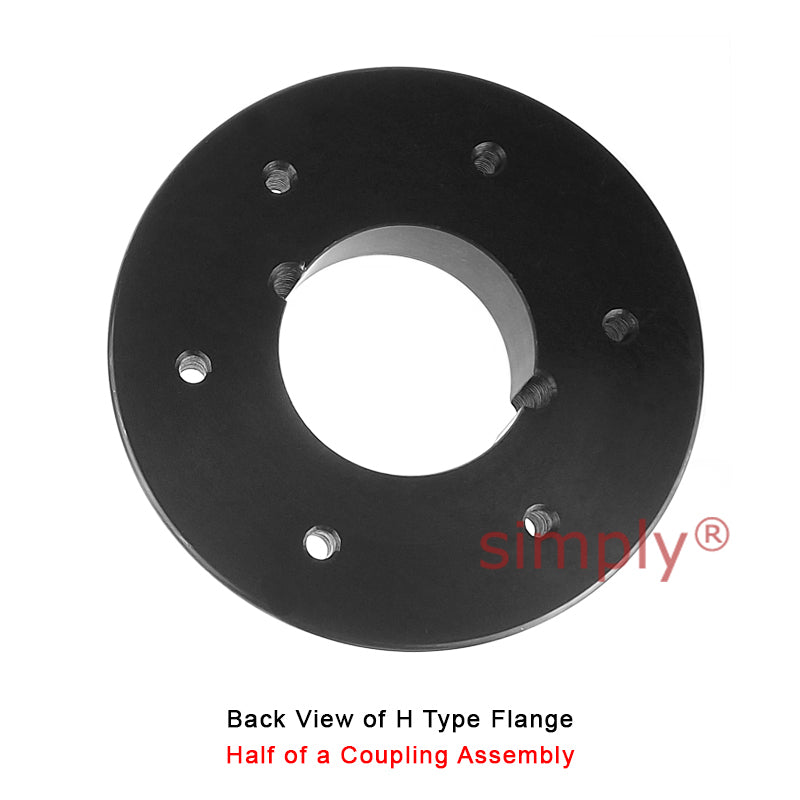

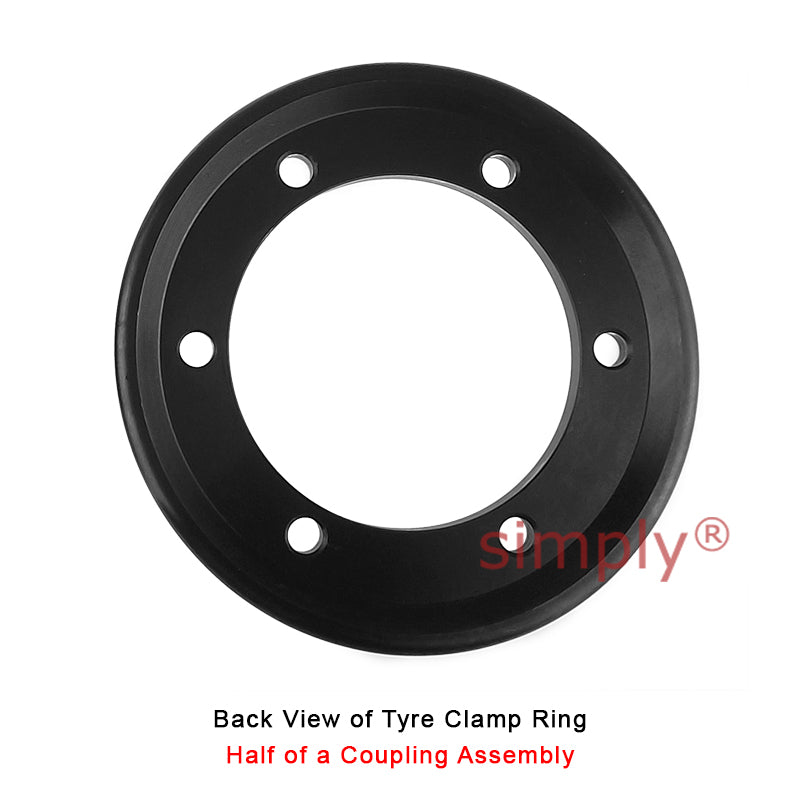

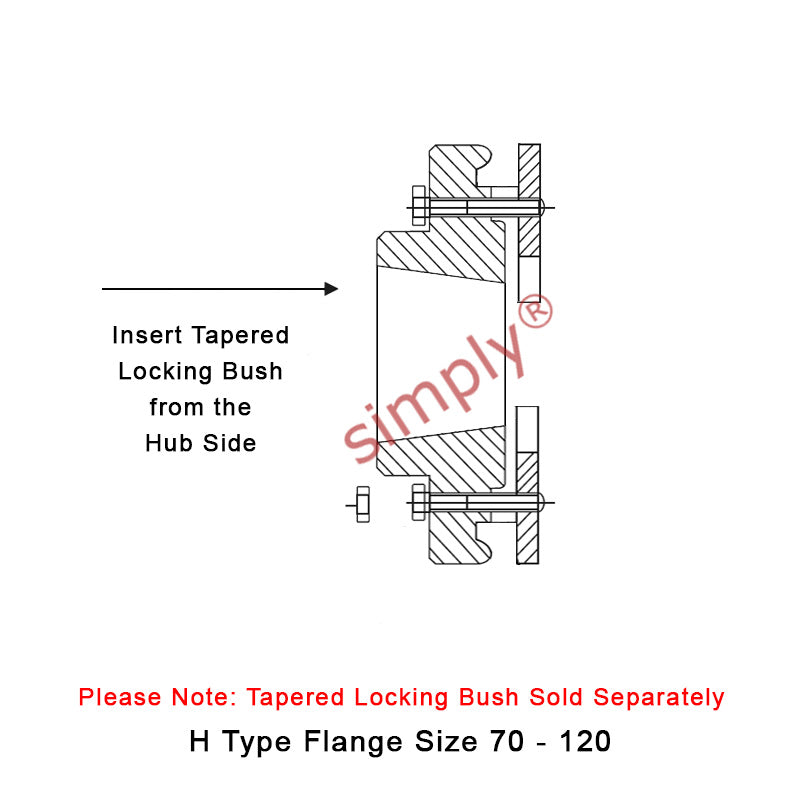

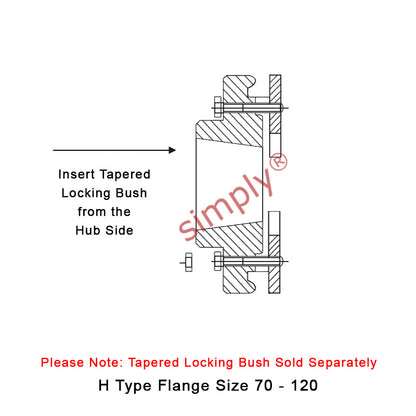

This coupling is the H type where the larger diameter of the taper bore is on the opposite side to the tyre clamping flange.

This is a half coupling. You require 2 x flanges and 1 x tyre to create a full coupling. Do you need a Fire Resistant Antistatic (F.R.A.S) rubber tyre. See links below.

Brand / Quality:
Major Brand - High Quality
Max Bore:
75mm or 3 inch
Technical
H Type - Bush 3020 <a href="advanced_search_result.php?keywords=taper+lock+bush+3020">[Click Here]</a>
H Type - Max Bore 75mm
H Type - Max Bore 3 inch
H Type - Flange A 314mm
H Type - Flange B 140mm
H Type - Flange C 264mm
H Type - Flange E 14.5mm
H Type - Flange G 55mm
H Type - Flange F 65.5mm
H Type - Flange D 51mm
H Type - Flange Weight 13.6kg
H Type - Inertia 0.13kgm2
H Type - Flange Face Spacing 29mm
H Type - Gap Between Tyre Ends 3mm
H Type - Nominal Torque 1330 Nm
H Type - Max Speed 2050 rev/min
H Type - Max Par Mis 3.2mm
H Type - Max End Float 4mm

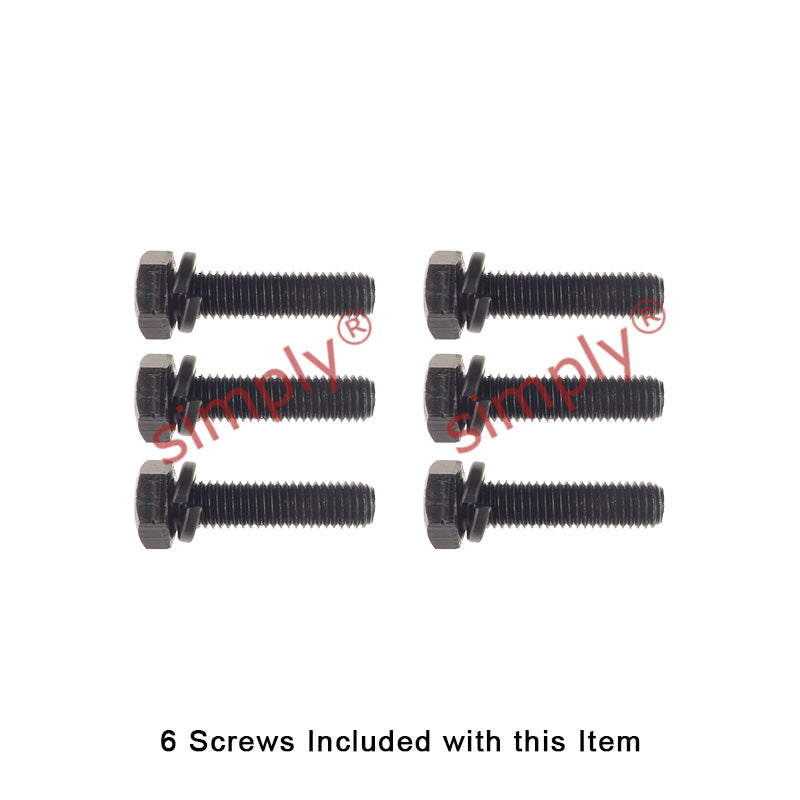

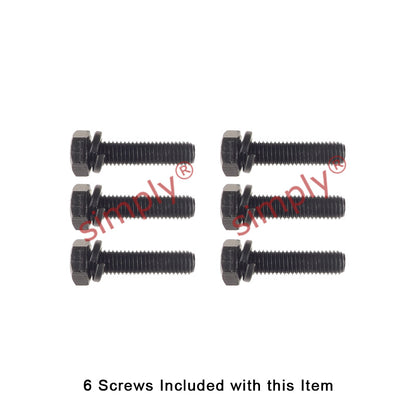

H Type - Screw Size M12
H Type - Tigtening Torque 50 Nm
Max Power at 100 rpm 13.9 kW
Max Power at 200 rpm 27.9 kW
Max Power at 300 rpm 41.8 kW
Max Power at 400 rpm 55.7 kW
Max Power at 500 rpm 69.6 kW
Max Power at 600 rpm 93.6 kW
Max Power at 700 rpm 97.5 kW
Max Power at 720 rpm 100 kW
Max Power at 800 rpm 111 kW
Max Power at 900 rpm 125 kW
Max Power at 960 rpm 134 kW
Max Power at 1000 rpm 139 kW
Max Power at 1200 rpm 167 kW
Max Power at 1400 rpm 195 kW
Max Power at 1440 rpm 201 kW
Max Power at 1600 rpm 223 kW
Max Power at 1800 rpm 251 kW
Max Power at 2000 rpm 279 kW
Maximum Speed 2050 rev/min
Nominal Torque 1330 Nm TKN
Maximum Torque 3547 Nm TK MAX
Torsional Stiffness 296 Nm/&deg;
Max. Parallel Misalignment 3.2mm
Maximum End Float 4mm &plusmn;
Approximate Mass 2.3kg
Alternating Torque 591 &plusmn; Nm @ 10Hz TKW
Resonance Factor V B 7
Damping Coefficient &Oslash; 0.9
