SKU: F140B+F140B+F140T-MB

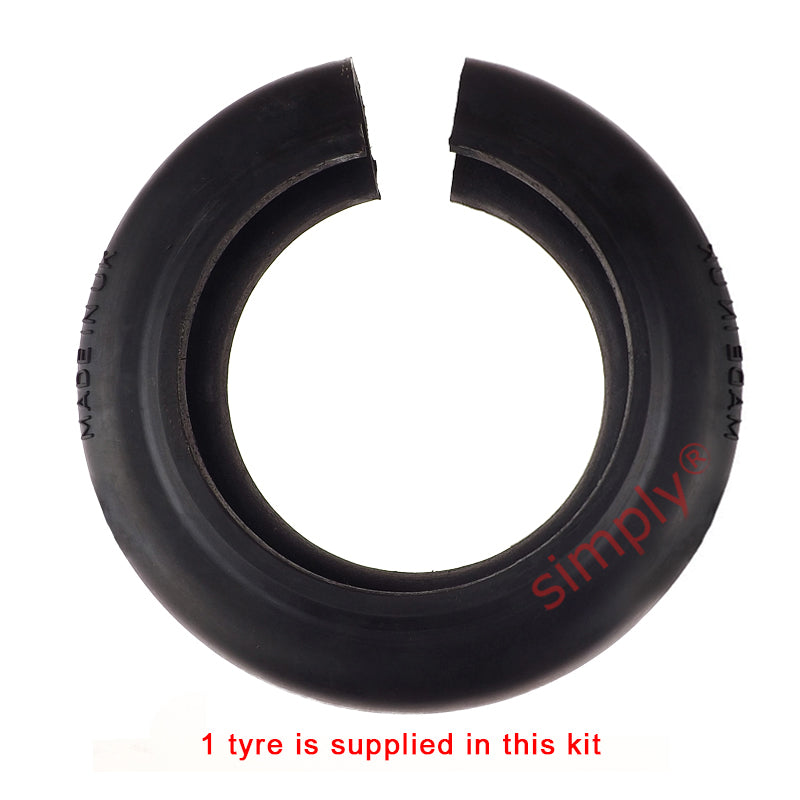

Major Branded F140B/F140B Pilot Bored Tyre Drive Coupling Assembly with Natural Rubber Tyre

Major Branded F140B/F140B Pilot Bored Tyre Drive Coupling Assembly with Natural Rubber Tyre
$648.91 ex VAT
$648.91 ex VAT
Sale Sold out

Equivalent to: F140B F140B F140T

In stock

Price Break
10+ $434.65
19+ $410.24
29+ $405.35
39+ $400.47
49+ $395.58
74+ $390.70
99+ $366.28
199+ $361.40
249+ $356.51
499+ $351.63
999+ $341.86

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Max Bore:
130mm
Technical
B Type - Max Bore 130mm
B Type - Flange A 359mm
B Type - Flange B 178mm
B Type - Flange C 311mm
B Type - Flange E 16mm
B Type - Flange F 110.5mm
B Type - Flange D 94mm
B Type - Clamping Screws M20
B Type - Flange Weight 31.55kg
B Type - Inertia 0.254kgm2
B Type - Flange Face Spacing 32mm
B Type - Gap Between Tyre Ends 5mm
B Type - Nominal Torque 2325 Nm
B Type - Max Speed 1800 rev/min
B Type - Max Par Mis 3.7mm
B Type - Max End Float 4.6mm
B Type - Screw Size M12
B Type - Tigtening Torque 55 Nm
Max Power at 100 rpm 24.3 kW
Max Power at 200 rpm 48.7 kW
Max Power at 300 rpm 73 kW
Max Power at 400 rpm 97.4 kW
Max Power at 500 rpm 122 kW
Max Power at 600 rpm 146 kW
Max Power at 700 rpm 170 kW
Max Power at 720 rpm 175 kW
Max Power at 800 rpm 195 kW
Max Power at 900 rpm 219 kW
Max Power at 960 rpm 234 kW
Max Power at 1000 rpm 243 kW
Max Power at 1200 rpm 292 kW
Max Power at 1400 rpm 341 kW
Max Power at 1440 rpm 351 kW
Max Power at 1600 rpm 390 kW
Max Power at 1800 rpm 438 kW
Maximum Speed 1800 rev/min
Nominal Torque 2325 Nm TKN
Maximum Torque 5642 Nm TK MAX
Torsional Stiffness 470 Nm/°
Max. Parallel Misalignment 3.7mm
Maximum End Float 4.6mm ±
Approximate Mass 2.6kg
Alternating Torque 940 ± Nm @ 10Hz TKW
Resonance Factor V B 7
Damping Coefficient Ø 0.9
