SKU: F160H+F160F+F160T-MB
Major Branded F160H/F160F Inner/Outer Facing Taper Bores Type Tyre Drive Coupling Assembly with Natural Rubber Tyre
- Regular price
- $804.01 ex VAT
- Sale price
- $804.01
- Regular price
-
Quantity Price Breaks
Major Branded F160H/F160F Inner/Outer Facing Taper Bores Type Tyre Drive Coupling Assembly with Natural Rubber Tyre
- Regular price
- $804.01 ex VAT
- Sale price
- $804.01
- Regular price
-
Description
Branded Inner/Outer Tapered Locking Bush Type Natural Rubber Tyre Drive Coupling Assembly with Natural Rubber Tyre: This type of coupling can accommodate simultaneous maximum misalignment in all planes without imposing undue loads on adjacent bearings.

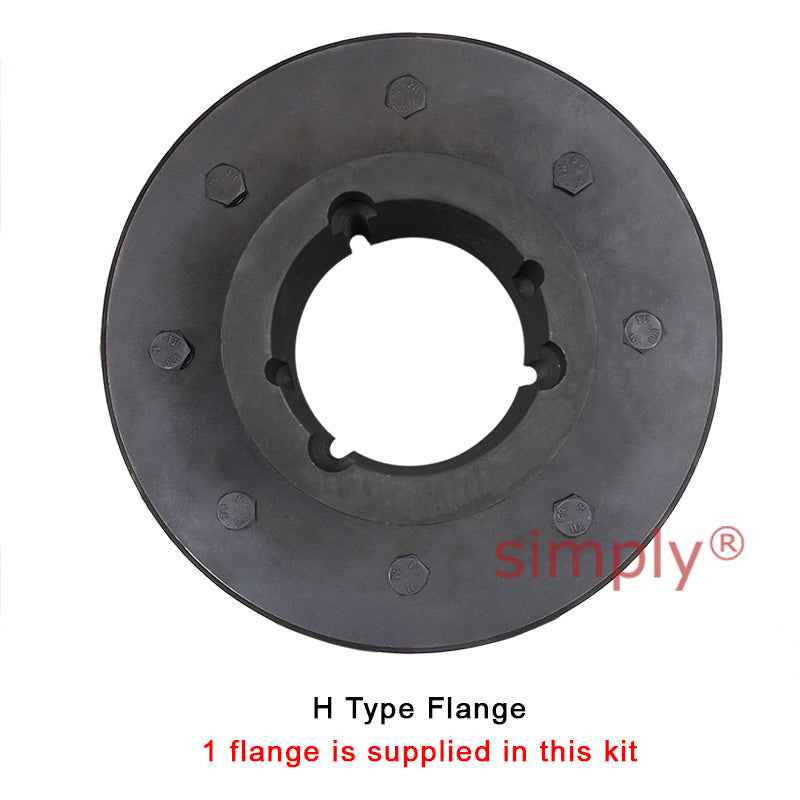

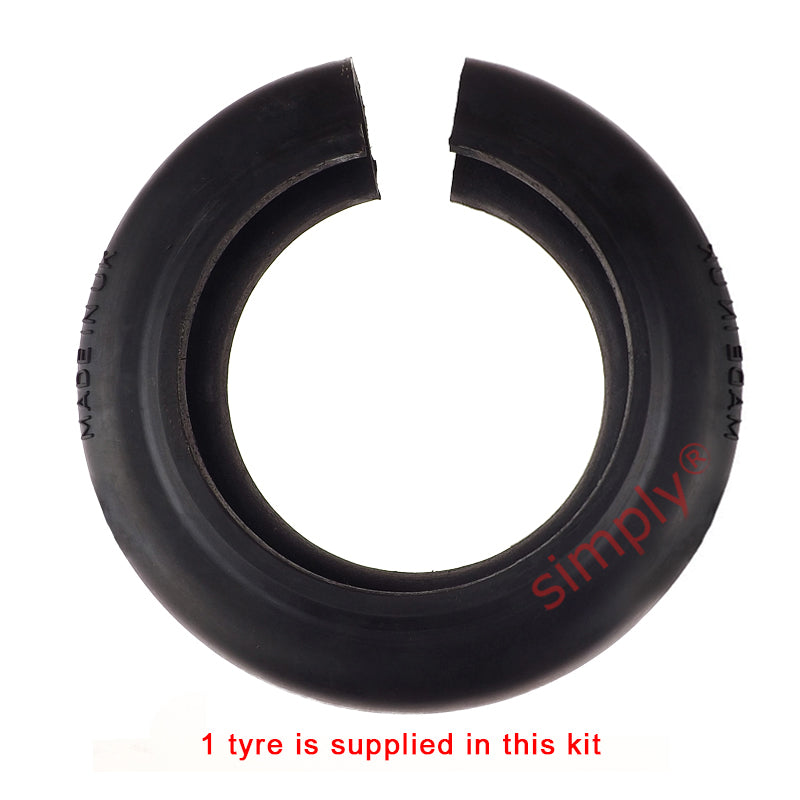

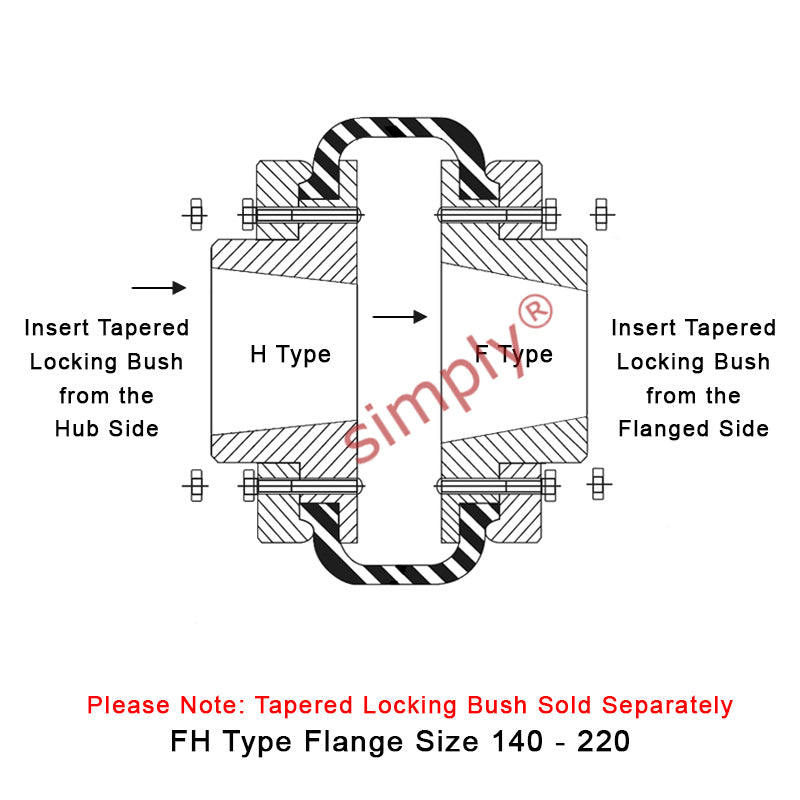

Supplied as a complete coupling assembly (except for tapered locking bushes as you will need to select the shaft size for your application). The assembly comprises of 2 steel flanges and a matching tyre element. This coupling assembly is the F type where the larger diameter of the taper bore is on the same side of the tyre clamping flange and the H type where the larger diameter of the taper bore is on the opposite side to the tyre clamping flange.
The natural rubber compound is suitable for use in ambient temperatures of -50 deg C to +50 deg C. The inserts has excellent shock absorbing properties of the insert reduces vibration and torsional oscillations.
Do you need a Fire Resistant Antistatic (F.R.A.S) rubber tyre. See links below.
