• Major Branded F180B-MB Drive Coupling Pilot Bore Max Bore 150mm
1 1

SKU: F180B-MB

Major Branded F180B-MB Drive Coupling Pilot Bore Max Bore 150mm

Major Branded F180B-MB Drive Coupling Pilot Bore Max Bore 150mm
$454.15 ex VAT
$454.15 ex VAT
Sale Sold out

Equivalent to: F180B

In stock

Price Break
10+ $304.20
19+ $287.11
29+ $283.70
39+ $280.28
49+ $276.86
74+ $273.44
99+ $256.35
199+ $252.93
249+ $249.52
499+ $246.10
999+ $239.26

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Max Bore:
150mm

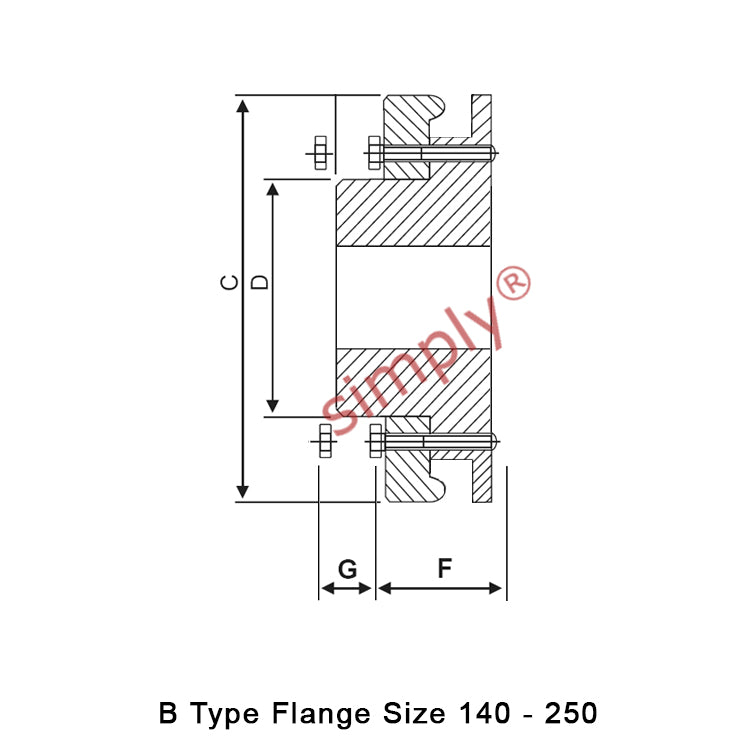

Technical
B Type - Max Bore 150mm
B Type - Flange A 470mm
B Type - Flange B 114mm
B Type - Flange C 398mm
B Type - Flange E 23mm
B Type - Flange F 137mm
B Type - Flange D 200mm
B Type - Clamping Screws M20
B Type - Flange Weight 62.2kg
B Type - Inertia 0.871kgm2
B Type - Flange Face Spacing 46mm
B Type - Gap Between Tyre Ends 6mm
B Type - Nominal Torque 6270 Nm
B Type - Max Speed 1500 rev/min
B Type - Max Par Mis 4.8mm
B Type - Max End Float 6mm
B Type - Screw Size M16
B Type - Tigtening Torque 105 Nm
Max Power at 100 rpm 65.7 kW
Max Power at 200 rpm 131 kW
Max Power at 300 rpm 197 kW
Max Power at 400 rpm 263 kW
Max Power at 500 rpm 328 kW
Max Power at 600 rpm 394 kW
Max Power at 700 rpm 460 kW
Max Power at 720 rpm 473 kW
Max Power at 800 rpm 525 kW
Max Power at 900 rpm 591 kW
Max Power at 960 rpm 630 kW
Max Power at 1000 rpm 657 kW
Max Power at 1200 rpm 788 kW
Max Power at 1400 rpm 919 kW
Max Power at 1440 rpm 945 kW
Maximum Speed 1500 rev/min
Nominal Torque 6270 Nm TKN
Maximum Torque 16455 Nm TK MAX
Torsional Stiffness 1371 Nm/°
Max. Parallel Misalignment 4.8mm
Maximum End Float 6mm ±
Approximate Mass 7.7kg
Alternating Torque 2742 ± Nm @ 10Hz TKW
Resonance Factor V B 7
Damping Coefficient Ø 0.9
