SKU: F180F+F180B+F180T-MB
Major Brand F180F/F180B Inner Facing Taper Bore/Pilot Bored Type Tyre Drive Coupling Assembly with Natural Rubber Tyre - Allow 2-3 Days
Equivalent to: F180F-4535 F180B F180T
Out of stock
Share this product
Description
Branded Inner Taper Bore/Pilot Bored Natural Rubber Tyre Drive Coupling Assembly with Natural Rubber Tyre: This type of coupling can accommodate simultaneous maximum misalignment in all planes without imposing undue loads on adjacent bearings.

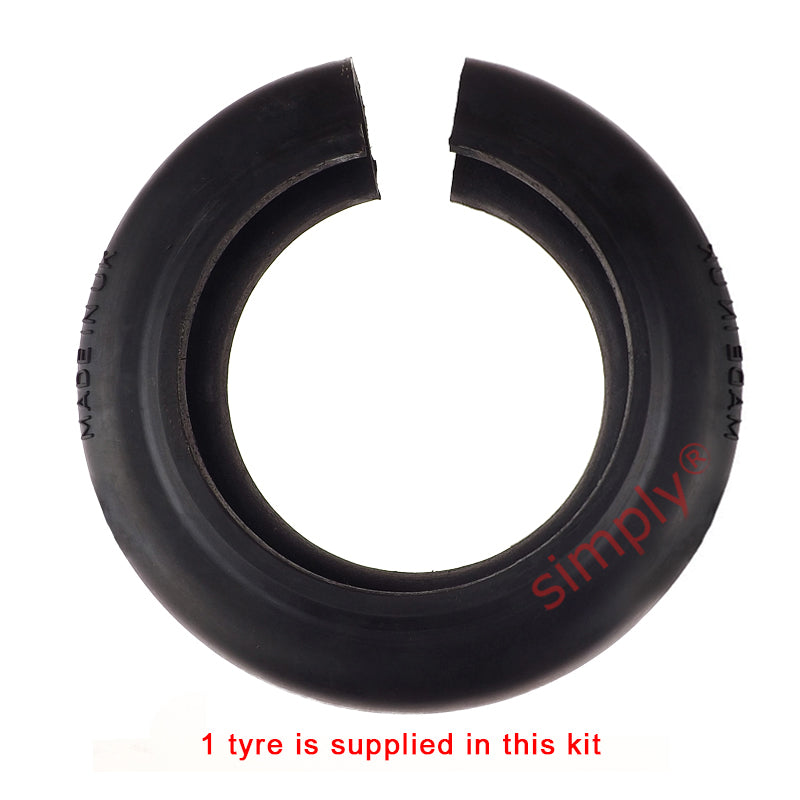

Supplied as a complete coupling assembly (except for tapered locking bushes as you will need to select the shaft size for your application). The assembly comprises of 2 steel flanges and a matching tyre element. This coupling assembly is the F type where the larger diameter of the taper bore is on the same side to the tyre clamping flange and the B type is supplied with a nominally sized pilot bore flange.
The natural rubber compound is suitable for use in ambient temperatures of -50 deg C to +50 deg C. The inserts has excellent shock absorbing properties of the insert reduces vibration and torsional oscillations.
Do you need a Fire Resistant Antistatic (F.R.A.S) rubber tyre. See links below.
- Brand / Quality:
- Major Brand - High Quality
- Max Bore:
- 125mm or 5 inch
Technical
| F Type - Bush | 4535 <a href="advanced_search_result.php?keywords=taper+lock+bush+4535">[Click Here]</a> |
|---|---|
| F Type - Max Bore | 125mm |
| F Type - Max Bore | 5 inch |
| F Type - Flange A | 470mm |
| F Type - Flange B | 205mm |
| F Type - Flange C | 398mm |
| F Type - Flange E | 23mm |
| F Type - Flange G | 89mm |
| F Type - Flange F | 112mm |
| F Type - Flange D | 89mm |
| F Type - Flange Weight | 46.6kg |
| F Type - Inertia | 0.847kgm2 |
| F Type - Flange Face Spacing | 46mm |
| F Type - Gap Between Tyre Ends | 6mm |
| F Type - Nominal Torque | 6270 Nm |
| F Type - Max Speed | 1500 rev/min |
| F Type - Max Par Mis | 4.8mm |
| F Type - Max End Float | 6mm |
| F Type - Screw Size | M16 |
| F Type - Tigtening Torque | 105 Nm |
| B Type - Max Bore | 150mm |
| B Type - Flange A | 470mm |
| B Type - Flange B | 200mm |
| B Type - Flange C | 398mm |
| B Type - Flange E | 23mm |
| B Type - Flange F | 137mm |
| B Type - Flange D | 114mm |
| B Type - Clamping Screws | M20 |
| B Type - Flange Weight | 62.2kg |
| B Type - Inertia | 0.871kgm2 |
| B Type - Flange Face Spacing | 46mm |
| B Type - Gap Between Tyre Ends | 6mm |
| B Type - Nominal Torque | 6270 Nm |
| B Type - Max Speed | 1500 rev/min |
| B Type - Max Par Mis | 4.8mm |
| B Type - Max End Float | 6mm |
| B Type - Screw Size | M16 |
| B Type - Tigtening Torque | 105 Nm |
| Max Power at 100 rpm | 65.7 kW |
| Max Power at 200 rpm | 131 kW |
| Max Power at 300 rpm | 197 kW |
| Max Power at 400 rpm | 263 kW |
| Max Power at 500 rpm | 328 kW |
| Max Power at 600 rpm | 394 kW |
| Max Power at 700 rpm | 460 kW |
| Max Power at 720 rpm | 473 kW |
| Max Power at 800 rpm | 525 kW |
| Max Power at 900 rpm | 591 kW |
| Max Power at 960 rpm | 630 kW |
| Max Power at 1000 rpm | 657 kW |
| Max Power at 1200 rpm | 788 kW |
| Max Power at 1400 rpm | 919 kW |
| Max Power at 1440 rpm | 945 kW |
| Maximum Speed | 1500 rev/min |
| Nominal Torque | 6270 Nm TKN |
| Maximum Torque | 16455 Nm TK MAX |
| Torsional Stiffness | 1371 Nm/° |
| Max. Parallel Misalignment | 4.8mm |
| Maximum End Float | 6mm ± |
| Approximate Mass | 7.7kg |
| Alternating Torque | 2742 ± Nm @ 10Hz TKW |
| Resonance Factor V B | 7 |
| Damping Coefficient Ø | 0.9 |
