SKU: F180H+F180B+F180T-MB
Major Brand F180H/F180B Outer Facing Taper Bore/Pilot Bored Tyre Drive Coupling Assembly with Natural Rubber Tyre - Allow 2-3 Days
Equivalent to: F180H-4535 F180B F180T
Out of stock
Description
Branded Outer Tapered Locking Bush/Pilot Bore Natural Rubber Tyre Drive Coupling Assembly with Natural Rubber Tyre: This type of coupling can accommodate simultaneous maximum misalignment in all planes without imposing undue loads on adjacent bearings.

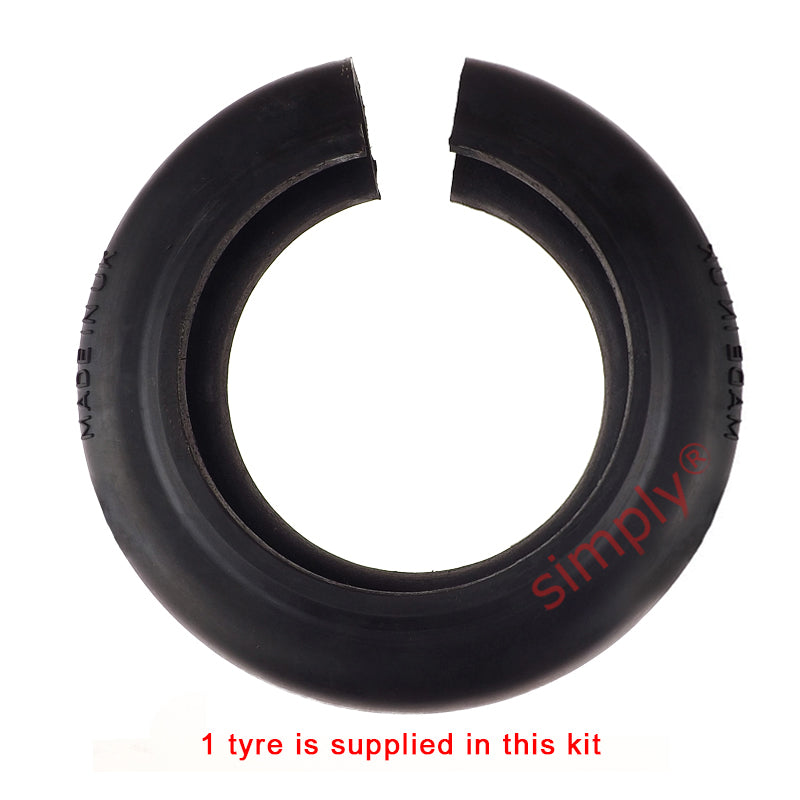

Supplied as a complete coupling assembly (except for tapered locking bushes as you will need to select the shaft size for your application). The assembly comprises of 2 steel flanges and a matching tyre element. This coupling assembly is the B type is supplied with a nominally sized pilot bore flange and the H type where the larger diameter of the taper bore is on the opposite side to the tyre clamping flange.
The natural rubber compound is suitable for use in ambient temperatures of -50 deg C to +50 deg C. The inserts has excellent shock absorbing properties of the insert reduces vibration and torsional oscillations.
Do you need a Fire Resistant Antistatic (F.R.A.S) rubber tyre. See links below.
- Brand / Quality:
- Major Brand - High Quality
- Max Bore:
- 125mm or 5 inch
Technical
| H Type - Bush | 4535 <a href="advanced_search_result.php?keywords=taper+lock+bush+4535">[Click Here]</a> |
|---|---|
| H Type - Max Bore | 125mm |
| H Type - Max Bore | 5 inch |
| H Type - Flange A | 470mm |
| H Type - Flange B | 205mm |
| H Type - Flange C | 398mm |
| H Type - Flange E | 23mm |
| H Type - Flange G | 89mm |
| H Type - Flange F | 112mm |
| H Type - Flange D | 89mm |
| H Type - Flange Weight | 42.2kg |
| H Type - Inertia | 0.847kgm2 |
| H Type - Flange Face Spacing | 46mm |
| H Type - Gap Between Tyre Ends | 6mm |
| H Type - Nominal Torque | 6270 Nm |
| H Type - Max Speed | 1500 rev/min |
| H Type - Max Par Mis | 4.8mm |
| H Type - Max End Float | 6mm |
| H Type - Screw Size | M16 |
| H Type - Tigtening Torque | 105 Nm |
| B Type - Max Bore | 150mm |
| B Type - Flange A | 470mm |
| B Type - Flange B | 200mm |
| B Type - Flange C | 398mm |
| B Type - Flange E | 23mm |
| B Type - Flange F | 137mm |
| B Type - Flange D | 114mm |
| B Type - Clamping Screws | M20 |
| B Type - Flange Weight | 62.2kg |
| B Type - Inertia | 0.871kgm2 |
| B Type - Flange Face Spacing | 46mm |
| B Type - Gap Between Tyre Ends | 6mm |
| B Type - Nominal Torque | 6270 Nm |
| B Type - Max Speed | 1500 rev/min |
| B Type - Max Par Mis | 4.8mm |
| B Type - Max End Float | 6mm |
| B Type - Screw Size | M16 |
| B Type - Tigtening Torque | 105 Nm |
| Max Power at 100 rpm | 65.7 kW |
| Max Power at 200 rpm | 131 kW |
| Max Power at 300 rpm | 197 kW |
| Max Power at 400 rpm | 263 kW |
| Max Power at 500 rpm | 328 kW |
| Max Power at 600 rpm | 394 kW |
| Max Power at 700 rpm | 460 kW |
| Max Power at 720 rpm | 473 kW |
| Max Power at 800 rpm | 525 kW |
| Max Power at 900 rpm | 591 kW |
| Max Power at 960 rpm | 630 kW |
| Max Power at 1000 rpm | 657 kW |
| Max Power at 1200 rpm | 788 kW |
| Max Power at 1400 rpm | 919 kW |
| Max Power at 1440 rpm | 945 kW |
| Maximum Speed | 1500 rev/min |
| Nominal Torque | 6270 Nm TKN |
| Maximum Torque | 16455 Nm TK MAX |
| Torsional Stiffness | 1371 Nm/° |
| Max. Parallel Misalignment | 4.8mm |
| Maximum End Float | 6mm ± |
| Approximate Mass | 7.7kg |
| Alternating Torque | 2742 ± Nm @ 10Hz TKW |
| Resonance Factor V B | 7 |
| Damping Coefficient Ø | 0.9 |
