SKU: F208-FAG

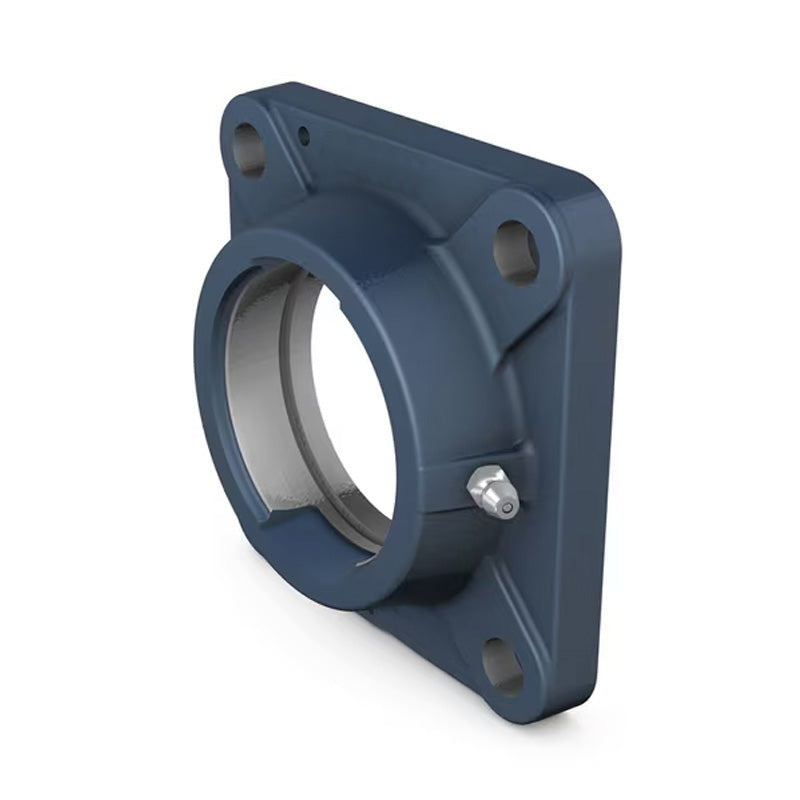

FAG F208 Four Bolt Cast Iron Square Flanged Housing (Insert not included)
FAG F208 Four Bolt Cast Iron Square Flanged Housing (Insert not included)
Regular price
$17.87
ex VAT
Regular price
Sale price
$17.87
ex VAT
In stock
Price Break
10+
$11.97
19+
$11.30
29+
$11.16
39+
$11.03
49+
$10.89
74+
$10.76
99+
$10.09
199+
$9.95
249+
$9.82
499+
$9.68
999+
$9.42
Quantity
Couldn't load pickup availability
Share this product
Description
Description
FAG F208 Four Bolt Square Housing Unit: This housing unit is not supplied with a bearing insert pre-installed. The inserts (available separately) can be installed into the housings and removed for future replacement as required.
Benefits: Cost effective housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Benefits: Cost effective housing assembly, re-lubricatable, replaceable insert, grub screw fixing
- Brand / Quality:
- FAG - High Quality
- Style:
- F
- Bolt Hole Centres:
- 102mm
Technical
Technical
| d | 40mm |
|---|---|
| L | 130mm |
| U | 51.2mm |
| A | 36mm |
| A1 | 16mm |
| A2 | 21mm |
| B | 49.2mm |
| J | 102mm |
| N | 16mm |
| Weight | 1.91kg |
