SKU: F4-10-EU

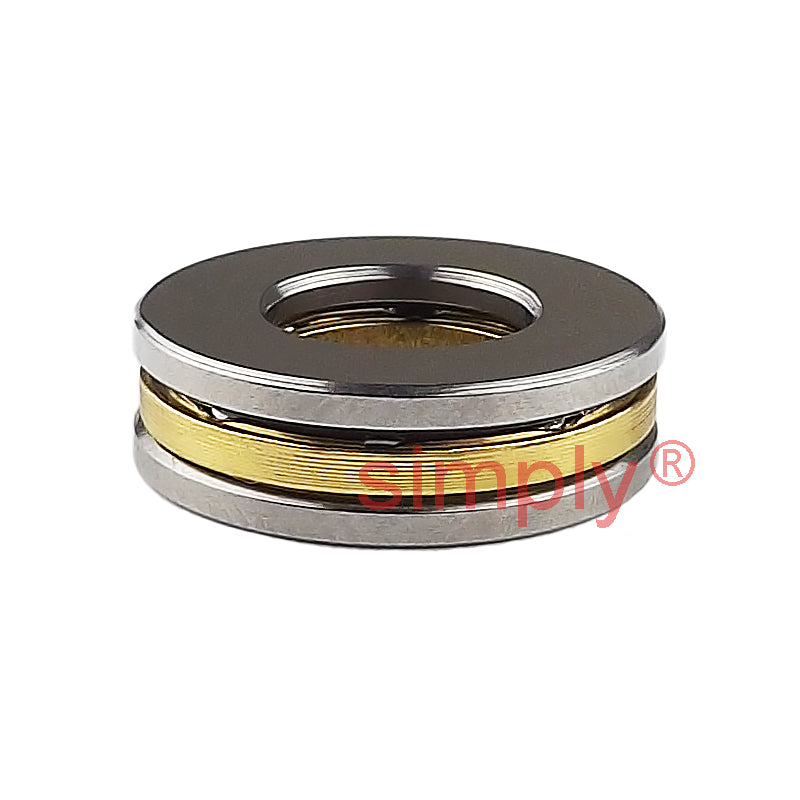

F4-10 Budget Single Thrust Ball Bearing 4x10x4.5mm
F4-10 Budget Single Thrust Ball Bearing 4x10x4.5mm
Regular price
$6.38
ex VAT
Regular price
Sale price
$6.38
ex VAT
In stock
Price Break
10+
$4.27
19+
$4.03
29+
$3.98
39+
$3.94
49+
$3.89
74+
$3.84
99+
$3.60
199+
$3.55
249+
$3.50
499+
$3.46
999+
$3.36
Quantity
Couldn't load pickup availability
Description
Description
Thrust Ball Thrust Bearings: These bearings consist of three parts, a shaft and a housing washer and a caged ball bearing assembly that is sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in one direction. Clearance is provided in the bore of one of the raceways to allow for alignment.
Benefits: Axial loading, ease of mounting and assembly
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 4mm
- Outside Diameter:
- 10mm
- Width:
- 4.5mm
Technical
Technical
| d | 4mm (+/-0.008mm) |
|---|---|
| D | 10mm (+0/-0.011mm) |
| H | 4.5mm(+0/-0.075mm) |
| r1r2 min | 0.15mm |
| Dynamic load C | 0.35 kN |
| Static load Co | 0.25 kN |
| Weight | 0.002 kg |
| Limiting Speed | 21000 rpm |
| Lubrication | Light Oil AF2 |
| Material | Balls & Washers, Chrome Steel, Brass or 304 Stainless Steel Cage |
