SKU: F5-10G-EU

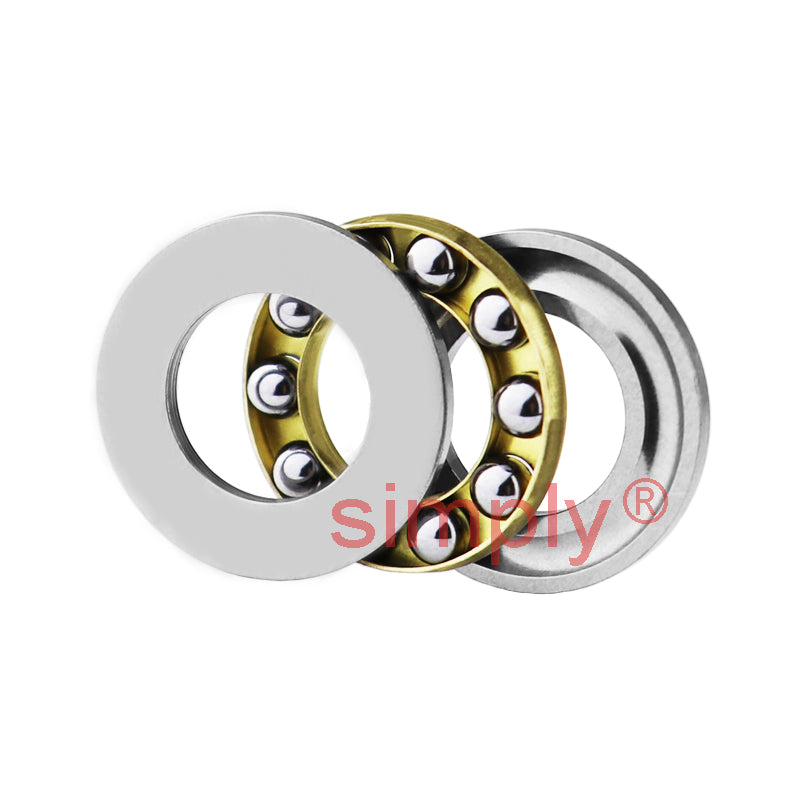

F5-10G Budget Single Thrust Ball Bearing with Grooved Washers 5x10x4mm
F5-10G Budget Single Thrust Ball Bearing with Grooved Washers 5x10x4mm
Regular price
$4.25
ex VAT
Regular price
Sale price
$4.25
ex VAT
In stock
Price Break
10+
$2.85
19+
$2.69
29+
$2.66
39+
$2.63
49+
$2.59
74+
$2.56
99+
$2.40
199+
$2.37
249+
$2.34
499+
$2.31
999+
$2.24
Quantity
Couldn't load pickup availability
Description
Description
Thrust Ball Thrust Bearings: These bearings consist of three parts, a shaft and housing washer that have angular grooves in them and a caged ball bearing assembly that is sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in one direction. Clearance is provided in the bore of one of the raceways to allow for alignment.
Benefits: Axial loading, ease of mounting and assembly
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 5mm
- Outside Diameter:
- 10mm
- Width:
- 4mm
Technical
Technical
| d | 5mm (+0/-0.05mm) |
|---|---|
| D | 10mm (+0.005/-0.020mm) |
| H | 4mm (+0/-0.075mm) |
| d1 | 4.2mm (+0/-0.011mm) |
| D1 | 8.8mm (+0/-0.008mm) |
| r1r2 min | 0.2mm |
| Dynamic load C | 0.902 kN |
| Static load Co | 0.912 kN |
| Limiting speed | 21000 rpm |
| Weight | 0.0014 kg |
| Material | Balls & Washers, Chrome Steel, Brass or 304 Stainless Steel Cage |
