SKU: F5-11-EU

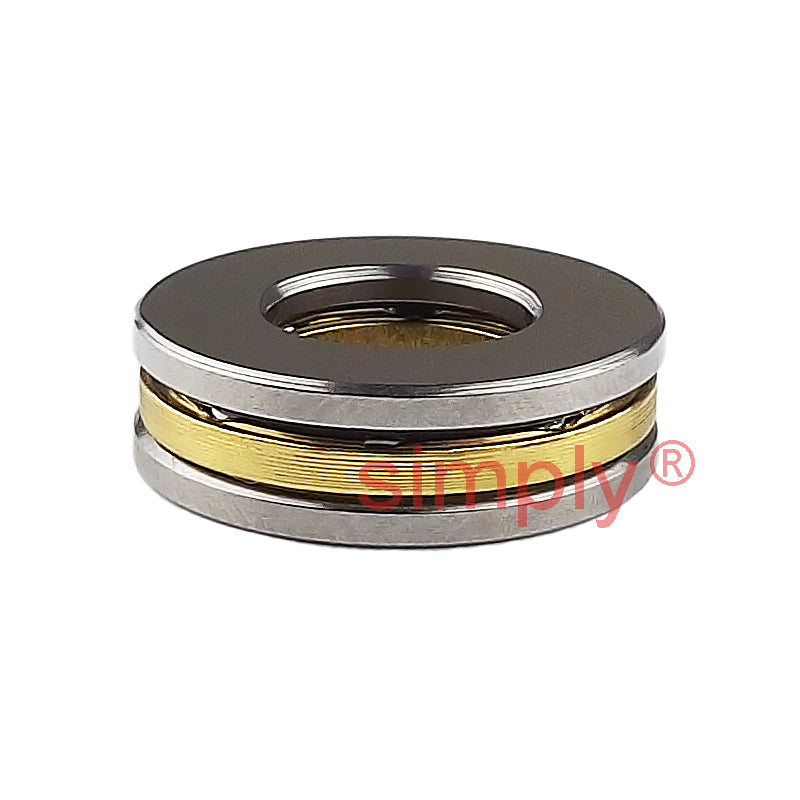

F5-11 Budget Single Thrust Ball Bearing 5x11x4.5mm
F5-11 Budget Single Thrust Ball Bearing 5x11x4.5mm
Regular price
$3.57
ex VAT
Regular price
Sale price
$3.57
ex VAT
In stock
Price Break
10+
$2.39
19+
$2.26
29+
$2.23
39+
$2.20
49+
$2.18
74+
$2.15
99+
$2.02
199+
$1.99
249+
$1.96
499+
$1.94
999+
$1.88
Quantity
Couldn't load pickup availability
Description
Description
Thrust Ball Thrust Bearings: These bearings consist of three parts, a shaft and a housing washer and a caged ball bearing assembly that is sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in one direction. Clearance is provided in the bore of one of the raceways to allow for alignment.
Benefits: Axial loading, ease of mounting and assembly
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 5mm
- Outside Diameter:
- 11mm
- Width:
- 4.5mm
Technical
Technical
| d | 5mm (+/-0.008mm) |
|---|---|
| D | 11mm (+0/-0.011mm) |
| H | 4.5mm (+0/-0.075mm) |
| r1r2 min | 0.2mm |
| Dynamic load C | 0.33 kN |
| Static load Co | 0.245 kN |
| Weight | 0.001 kg |
| Limiting Speed | 19000 rpm |
| Lubrication | Light Oil AF2 |
| Material | Balls & Washers, Chrome Steel, Brass or 304 Stainless Steel Cage |
