SKU: F60B-MB

Major Branded F60B-MB Drive Coupling Pilot Bore Max Bore 45mm

Major Branded F60B-MB Drive Coupling Pilot Bore Max Bore 45mm
$45.53 ex VAT
$45.53 ex VAT
Sale Sold out

Equivalent to: F60B

In stock

Price Break
10+ $30.50
19+ $28.79
29+ $28.45
39+ $28.10
49+ $27.76
74+ $27.42
99+ $25.70
199+ $25.36
249+ $25.02
499+ $24.68
999+ $23.99

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Max Bore:
45mm
Technical

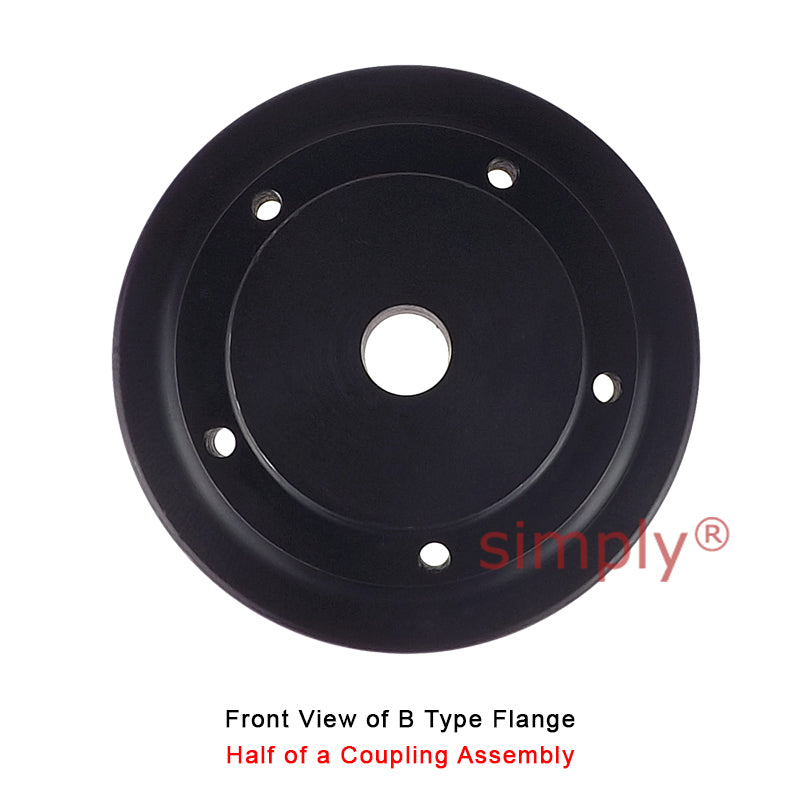

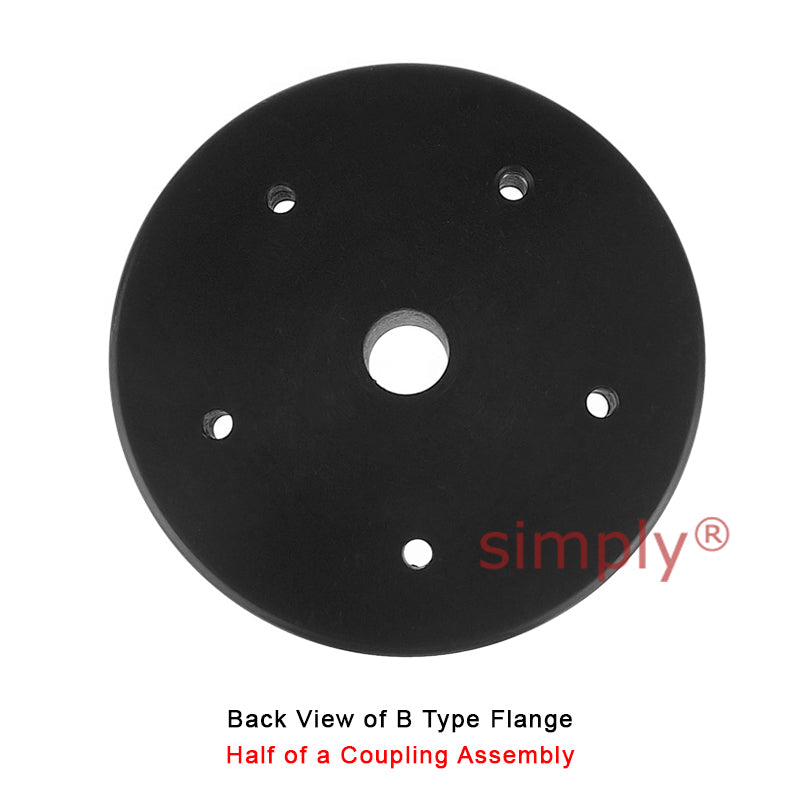

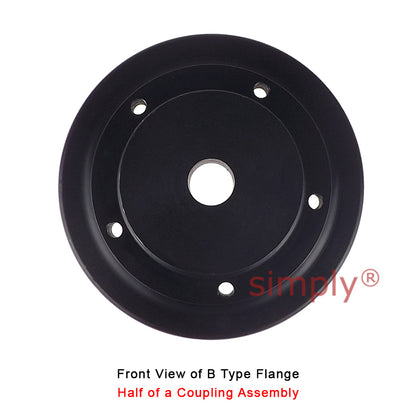

B Type - Max Bore 45mm
B Type - Flange A 165mm
B Type - Flange B 38mm
B Type - Flange C 125mm
B Type - Flange E 16.5mm
B Type - Flange G 38mm
B Type - Flange F 55mm
B Type - Flange D 70mm

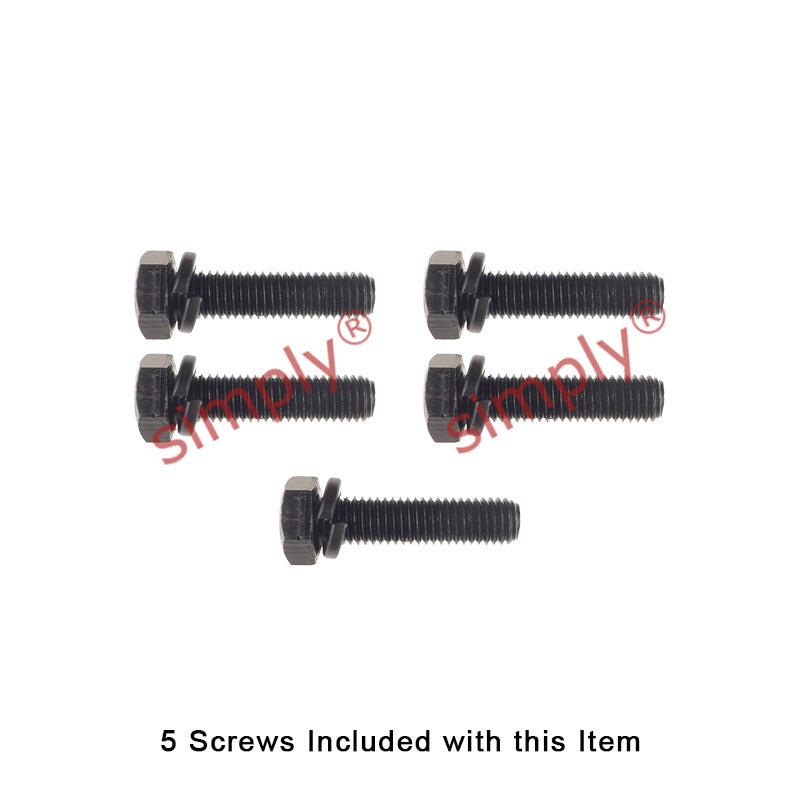

B Type - Clamping Screws M6
B Type - Flange Weight 2.74kg
B Type - Inertia 0.0052kgm2
B Type - Flange Face Spacing 33mm
B Type - Gap Between Tyre Ends 2mm
B Type - Nominal Torque 127 Nm
B Type - Max Speed 4000 rev/min
B Type - Max Par Mis 1.6mm
B Type - Max End Float 2mm
B Type - Screw Size M6
B Type - Tigtening Torque 15 Nm
Max Power at 100 rpm 1.33 kW
Max Power at 200 rpm 2.66 kW
Max Power at 300 rpm 3.99 kW
Max Power at 400 rpm 5.32 kW
Max Power at 500 rpm 6.65 kW
Max Power at 600 rpm 7.98 kW
Max Power at 700 rpm 9.31 kW
Max Power at 720 rpm 9.57 kW
Max Power at 800 rpm 10.6 kW
Max Power at 900 rpm 12 kW
Max Power at 960 rpm 12.8 kW
Max Power at 1000 rpm 13.3 kW
Max Power at 1200 rpm 16 kW
Max Power at 1400 rpm 18.6 kW
Max Power at 1440 rpm 19.1 kW
Max Power at 1600 rpm 21.3 kW
Max Power at 1800 rpm 23.9 kW
Max Power at 2000 rpm 26.6 kW
Max Power at 2200 rpm 29.3 kW
Max Power at 2400 rpm 31.9 kW
Max Power at 2600 rpm 34.6 kW
Maximum Speed 4000 rev/min
Nominal Torque 127 Nm TKN
Maximum Torque 318 Nm TK MAX
Torsional Stiffness 26 Nm/°
Max. Parallel Misalignment 1.6mm
Maximum End Float 2mm ±
Approximate Mass 0.5kg
Alternating Torque 53 ± Nm @ 10Hz TKW
Resonance Factor V B 7
Damping Coefficient Ø 0.9
