SKU: F7-13G

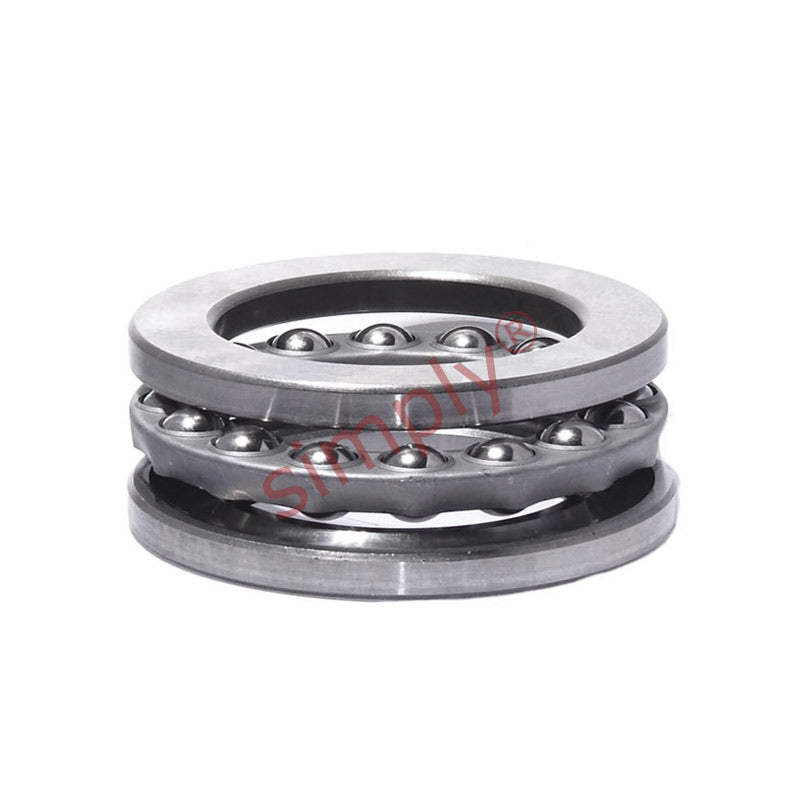

F7-13G Branded Precision Miniature Thrust Ball Bearing 7x13x4.5mm
- Regular price
- $9.48 ex VAT
- Sale price
- $9.48
- Regular price
-
In stock
Quantity Price Breaks
10
$8.44
19
$7.96
29
$7.87
39
$7.77
49
$7.68
74
$7.58
99
$7.11
199
$7.02
249
$6.92
499
$6.83
999
$6.64
SKU:
F7-13G
F7-13G Branded Precision Miniature Thrust Ball Bearing 7x13x4.5mm
- Regular price
- $9.48 ex VAT
- Sale price
- $9.48
- Regular price
-
Description
|
Thrust Ball Thrust Bearings: These bearings consist of three parts, a shaft and housing washer that have annular grooves in them and a caged ball bearing assembly that is sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in one direction. Clearance is provided in the bore of one of the raceways to allow for alignment. Benefits: Axial loading, ease of mounting and assembly |
Technical
| d | = | 7mm (+0/-0.008) |
| D | = | 13mm (+0/-0.011) |
| H | = | 4.5mm (+0/-0.075) |
| C | = | 12.8mm (+0.005/-0.020) |
| A | = | 7.2mm (+0/-0.05) |
| F | = | 0.2mm |
| Lubrication | = | Light Oil (AF2) |
| Max speed | = | 20000 rpm with adequate lubrication |
| Dynamic load | = | 215 kgf |
| Static load | = | 170 kgf |
