SKU: F70B-MB

Major Branded F70B-MB Drive Coupling Pilot Bore Max Bore 50mm

Major Branded F70B-MB Drive Coupling Pilot Bore Max Bore 50mm
$52.54 ex VAT
$52.54 ex VAT
Sale Sold out

Equivalent to: F70B

In stock

Price Break
10+ $35.19
19+ $33.21
29+ $32.81
39+ $32.42
49+ $32.02
74+ $31.63
99+ $29.65
199+ $29.26
249+ $28.86
499+ $28.47
999+ $27.67

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Max Bore:
50mm
Technical

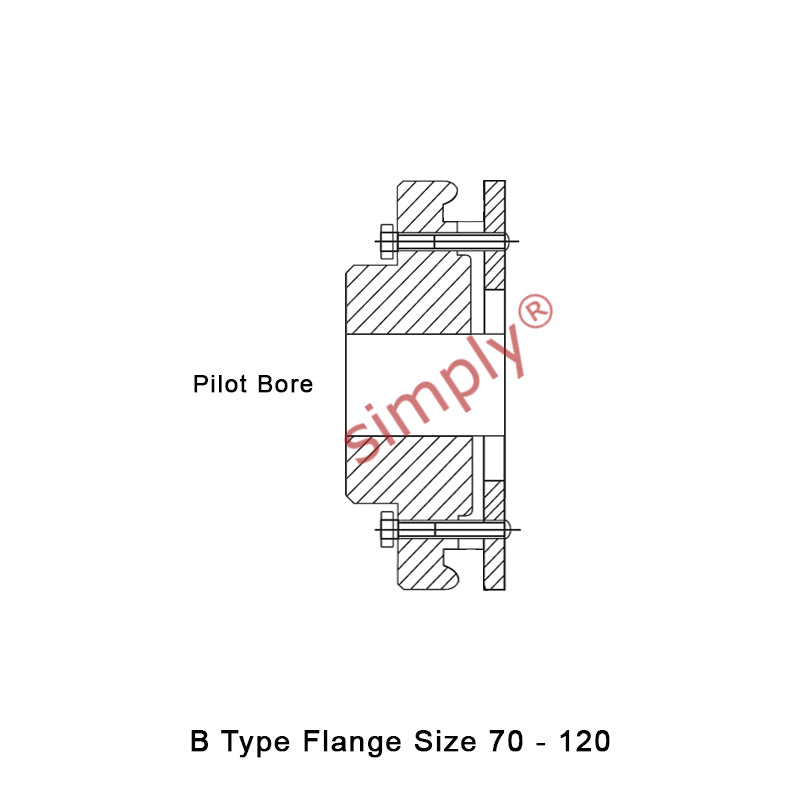

B Type - Max Bore 50mm
B Type - Flange A 187mm
B Type - Flange B 35mm
B Type - Flange C 144mm
B Type - Flange E 11.5mm
B Type - Flange F 47mm
B Type - Flange D 80mm
B Type - Clamping Screws M10
B Type - Flange Weight 3.4kg
B Type - Inertia 0.009kgm2
B Type - Flange Face Spacing 23mm
B Type - Gap Between Tyre Ends 3mm
B Type - Nominal Torque 250 Nm
B Type - Max Speed 3600 rev/min
B Type - Max Par Mis 1.9mm
B Type - Max End Float 2.3mm

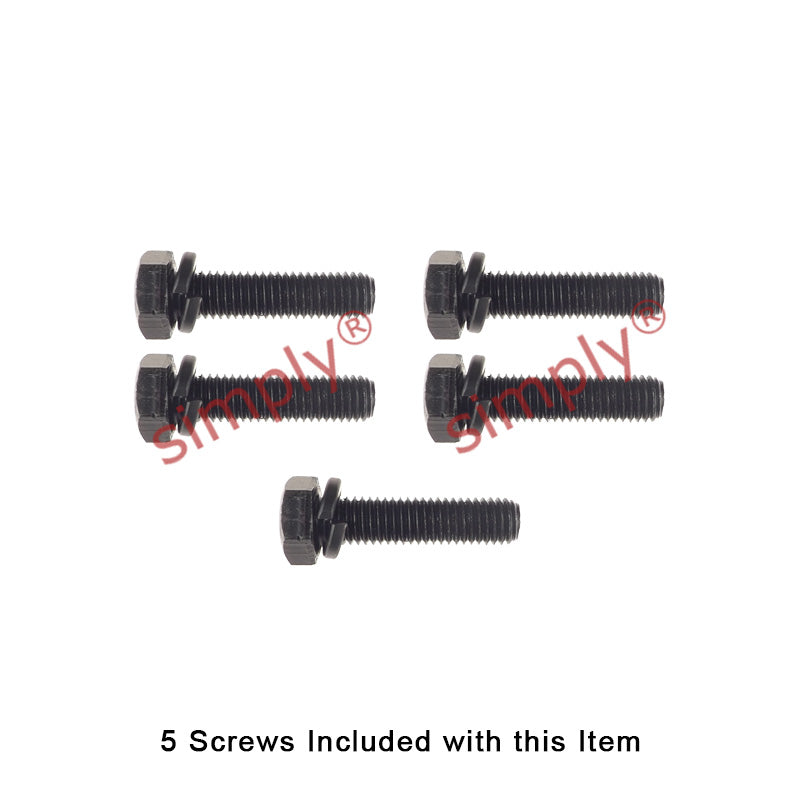

B Type - Screw Size M8
B Type - Tigtening Torque 24 Nm
Max Power at 100 rpm 2.62 kW
Max Power at 200 rpm 5.24 kW
Max Power at 300 rpm 7.85 kW
Max Power at 400 rpm 10.5 kW
Max Power at 500 rpm 13.1 kW
Max Power at 600 rpm 15.7 kW
Max Power at 700 rpm 18.3 kW
Max Power at 720 rpm 18.8 kW
Max Power at 800 rpm 20.9 kW
Max Power at 900 rpm 23.6 kW
Max Power at 960 rpm 25.1 kW
Max Power at 1000 rpm 26.2 kW
Max Power at 1200 rpm 31.4 kW
Max Power at 1400 rpm 36.6 kW
Max Power at 1440 rpm 37.7 kW
Max Power at 1600 rpm 41.9 kW
Max Power at 1800 rpm 47.1 kW
Max Power at 2000 rpm 52.4 kW
Max Power at 2200 rpm 57.6 kW
Max Power at 2400 rpm 62.8 kW
Max Power at 2600 rpm 68.1 kW
Maximum Speed 3600 rev/min
Nominal Torque 250 Nm TKN
Maximum Torque 487 Nm TK MAX
Torsional Stiffness 41 Nm/°
Max. Parallel Misalignment 1.9mm
Maximum End Float 2.3mm ±
Approximate Mass 0.7kg
Alternating Torque 81 ± Nm @ 10Hz TKW
Resonance Factor V B 7
Damping Coefficient Ø 0.9
