SKU: F8-16-EU

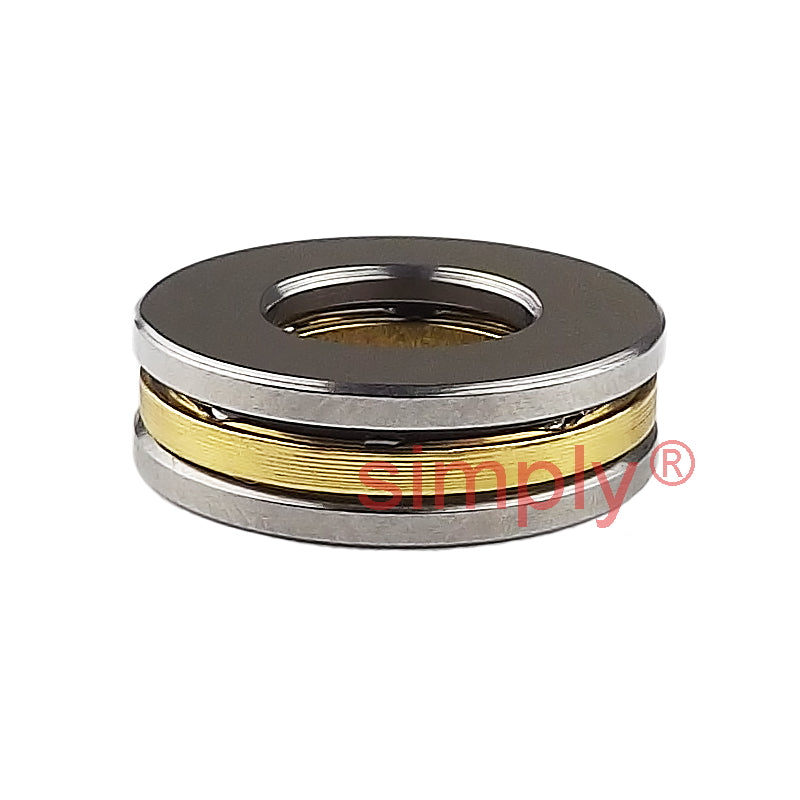

F8-16 Budget Single Thrust Ball Bearing 8x16x5mm
F8-16 Budget Single Thrust Ball Bearing 8x16x5mm
Regular price
$4.48
ex VAT
Regular price
Sale price
$4.48
ex VAT
In stock
Price Break
10+
$3.00
19+
$2.83
29+
$2.80
39+
$2.77
49+
$2.73
74+
$2.70
99+
$2.53
199+
$2.50
249+
$2.46
499+
$2.43
999+
$2.36
Quantity
Couldn't load pickup availability
Description
Description
Thrust Ball Thrust Bearings: These bearings consist of three parts, a shaft and a housing washer and a caged ball bearing assembly that is sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in one direction. Clearance is provided in the bore of one of the raceways to allow for alignment.
Benefits: Axial loading, ease of mounting and assembly
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 8mm
- Outside Diameter:
- 16mm
- Width:
- 5mm
Technical
Technical
| d | 8mm (+/-0.008mm) |
|---|---|
| D | 16mm (+0/-0.011mm) |
| H | 5mm (+0/-0.075mm) |
| r1r2 min | 0.3mm |
| Dynamic load C | 3.844 kN |
| Static load Co | 4.89 kN |
| Weight | 0.005 kg |
| Limiting Speed | 16000 rpm |
| Lubrication | Light Oil AF2 |
| Material | Balls & Washers, Chrome Steel, Brass or 304 Stainless Steel Cage |
