• Major Branded F80H-MB Drive Coupling Outer Tapered Locking Bush Type Max Bush Bore 50mm / 2 inch
  • Major Branded F80H-MB Drive Coupling Outer Tapered Locking Bush Type Max Bush Bore 50mm / 2 inch
  • Major Branded F80H-MB Drive Coupling Outer Tapered Locking Bush Type Max Bush Bore 50mm / 2 inch
  • Major Branded F80H-MB Drive Coupling Outer Tapered Locking Bush Type Max Bush Bore 50mm / 2 inch
  • Major Branded F80H-MB Drive Coupling Outer Tapered Locking Bush Type Max Bush Bore 50mm / 2 inch
  • Major Branded F80H-MB Drive Coupling Outer Tapered Locking Bush Type Max Bush Bore 50mm / 2 inch
1 6

SKU: F80H-MB

Major Branded F80H-MB Drive Coupling Outer Tapered Locking Bush Type Max Bush Bore 50mm / 2 inch

Major Branded F80H-MB Drive Coupling Outer Tapered Locking Bush Type Max Bush Bore 50mm / 2 inch
$61.48 ex VAT
$61.48 ex VAT
Sale Sold out

Equivalent to: F80H-2012

In stock

Price Break
10+ $41.18
19+ $38.86
29+ $38.40
39+ $37.94
49+ $37.48
74+ $37.01
99+ $34.70
199+ $34.24
249+ $33.78
499+ $33.31
999+ $32.39

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Max Bore:
50mm or 2 inch
Technical
H Type - Bush 2012 <a href="advanced_search_result.php?keywords=taper+lock+bush+2012">[Click Here]</a>
H Type - Max Bore 50mm
H Type - Max Bore 2 inch
H Type - Flange A 211mm
H Type - Flange B 98mm
H Type - Flange C 167mm
H Type - Flange E 12.5mm
H Type - Flange G 42mm
H Type - Flange F 45mm
H Type - Flange D 32mm
H Type - Flange Weight 3.65kg
H Type - Inertia 0.017kgm2
H Type - Flange Face Spacing 25mm
H Type - Gap Between Tyre Ends 3mm
H Type - Nominal Torque 375 Nm
H Type - Max Speed 3100 rev/min
H Type - Max Par Mis 2.1mm
H Type - Max End Float 2.6mm

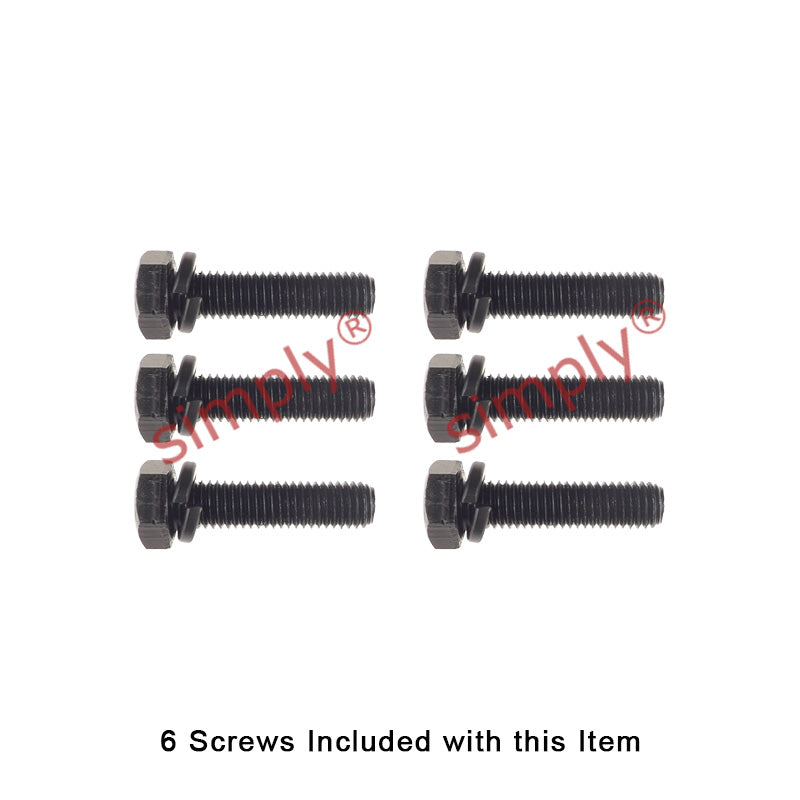

H Type - Screw Size M8
H Type - Tigtening Torque 24 Nm
Max Power at 100 rpm 3.93 kW
Max Power at 200 rpm 7.85 kW
Max Power at 300 rpm 11.8 kW
Max Power at 400 rpm 15.7 kW
Max Power at 500 rpm 19.6 kW
Max Power at 600 rpm 23.6 kW
Max Power at 700 rpm 27.5 kW
Max Power at 720 rpm 28.3 kW
Max Power at 800 rpm 31.4 kW
Max Power at 900 rpm 35.3 kW
Max Power at 960 rpm 37.7 kW
Max Power at 1000 rpm 39.3 kW
Max Power at 1200 rpm 47.1 kW
Max Power at 1400 rpm 55 kW
Max Power at 1440 rpm 56.5 kW
Max Power at 1600 rpm 62.8 kW
Max Power at 1800 rpm 70.5 kW
Max Power at 2000 rpm 78.5 kW
Max Power at 2200 rpm 86.4 kW
Max Power at 2400 rpm 94.2 kW
Max Power at 2600 rpm 102 kW
Maximum Speed 3100 rev/min
Nominal Torque 250 Nm TKN
Maximum Torque 487 Nm TK MAX
Torsional Stiffness 41 Nm/&deg;
Max. Parallel Misalignment 1.9mm
Maximum End Float 2.3mm &plusmn;
Approximate Mass 1kg
Alternating Torque 127 &plusmn; Nm @ 10Hz TKW
Resonance Factor V B 7
Damping Coefficient &Oslash; 0.9
