SKU: F90B-MB

Major Branded F90B-MB Drive Coupling Pilot Bore Max Bore 70mm

Major Branded F90B-MB Drive Coupling Pilot Bore Max Bore 70mm
$80.51 ex VAT
$80.51 ex VAT
Sale Sold out

Equivalent to: F90B

In stock

Price Break
10+ $53.92
19+ $50.89
29+ $50.29
39+ $49.68
49+ $49.08
74+ $48.47
99+ $45.44
199+ $44.84
249+ $44.23
499+ $43.62
999+ $42.41

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Max Bore:
70mm
Technical

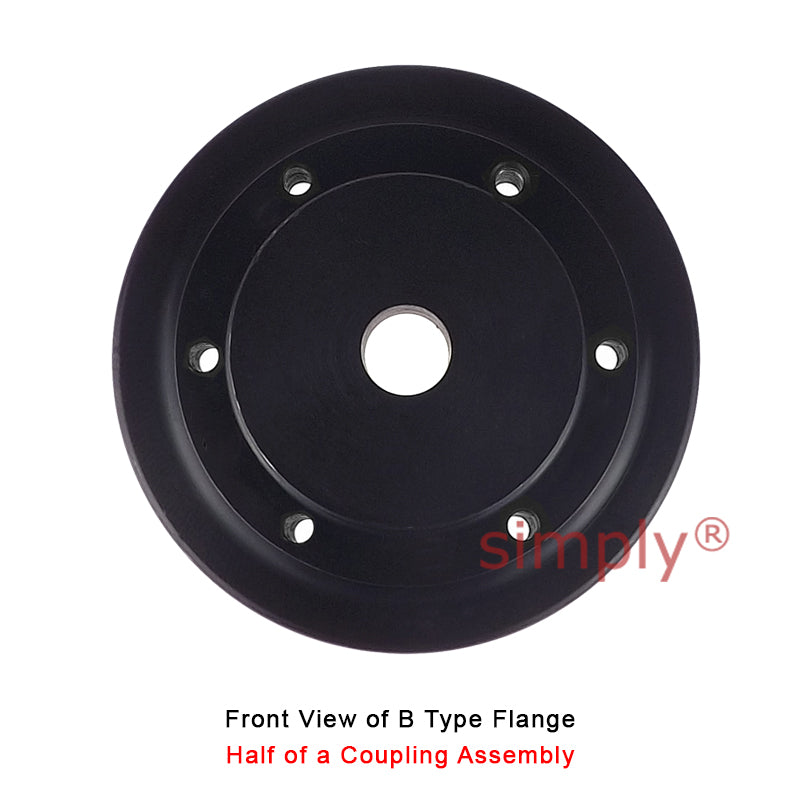

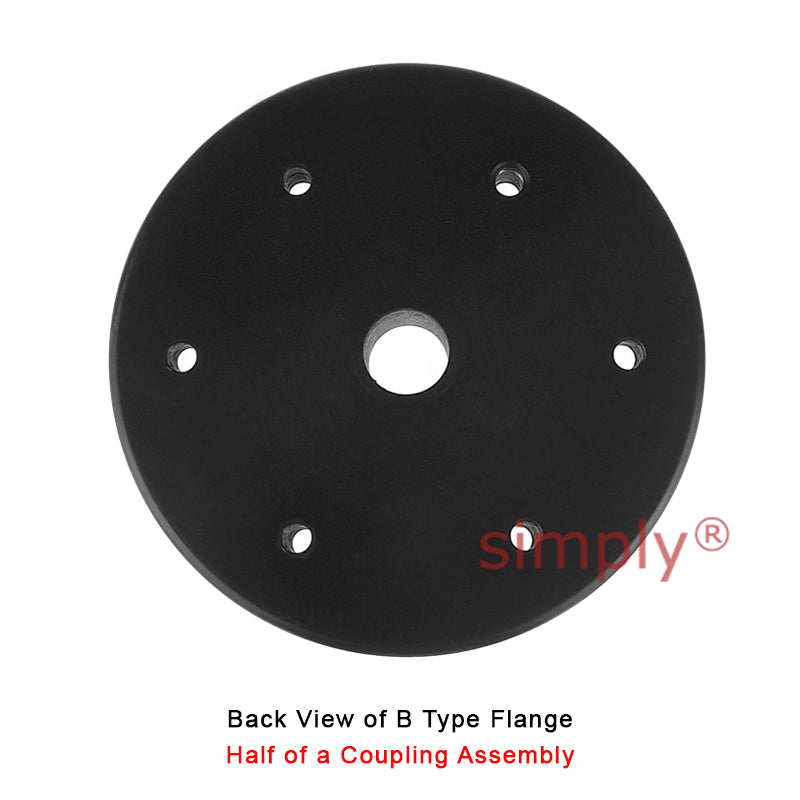

B Type - Max Bore 70mm
B Type - Flange A 235mm
B Type - Flange B 49mm
B Type - Flange C 188mm
B Type - Flange E 13.5mm
B Type - Flange F 63.5mm
B Type - Flange D 112mm
B Type - Clamping Screws M12
B Type - Flange Weight 7.55kg
B Type - Inertia 0.032kgm2
B Type - Flange Face Spacing 27mm
B Type - Gap Between Tyre Ends 3mm
B Type - Nominal Torque 500 Nm
B Type - Max Speed 3000 rev/min
B Type - Max Par Mis 2.4mm
B Type - Max End Float 3mm

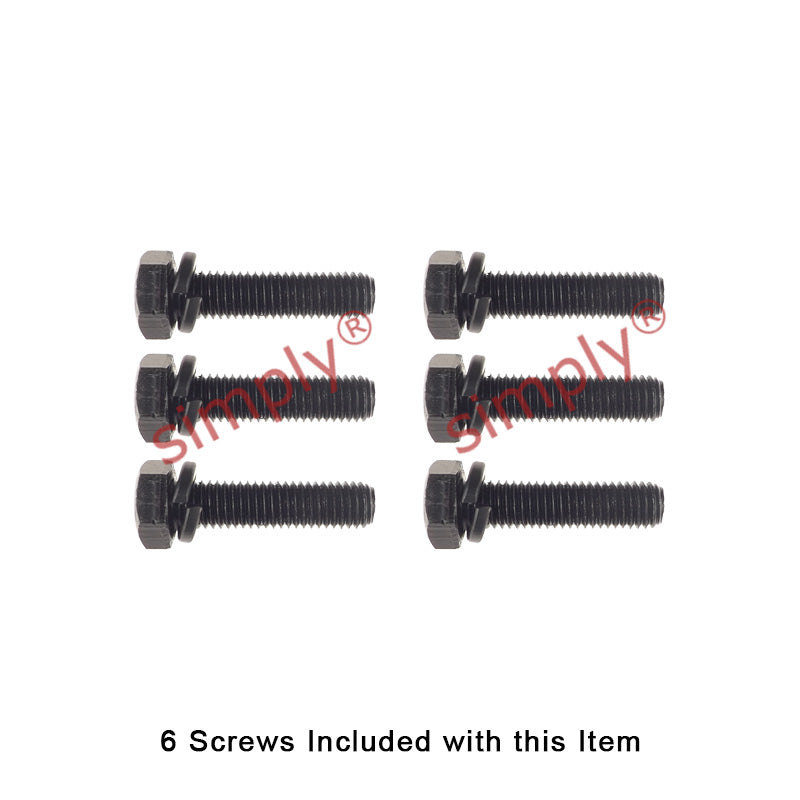

B Type - Screw Size M10
B Type - Tigtening Torque 40 Nm
Max Power at 100 rpm 5.24 kW
Max Power at 200 rpm 10.5 kW
Max Power at 300 rpm 15.7 kW
Max Power at 400 rpm 20.9 kW
Max Power at 500 rpm 26.2 kW
Max Power at 600 rpm 31.4 kW
Max Power at 700 rpm 36.6 kW
Max Power at 720 rpm 37.7 kW
Max Power at 800 rpm 41.9 kW
Max Power at 900 rpm 47.1 kW
Max Power at 960 rpm 50.3 kW
Max Power at 1000 rpm 52.4 kW
Max Power at 1200 rpm 62.8 kW
Max Power at 1400 rpm 73.3 kW
Max Power at 1440 rpm 75.4 kW
Max Power at 1600 rpm 83.8 kW
Max Power at 1800 rpm 94.2 kW
Max Power at 2000 rpm 105.5 kW
Max Power at 2200 rpm 115 kW
Max Power at 2400 rpm 126 kW
Max Power at 2600 rpm 136 kW
Maximum Speed 3000 rev/min
Nominal Torque 500 Nm TKN
Maximum Torque 1096 Nm TK MAX
Torsional Stiffness 91 Nm/°
Max. Parallel Misalignment 2.4mm
Maximum End Float 3mm ±
Approximate Mass 1.1kg
Alternating Torque 183 ± Nm @ 10Hz TKW
Resonance Factor V B 7
Damping Coefficient Ø 0.9
