SKU: FB-03-MB

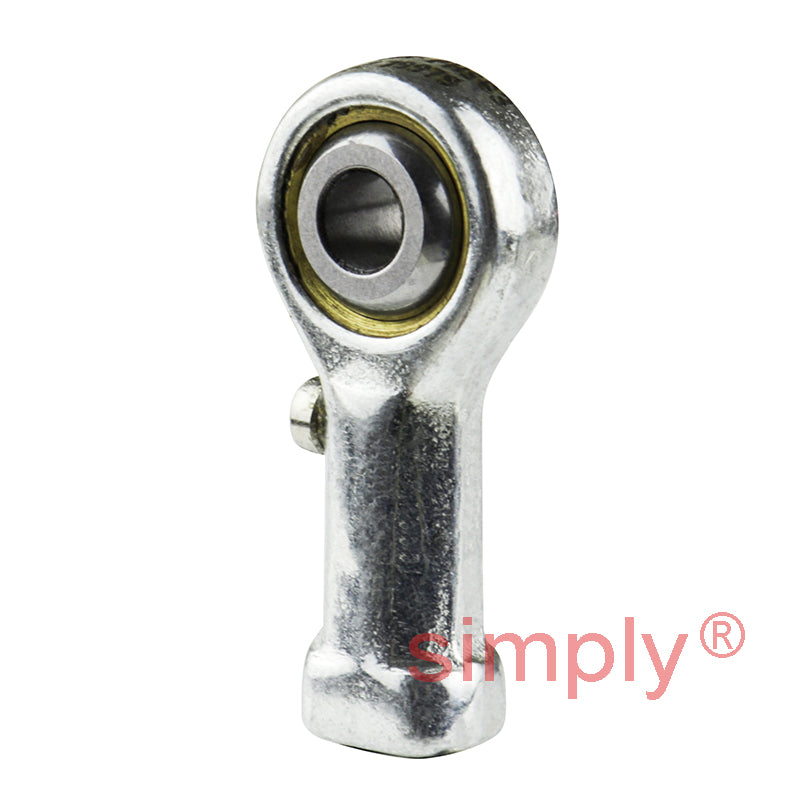

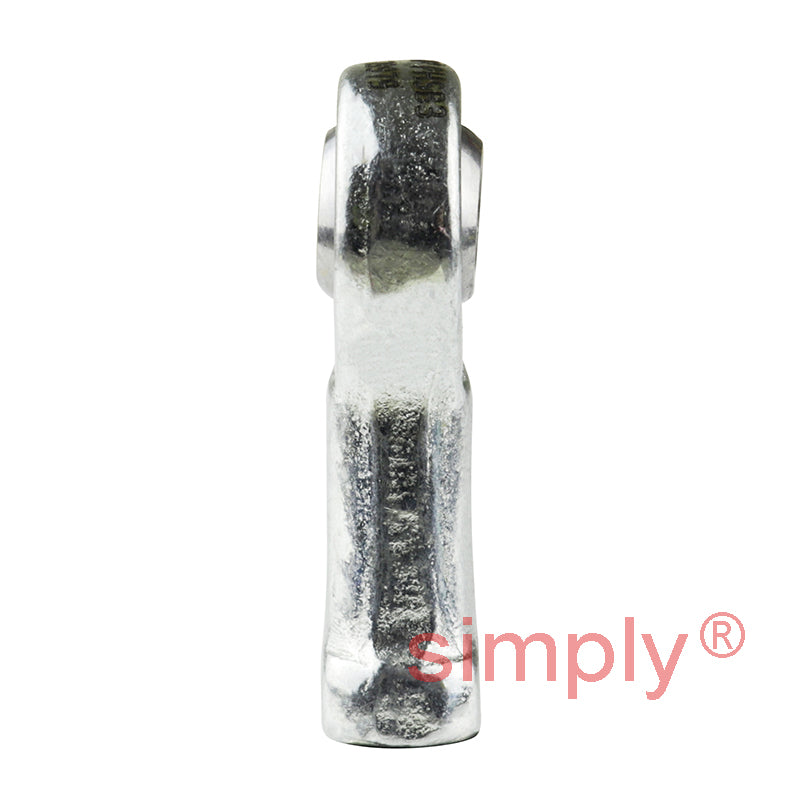

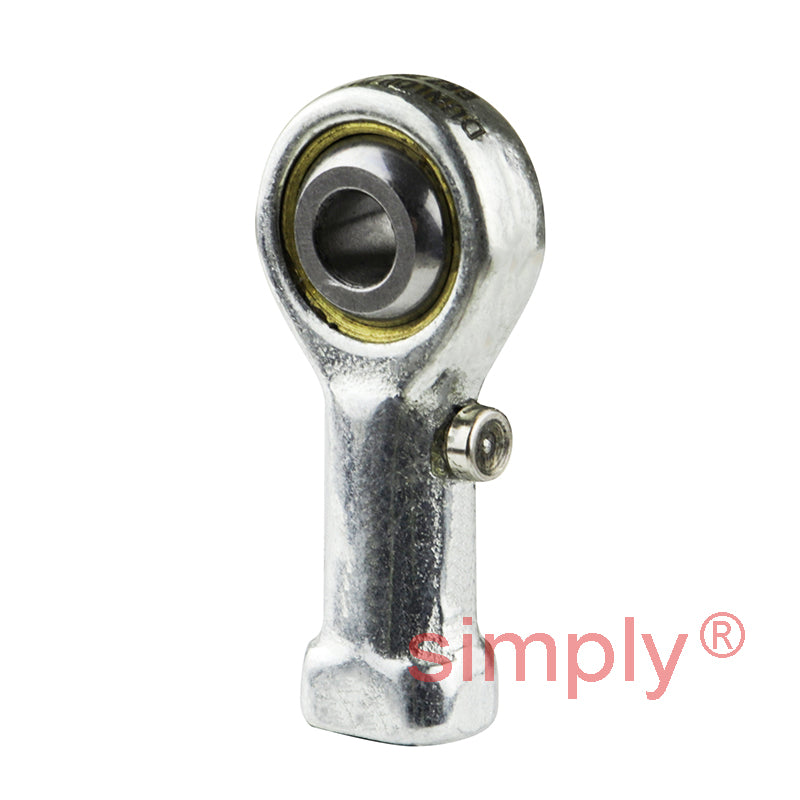

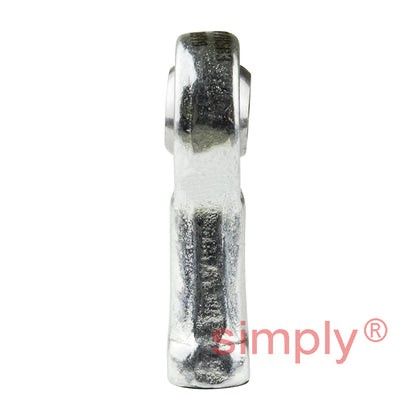

Branded FB-03 Right Hand Imperial Steel / Bronze Lined Maintenance Required Plain Female Rod End 3/16 UNF Thread - Allow 7-10 Days
- Regular price
- $13.85 ex VAT
- Sale price
- $13.85
- Regular price
-
In stock
Quantity Price Breaks
10
$12.33
19
$11.63
29
$11.50
39
$11.36
49
$11.22
74
$11.08
99
$10.39
199
$10.25
249
$10.11
499
$9.97
999
$9.70
SKU:
FB-03-MB
Branded FB-03 Right Hand Imperial Steel / Bronze Lined Maintenance Required Plain Female Rod End 3/16 UNF Thread - Allow 7-10 Days
- Regular price
- $13.85 ex VAT
- Sale price
- $13.85
- Regular price
-
Description
|
FB Series Maintenance Required Female Rod Ends: The FB series are a standard range of maintenance required general purpose female rod ends suitable for medium heavy industrial/mechanical load applications requiring low friction and good wear resistance, available in both metric and imperial bore and thread sizes. Temperature range -34c to +149c Benefits: Low friction, extended wear life |
Technical
| Bore size | = | 3/16 inch |
| Thread | = | 3/16 UNF |
| W | = | 0.312 inch |
| H | = | 0.25 inch |
| D | = | 0.625 inch |
| L1 | = | 1.062 inch |
| L2 | = | 0.562 inch |
| O | = | 0.306 inch |
| AF | = | 0.312 inch |
| Static load | = | 6360 N |
