SKU: FB-04-MB

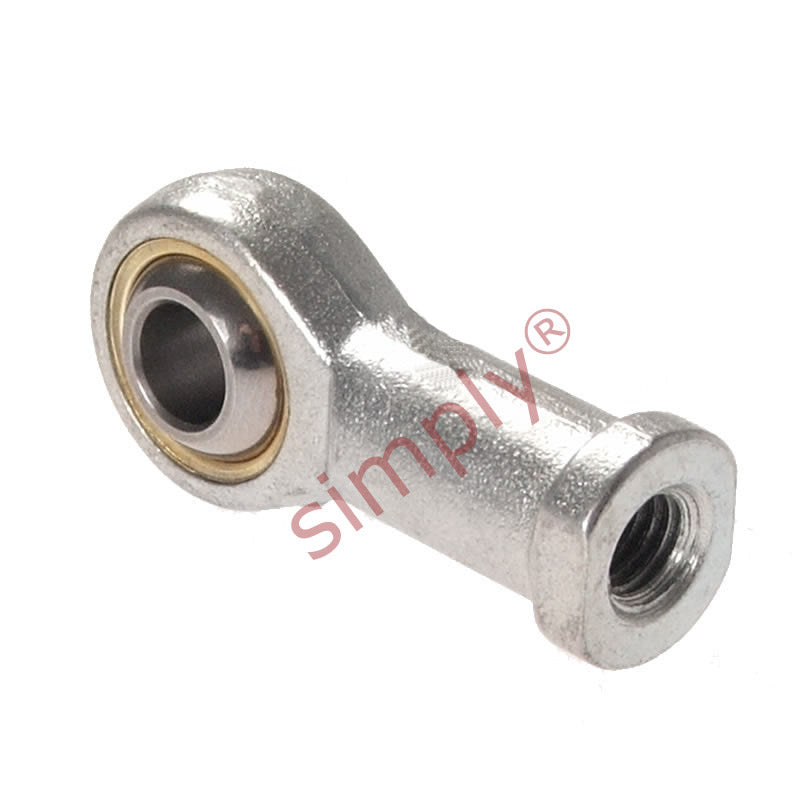

Branded FB-04 Right Hand Imperial Steel / Bronze Lined Maintenance Required Plain Female Rod End 1/4 UNF Thread
- Regular price
- $15.18 ex VAT
- Sale price
- $15.18
- Regular price
-
In stock
Quantity Price Breaks
10
$13.51
19
$12.75
29
$12.60
39
$12.45
49
$12.30
74
$12.14
99
$11.39
199
$11.23
249
$11.08
499
$10.93
999
$10.63
SKU:
FB-04-MB
Branded FB-04 Right Hand Imperial Steel / Bronze Lined Maintenance Required Plain Female Rod End 1/4 UNF Thread
- Regular price
- $15.18 ex VAT
- Sale price
- $15.18
- Regular price
-
Description
|
FB Series Maintenance Required Female Rod Ends: The FB series are a standard range of maintenance required general purpose female rod ends suitable for medium heavy industrial/mechanical load applications requiring low friction and good wear resistance, available in both metric and imperial bore and thread sizes. Temperature range -34c to +149c Benefits: Low friction, extended wear life |
Technical
| Bore size | = | 1/4 inch |
| Thread | = | 1/4 UNF |
| W | = | 0.375 inch |
| H | = | 0.281 inch |
| D | = | 0.75 inch |
| L1 | = | 1.312 inch |
| L2 | = | 0.75 inch |
| O | = | 0.354 inch |
| AF | = | 0.375 inch |
| Static load | = | 6820 N |
