SKU: FB-04S-MB

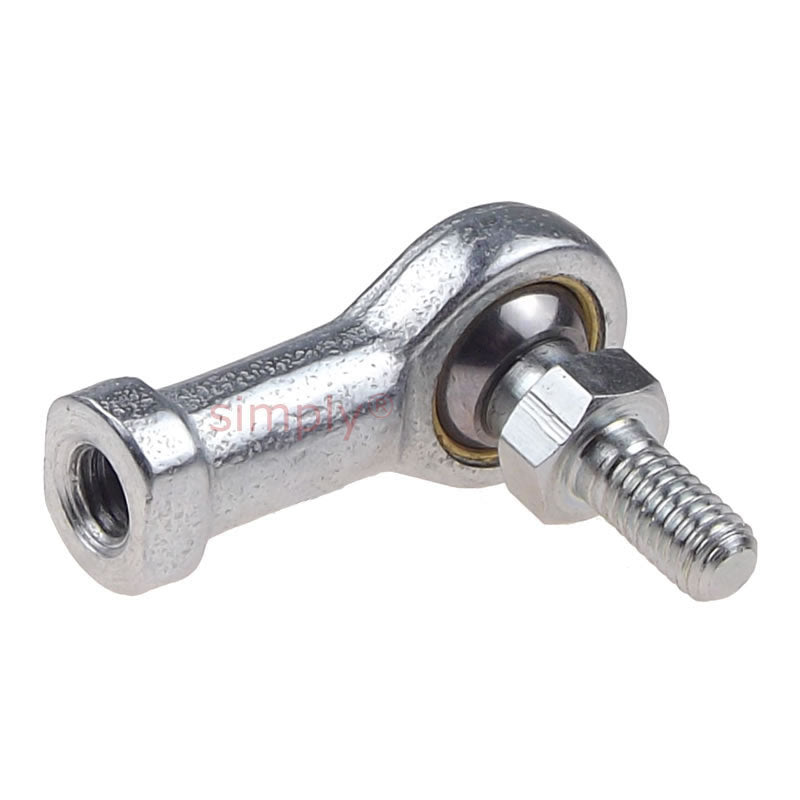

Branded FB-04S Right Hand Imperial Steel / Bronze Lined Maintenance Required Studded Female Rod End 1/4 UNF Thread
- Regular price
- $18.54 ex VAT
- Sale price
- $18.54
- Regular price
-
In stock
Quantity Price Breaks
10
$16.50
19
$15.57
29
$15.39
39
$15.20
49
$15.02
74
$14.83
99
$13.91
199
$13.72
249
$13.53
499
$13.35
999
$12.98
SKU:
FB-04S-MB
Branded FB-04S Right Hand Imperial Steel / Bronze Lined Maintenance Required Studded Female Rod End 1/4 UNF Thread
- Regular price
- $18.54 ex VAT
- Sale price
- $18.54
- Regular price
-
Description
|
FBS Studded Series Maintenance Required Female Rod Ends: These studded FBS series are a standard range of maintenance required general purpose female rod ends suitable for medium heavy industrial/mechanical load applications requiring low friction and good wear resistance, available in both metric and imperial bore and thread sizes. Temperature range -34c to +149c. Stud, steel 230M07PB, zinc plated white and blue passivate (silver/clear). Benefits: Low friction, extended wear life |
Technical
| Stud size | = | 1/4 UNF |
| Thread | = | 1/4 UNF |
| A | = | 0.562 inch |
| B | = | 0.485 inch |
| C | = | 0.5 inch |
| K | = | 0.375 inch |
| Static load | = | 1930 N |
