SKU: FB-05-MB

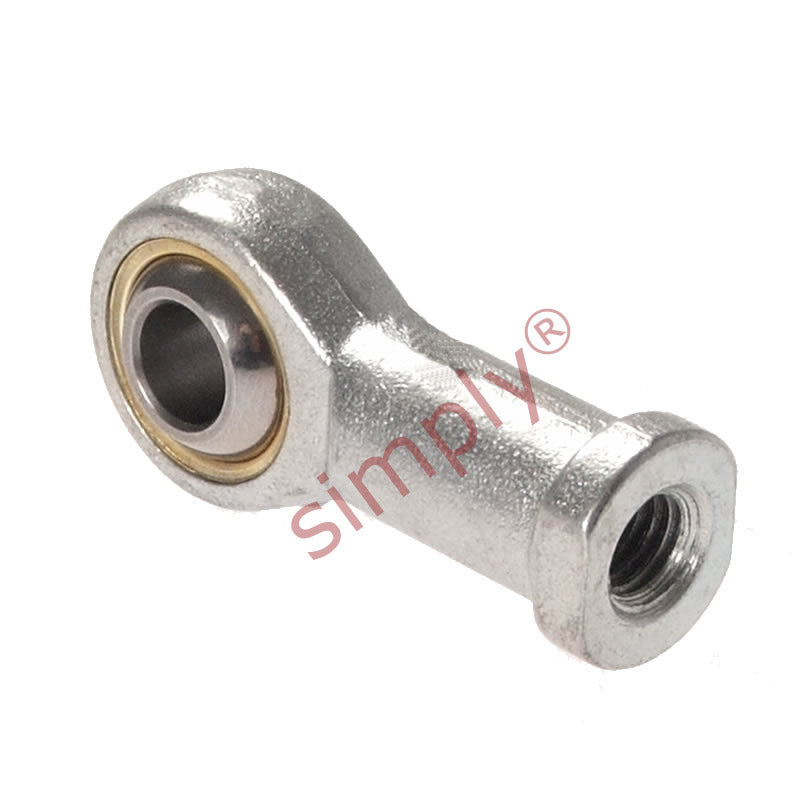

Branded FB-05 Right Hand Imperial Steel / Bronze Lined Maintenance Required Plain Female Rod End 5/16 UNF Thread
- Regular price
- $16.15 ex VAT
- Sale price
- $16.15
- Regular price
-
In stock
Quantity Price Breaks
10
$14.37
19
$13.57
29
$13.40
39
$13.24
49
$13.08
74
$12.92
99
$12.11
199
$11.95
249
$11.79
499
$11.63
999
$11.31
SKU:
FB-05-MB
Branded FB-05 Right Hand Imperial Steel / Bronze Lined Maintenance Required Plain Female Rod End 5/16 UNF Thread
- Regular price
- $16.15 ex VAT
- Sale price
- $16.15
- Regular price
-
Description
|
FB Series Maintenance Required Female Rod Ends: The FB series are a standard range of maintenance required general purpose female rod ends suitable for medium heavy industrial/mechanical load applications requiring low friction and good wear resistance, available in both metric and imperial bore and thread sizes. Temperature range -34c to +149c Benefits: Low friction, extended wear life |
Technical
| Bore size | = | 5/16 inch |
| Thread | = | 5/16 UNF |
| W | = | 0.437 inch |
| H | = | 0.344 inch |
| D | = | 0.875 inch |
| L1 | = | 1.375 inch |
| L2 | = | 0.75 inch |
| O | = | 0.447 inch |
| AF | = | 0.437 inch |
| Static load | = | 10450 N |
