SKU: FB-05-SS-DUN

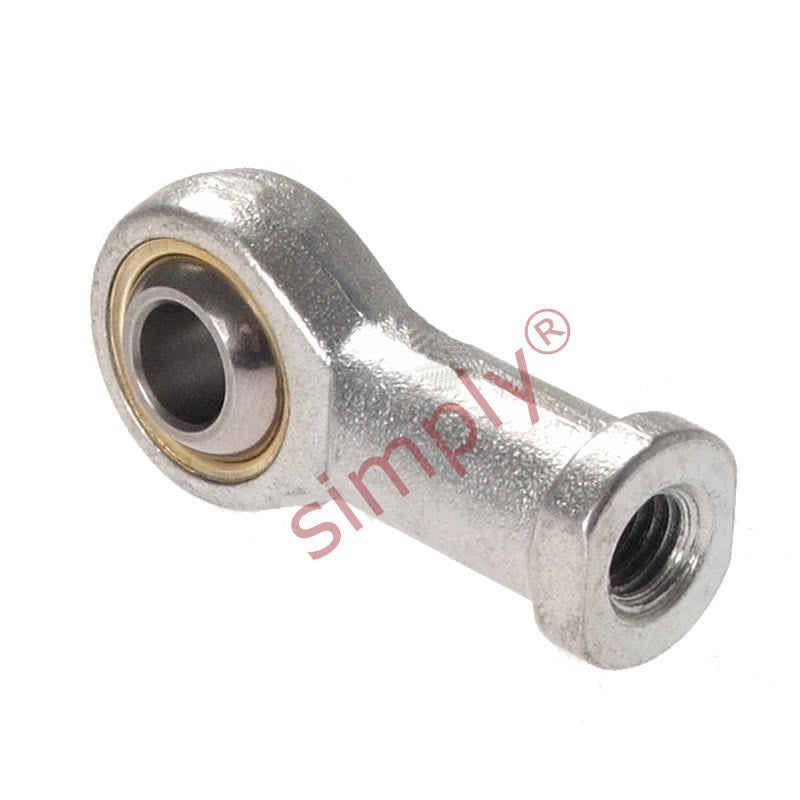

Dunlop FB-05 Right Hand Imperial Stainless Steel / Bronze Lined Maintenance Required Plain Female Rod End 5/16 UNF Thread - Allow 7-10 Days
Dunlop FB-05 Right Hand Imperial Stainless Steel / Bronze Lined Maintenance Required Plain Female Rod End 5/16 UNF Thread - Allow 7-10 Days
Regular price
$33.33
ex VAT
Regular price
Sale price
$33.33
ex VAT
In stock
Description
Description
|
FB Stainless Steel Series Maintenance Required Female Rod Ends: The stainless steel FB series are a standard range of maintenance required general purpose female rod ends suitable for medium heavy industrial/mechanical load applications requiring low friction and good wear resistance, available in both metric and imperial bore and thread sizes. Temperature range -34c to +149c Benefits: Low friction, extended wear life Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. Due to the material requirements of these bearings to have a hard-wearing construction, they will be made of a harder form of Stainless Steel, such as 440 or similar, which will be attracted by magnets. Quotations for non-magnetic versions are available upon request. |
- Brand / Quality:
- Dunlop - High Quality
- Thread Size:
- 5/16 UNF
- Thread M / F:
- Female
- Thread Direction:
- Right Hand
- Material:
- Bronze Lined
Technical
Technical
| Bore size | 5/16 inch |
|---|---|
| Thread | 5/16 UNF |
| W | 0.437 inch |
| H | 0.344 inch |
| D | 0.875 inch |
| L1 | 1.375 inch |
| L2 | 0.75 inch |
| O | 0.447 inch |
| AF | 0.437 inch |
| Static load | 10450 N |
