SKU: FB-05 SS-MB

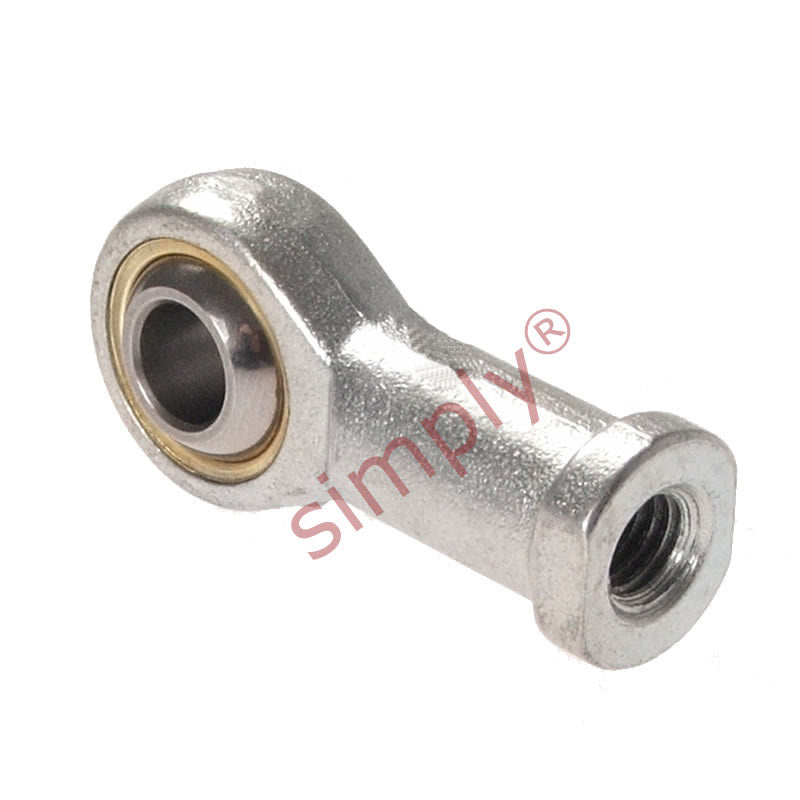

Branded FB-05 Right Hand Imperial Stainless Steel / Bronze Lined Maintenance Required Plain Female Rod End 5/16 UNF Thread - Allow 7-10 Days
- Regular price
- $33.39 ex VAT
- Sale price
- $33.39
- Regular price
-
Not in stock
Quantity Price Breaks
10
$29.72
19
$28.05
29
$27.71
39
$27.38
49
$27.05
74
$26.71
99
$25.04
199
$24.71
249
$24.37
499
$24.04
999
$23.37
SKU:
FB-05 SS-MB
Branded FB-05 Right Hand Imperial Stainless Steel / Bronze Lined Maintenance Required Plain Female Rod End 5/16 UNF Thread - Allow 7-10 Days
- Regular price
- $33.39 ex VAT
- Sale price
- $33.39
- Regular price
-
Description
|
FB Stainless Steel Series Maintenance Required Female Rod Ends: The stainless steel FB series are a standard range of maintenance required general purpose female rod ends suitable for medium heavy industrial/mechanical load applications requiring low friction and good wear resistance, available in both metric and imperial bore and thread sizes. Temperature range -34c to +149c Benefits: Low friction, extended wear life Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. Due to the material requirements of these bearings to have a hard-wearing construction, they will be made of a harder form of Stainless Steel, such as 440 or similar, which will be attracted by magnets. Quotations for non-magnetic versions are available upon request. |
Technical
| Bore size | = | 5/16 inch |
| Thread | = | 5/16 UNF |
| W | = | 0.437 inch |
| H | = | 0.344 inch |
| D | = | 0.875 inch |
| L1 | = | 1.375 inch |
| L2 | = | 0.75 inch |
| O | = | 0.447 inch |
| AF | = | 0.437 inch |
| Static load | = | 10450 N |
