SKU: FB-08-MB

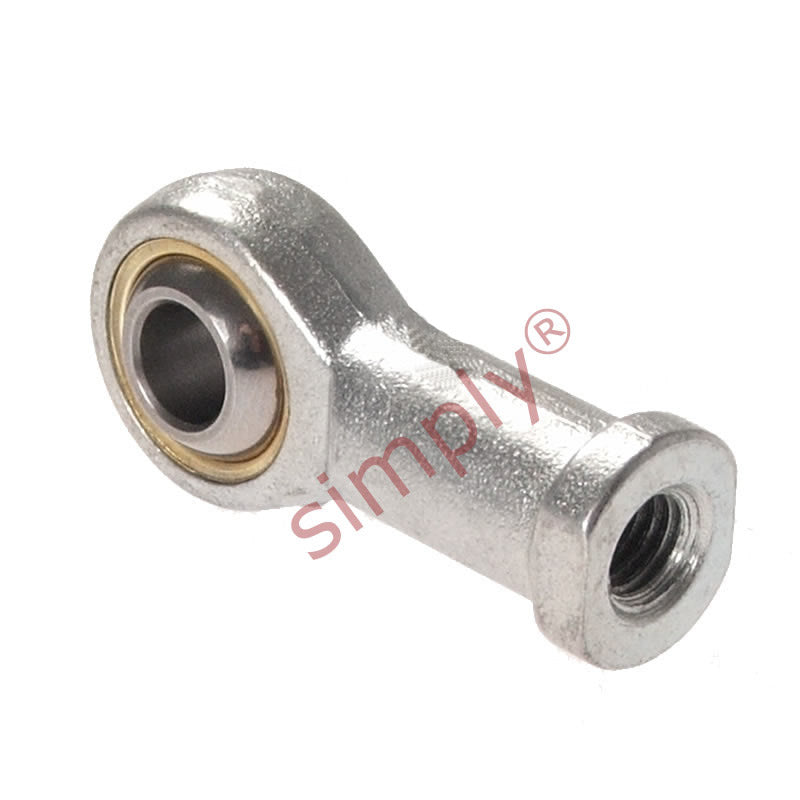

Branded FB-08 Right Hand Imperial Steel / Bronze Lined Maintenance Required Plain Female Rod End 1/2 UNF Thread
- Regular price
- $22.25 ex VAT
- Sale price
- $22.25
- Regular price
-
In stock
Quantity Price Breaks
10
$19.80
19
$18.69
29
$18.47
39
$18.25
49
$18.02
74
$17.80
99
$16.69
199
$16.47
249
$16.24
499
$16.02
999
$15.58
SKU:
FB-08-MB
Branded FB-08 Right Hand Imperial Steel / Bronze Lined Maintenance Required Plain Female Rod End 1/2 UNF Thread
- Regular price
- $22.25 ex VAT
- Sale price
- $22.25
- Regular price
-
Description
|
FB Series Maintenance Required Female Rod Ends: The FB series are a standard range of maintenance required general purpose female rod ends suitable for medium heavy industrial/mechanical load applications requiring low friction and good wear resistance, available in both metric and imperial bore and thread sizes. Temperature range -34c to +149c Benefits: Low friction, extended wear life |
Technical
| Bore size | = | 1/2 inch |
| Thread | = | 1/2 UNF |
| W | = | 0.652 inch |
| H | = | 0.5 inch |
| D | = | 1.312 inch |
| L1 | = | 2.125 inch |
| L2 | = | 1.187 inch |
| O | = | 0.7 inch |
| AF | = | 0.75 inch |
| Static load | = | 19545 N |
